PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

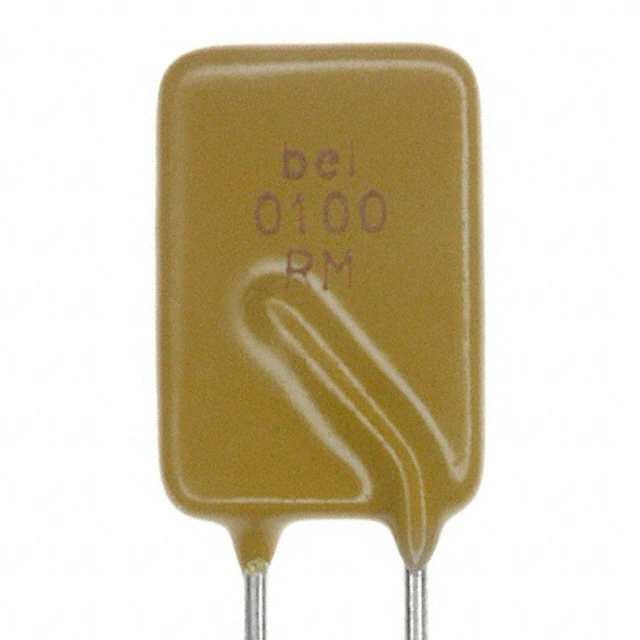

0ZRM0100FF2BPTC RESET FUSE 120V 1A RADIAL |
322 | - |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 1 A | 2 A | 10 A | 15 s | 180 mOhms | 470 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.453" L x 0.161" W (11.50mm x 4.10mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
|
0ZRM0110FF2BPTC RESET FUSE 120V 1.1A RADIAL |
318 | - |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 1.1 A | 2.2 A | 8 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.524" Dia x 0.161" T (13.30mm x 4.10mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
0ZAF0005FF28LINE VOLTAGE RATED SURFACE MOUNT |
550 | - |
|
Datasheet | 2920 (7351 Metric), Concave | - | Tape & Reel (TR) | Active | Polymeric | 240V (250V Int) | 50 mA | 120 mA | 1 A | 15 s | 10 Ohms | 70 Ohms | 55 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.102" (2.60mm) | - |
|
|
0ZAF0008FF28LINE VOLTAGE RATED SURFACE MOUNT |
159 | - |
|
Datasheet | 2920 (7351 Metric), Concave | - | Tape & Reel (TR) | Active | Polymeric | 240V (250V Int) | 80 mA | 190 mA | 1.2 A | 15 s | 6 Ohms | 25 Ohms | 16 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.102" (2.60mm) | - |
|
|
0ZAF0013FF28LINE VOLTAGE RATED SURFACE MOUNT |
608 | - |
|
Datasheet | 2920 (7351 Metric), Concave | - | Tape & Reel (TR) | Active | Polymeric | 240V (250V Int) | 130 mA | 320 mA | 1.2 A | 15 s | 2 Ohms | 12 Ohms | 6 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.102" (2.60mm) | - |
|
|
0ZAF0016FF28LINE VOLTAGE RATED SURFACE MOUNT |
1,418 | - |
|
Datasheet | 2920 (7351 Metric), Concave | - | Tape & Reel (TR) | Active | Polymeric | 240V (250V Int) | 160 mA | 370 mA | 2 A | 15 s | 2 Ohms | 11 Ohms | 6 Ohms | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.102" (2.60mm) | - |
|
0ZSC0260FF1EPTC RESET FUSE 20V 2.6A STRAP |
710 | - |
|
Datasheet | Strap | 0ZSC | Bulk | Active | Polymeric | 20V | 2.6 A | 5.8 A | 100 A | 5 s | 20 mOhms | 63 mOhms | - | -40°C ~ 85°C | - | - | - | User Defined | 0.866" L x 0.205" W (22.00mm x 5.20mm) | - | 0.039" (1.00mm) | - |
|
0ZCM0001FF2GPTC RESET FUSE 60V 10MA 0603 |
2,357 | - |
|
Datasheet | 0603 (1608 Metric), Concave | 0ZCM | Tape & Reel (TR) | Active | Polymeric | 60V | 10 mA | 30 mA | 40 A | 1 s | 15 Ohms | 100 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.063" L x 0.029" W (1.60mm x 0.73mm) | - | 0.033" (0.85mm) | - |
|
|
0ZCK0010AF2GPTC RESET FUSE |
6,316 | - |
|
Datasheet | 0805 (2012 Metric), Concave | 0ZCK | Tape & Reel (TR) | Active | Polymeric | 24V | 100 mA | 300 mA | 100 A | 1.5 s | 700 mOhms | 6 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.039" (1.00mm) | - |
|
0ZCH0150FF2EPTC RESET FUSE 6V 1.5A 1210 |
3,441 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZCH | Tape & Reel (TR) | Active | Polymeric | 6V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.035" (0.90mm) | - |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
