PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRP0135FF1APTC RESET FUSE 60V 1.35A RADIAL |
4,512 | - |
|
Datasheet | Radial, Disc | 0ZRP | Bulk | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 4.5 s | 110 mOhms | 370 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.142" W (10.20mm x 3.60mm) | 0.669" (17.00mm) | - | 0.201" (5.10mm) |
|

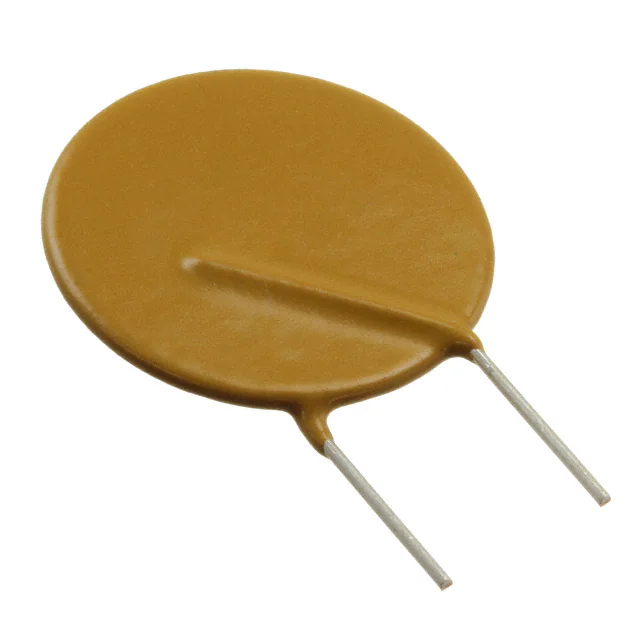

0ZRR0375FF1APTC RESET FUSE 60V 3.75A RADIAL |
1,694 | - |
|
Datasheet | Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 3.75 A | 7.5 A | 40 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 1.122" Dia x 0.122" T (28.50mm x 3.10mm) | 1.319" (33.50mm) | - | 0.402" (10.20mm) |
|
0ZTH0050FF2EPTC RESET FUSE 6V 500MA 1210 |
4,305 | - |
|
Datasheet | 1210 (3225 Metric), Concave | 0ZTH | Tape & Reel (TR) | Active | Polymeric | 6V | 500 mA | 1.5 A | 10 A | 50 ms | 190 mOhms | 900 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.127" L x 0.101" W (3.22mm x 2.58mm) | - | 0.047" (1.20mm) | - |
|
0ZRC0025FF2EPTC RESET FUSE 90V 250MA RADIAL |
4,966 | - |
|
Datasheet | Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
,-Concave.jpg "0ZCF0260FF2C")
|
0ZCF0260FF2CPTC RESET FUSE 6V 2.6A 2920 |
3,182 | - |
|
Datasheet | 2920 (7351 Metric), Concave | 0ZCF | Tape & Reel (TR) | Active | Polymeric | 6V | 2.6 A | 5.2 A | 100 A | 20 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
0ZRR0050FF2EPTC RESET FUSE 60V 500MA RADIAL |
2,818 | - |
|
Datasheet | Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 500 mA | 1 A | 40 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.311" Dia x 0.122" T (7.90mm x 3.10mm) | 0.539" (13.70mm) | - | 0.201" (5.10mm) |
|
0ZRR0040FF2EPTC RESET FUSE 60V 400MA RADIAL |
2,457 | - |
|
Datasheet | Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 400 mA | 800 mA | 40 A | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.299" Dia x 0.122" T (7.60mm x 3.10mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
|
0ZRC0075FF2EPTC RESET FUSE 90V 750MA RADIAL |
2,783 | - |
|
Datasheet | Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 750 mA | 1.5 A | 40 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.122" W (10.40mm x 3.10mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
0ZRA0300FF2DPTC RESET FUSE 16V 3A RADIAL |
2,699 | - |
|
Datasheet | Radial, Disc | 0ZRA | Tape & Reel (TR) | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 2 s | 34 mOhms | 105 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
0ZRB0185FF2EPTC RESET FUSE 30V 1.85A RADIAL |
4,077 | - |
|
Datasheet | Radial, Disc | 0ZRB | Tape & Reel (TR) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
