PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

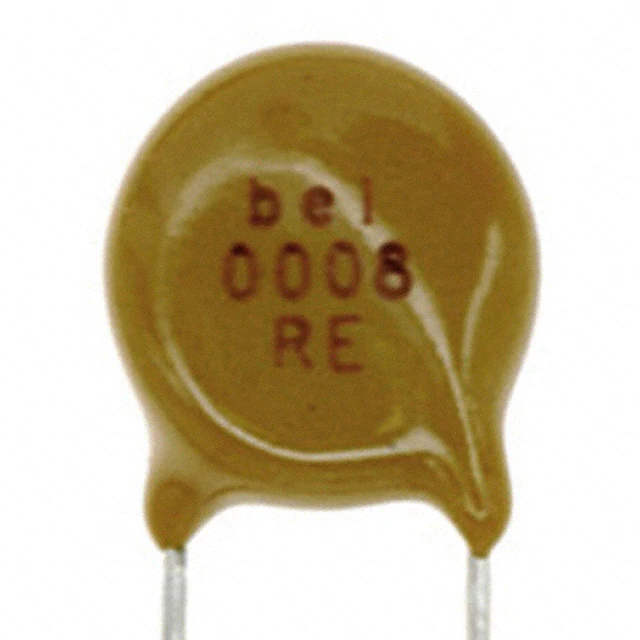

0ZRE0008FF1CPTC RESET FUSE 240V 80MA RADIAL |
4,263 | - |
|
Datasheet | Radial, Disc | 0ZRE | Box | Active | Polymeric | 240V | 80 mA | 190 mA | 1.5 A | 15 s | 7.4 Ohms | 26 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.327" L x 0.150" W (8.30mm x 3.80mm) | 0.421" (10.70mm) | - | 0.201" (5.10mm) |
|
0ZTK0010FF2GPTC RESET FUSE 16V 100MA 0805 |
9,675 | - |
|
Datasheet | 0805 (2012 Metric), Concave | 0ZTK | Tape & Reel (TR) | Active | Polymeric | 16V | 100 mA | 600 mA | 40 A | 1.5 s | 1 Ohms | 12 Ohms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Surface Mount | 0.085" L x 0.053" W (2.15mm x 1.35mm) | - | 0.031" (0.80mm) | - |
|
0ZRR0300FF1APTC RESET FUSE 60V 3A RADIAL |
4,779 | - |
|
Datasheet | Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.980" Dia x 0.122" T (24.90mm x 3.10mm) | 1.181" (30.00mm) | - | 0.402" (10.20mm) |
|
0ZRS0500FF1APTC RESET FUSE 32V 5A RADIAL |
5,926 | - |
|
Datasheet | Radial, Disc | 0ZRS | Bulk | Active | Ceramic | 32V | 5 A | 10 A | 100 A | 9 s | 15 mOhms | 40 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.150" W (14.00mm x 3.80mm) | 0.949" (24.10mm) | - | 0.201" (5.10mm) |
|
0ZRS1000FF1APTC RESET FUSE 32V 10A RADIAL |
4,521 | - |
|
Datasheet | Radial, Disc | 0ZRS | Bulk | Active | Ceramic | 32V | 10 A | 20 A | 100 A | 15 s | 6 mOhms | 16 mOhms | - | -40°C ~ 125°C | Automotive | AEC-Q200 | - | Through Hole | 0.925" L x 0.157" W (23.50mm x 4.00mm) | 1.098" (27.90mm) | - | 0.402" (10.20mm) |
|
0ZCJ0110AF2CPTC RESET FUSE |
9,731 | - |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZCJ | Tape & Reel (TR) | Active | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 180 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.055" (1.40mm) | - |
|

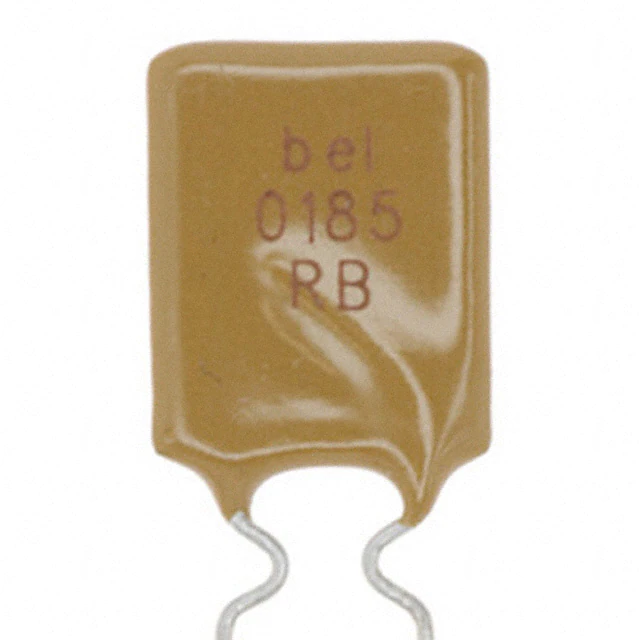

0ZRB0185FF1EPTC RESET FUSE 30V 1.85A RADIAL |
9,381 | - |
|
Datasheet | Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
|
0ZRA0300FF1CPTC RESET FUSE 16V 3A RADIAL |
7,714 | - |
|
Datasheet | Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 3 A | 5.1 A | 100 A | 2 s | 34 mOhms | 105 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.280" L x 0.118" W (7.10mm x 3.00mm) | 0.433" (11.00mm) | - | 0.201" (5.10mm) |
|
0ZRR0160FF1APTC RESET FUSE 60V 1.6A RADIAL |
2,499 | - |
|
Datasheet | Radial, Disc | 0ZRR | Bulk | Active | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.642" Dia x 0.122" T (16.30mm x 3.10mm) | 0.839" (21.30mm) | - | 0.201" (5.10mm) |
|
0ZRB0400FF2BPTC RESET FUSE 30V 4A RADIAL |
7,931 | - |
|
Datasheet | Radial, Disc | 0ZRB | Tape & Reel (TR) | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
