PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

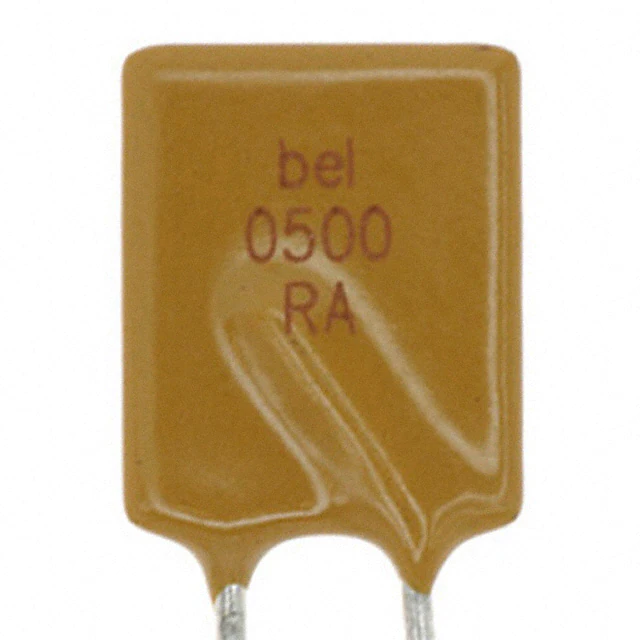

0ZRA0500FF1EPTC RESET FUSE 16V 5A RADIAL |
2,093 | - |
|
Datasheet | Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 5 A | 8.5 A | 100 A | 3.6 s | 14 mOhms | 44 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.409" L x 0.118" W (10.40mm x 3.00mm) | 0.563" (14.30mm) | - | 0.201" (5.10mm) |
|
0ZRG0110FF2EPTC RESET FUSE 30V 1.1A RADIAL |
6,611 | - |
|
Datasheet | Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
|
0ZRG0135FF2EPTC RESET FUSE 30V 1.35A RADIAL |
5,893 | - |
|
Datasheet | Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 4.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
|
0ZRG0160FF2EPTC RESET FUSE 30V 1.6A RADIAL |
7,635 | - |
|
Datasheet | Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
|
0ZRG0185FF2EPTC RESET FUSE 30V 1.85A RADIAL |
2,495 | - |
|
Datasheet | Radial, Disc | 0ZRG | Tape & Reel (TR) | Active | Polymeric | 30V | 1.85 A | 3.7 A | 40 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.118" W (10.20mm x 3.00mm) | 0.618" (15.70mm) | - | 0.201" (5.10mm) |
|
0ZCA0005FF2EPTC RESET FUSE 60V 50MA 1206 |
7,863 | - |
|
Datasheet | 1206 (3216 Metric) | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 50 mA | 150 mA | 10 A | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|
0ZCA0010FF2EPTC RESET FUSE 60V 100MA 1206 |
9,315 | - |
|
Datasheet | 1206 (3216 Metric) | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 100 mA | 250 mA | 10 A | 1 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.033" (0.85mm) | - |
|
|
0ZCA0020FF2EPTC RESET FUSE 30V 200MA 1206 |
4,986 | - |
|
Datasheet | 1206 (3216 Metric) | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 200 mA | 400 mA | 10 A | 50 ms | 600 mOhms | 2.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.030" (0.75mm) | - |
|
|
0ZCA0050FF2GPTC RESET FUSE 8V 500MA 1206 |
2,986 | - |
|
Datasheet | 1206 (3216 Metric) | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 500 mA | 1 A | 40 A | 100 ms | 150 mOhms | 700 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.022" (0.55mm) | - |
|
0ZCB0020FF2EPTC RESET FUSE 30V 200MA 1210 |
5,971 | - |
|
Datasheet | 1210 (3225 Metric) | 0ZCB | Tape & Reel (TR) | Obsolete | Polymeric | 30V | 200 mA | 400 mA | 10 A | 20 ms | 800 mOhms | 5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.127" L x 0.102" W (3.22mm x 2.58mm) | - | 0.033" (0.85mm) | - |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
