PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRC0055FF2EPTC RESET FUSE 90V 550MA RADIAL |
4,071 | - |
|
Datasheet | Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 550 mA | 1.2 A | 40 A | 10 s | 400 mOhms | 1.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" L x 0.122" W (9.70mm x 3.10mm) | 0.551" (14.00mm) | - | 0.201" (5.10mm) |
|
|
0ZRC0030FF2EPTC RESET FUSE 90V 300MA RADIAL |
5,448 | - |
|
Datasheet | Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 300 mA | 600 mA | 40 A | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.512" (13.00mm) | - | 0.201" (5.10mm) |
|
|
0ZRC0035FF2EPTC RESET FUSE 90V 350MA RADIAL |
5,029 | - |
|
Datasheet | Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 350 mA | 750 mA | 40 A | 10 s | 700 mOhms | 2.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.122" W (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|

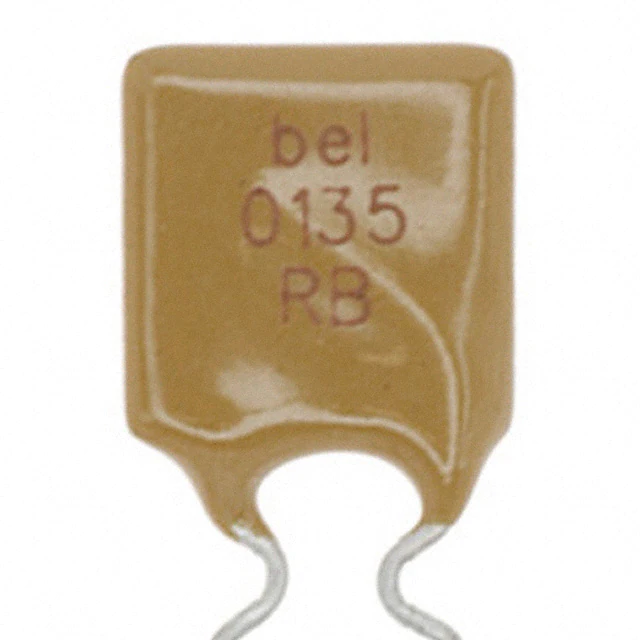

0ZRB0135FF1EPTC RESET FUSE 30V 1.35A RADIAL |
8,916 | - |
|
Datasheet | Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 1.35 A | 2.7 A | 40 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.532" (13.50mm) | - | 0.201" (5.10mm) |
|
0ZRB0110FF2EPTC RESET FUSE 30V 1.1A RADIAL |
6,178 | - |
|
Datasheet | Radial, Disc | 0ZRB | Tape & Reel (TR) | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|

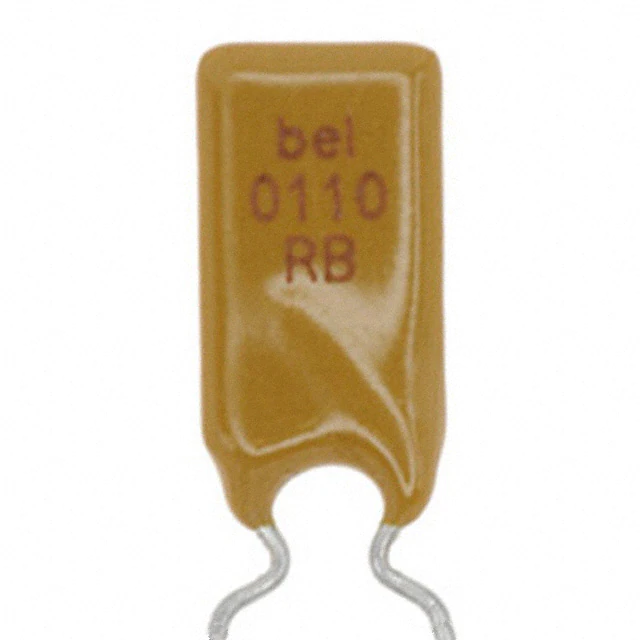

0ZRB0110FF1CPTC RESET FUSE 30V 1.1A RADIAL |
2,142 | - |
|
Datasheet | Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 1.1 A | 2.2 A | 40 A | 6.6 s | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" L x 0.118" W (7.40mm x 3.00mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|

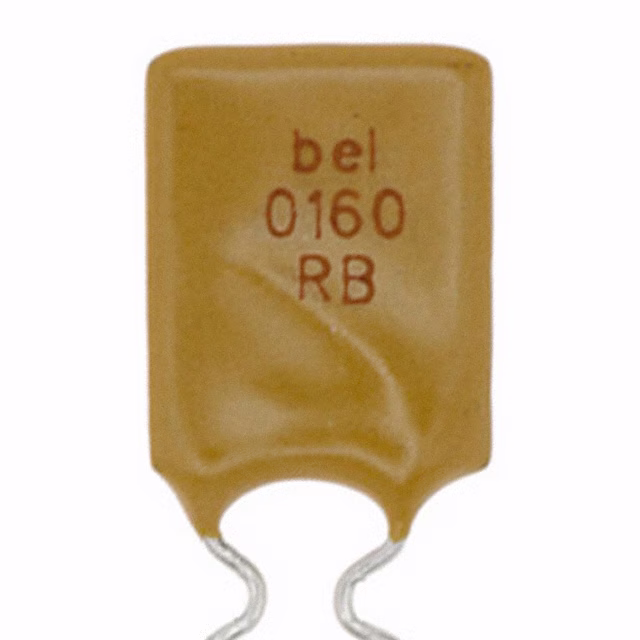

0ZRB0160FF1EPTC RESET FUSE 30V 1.6A RADIAL |
6,177 | - |
|
Datasheet | Radial, Disc | 0ZRB | Box | Active | Polymeric | 30V | 1.6 A | 3.2 A | 40 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.350" L x 0.118" W (8.90mm x 3.00mm) | 0.598" (15.20mm) | - | 0.201" (5.10mm) |
|
0ZRR0010FF2EPTC RESET FUSE 60V 100MA RADIAL |
9,179 | - |
|
Datasheet | Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 100 mA | 200 mA | 40 A | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
0ZRR0017FF2EPTC RESET FUSE 60V 170MA RADIAL |
7,217 | - |
|
Datasheet | Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 170 mA | 340 mA | 40 A | 3 s | 2 Ohms | 8 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
|
0ZRR0025FF2EPTC RESET FUSE 60V 250MA RADIAL |
6,548 | - |
|
Datasheet | Radial, Disc | 0ZRR | Tape & Reel (TR) | Active | Polymeric | 60V | 250 mA | 500 mA | 40 A | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.291" Dia x 0.122" T (7.40mm x 3.10mm) | 0.500" (12.70mm) | - | 0.201" (5.10mm) |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
