PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRB0400FA2BPTC RESET FUSE |
6,466 | - |
|
Datasheet | Radial, Disc | 0ZRB | Tape & Reel (TR) | Active | Polymeric | 30V | 4 A | 8 A | 40 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.791" (20.10mm) | - | 0.201" (5.10mm) |
|
0ZCC0150FF2CPTC RESET FUSE 8V 1.5A 1812 |
3,085 | - |
|
Datasheet | 1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.5 A | 3 A | 100 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
0ZCC0160FF2CPTC RESET FUSE 8V 1.6A 1812 |
2,711 | - |
|
Datasheet | 1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 8V | 1.6 A | 3.2 A | 100 A | 500 ms | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|

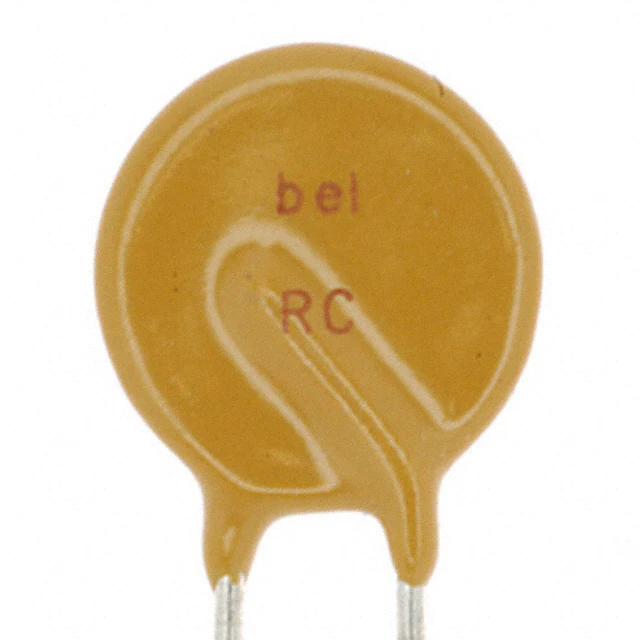

0ZRC0185FF2BPTC RESET FUSE 90V 1.85A RADIAL |
7,309 | - |
|
Datasheet | Radial, Disc | 0ZRC | Tape & Reel (TR) | Active | Polymeric | 90V | 1.85 A | 3.7 A | 40 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.701" L x 0.122" W (17.80mm x 3.10mm) | 0.902" (22.90mm) | - | 0.201" (5.10mm) |
|

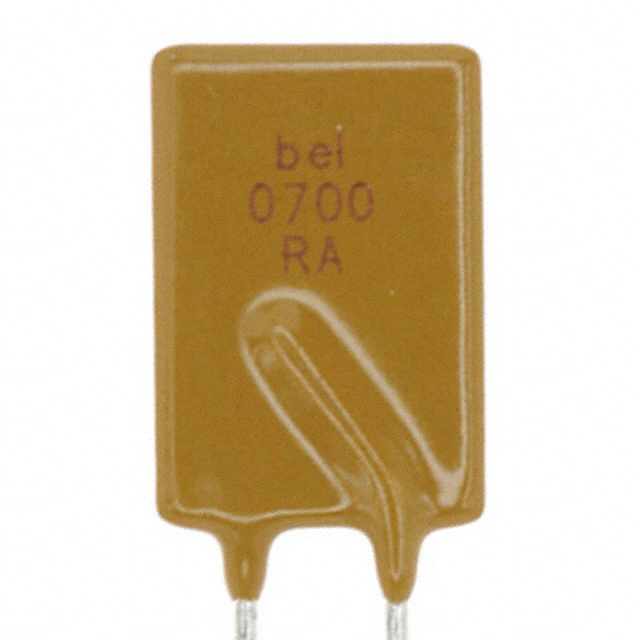

0ZRA0700FF1APTC RESET FUSE 16V 7A RADIAL |
2,984 | - |
|
Datasheet | Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 7 A | 11.9 A | 100 A | 8 s | 6 mOhms | 21 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.441" L x 0.118" W (11.20mm x 3.00mm) | 0.776" (19.70mm) | - | 0.201" (5.10mm) |
|
0ZRM0040FF2CPTC RESET FUSE 120V 400MA RADIAL |
7,096 | - |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 400 mA | 800 mA | 3 A | 6.5 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.323" Dia x 0.150" T (8.20mm x 3.80mm) | 0.559" (14.20mm) | - | 0.201" (5.10mm) |
|
0ZRP0090FF2BPTC RESET FUSE 60V 900MA RADIAL |
7,452 | - |
|
Datasheet | Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 900 mA | 1.8 A | 40 A | 2 s | 190 mOhms | 520 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.310" L x 0.140" W (7.87mm x 3.56mm) | 0.550" (13.97mm) | - | 0.201" (5.10mm) |
|
0ZRP0135FF2BPTC RESET FUSE 60V 1.35A RADIAL |
4,018 | - |
|
Datasheet | Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 1.35 A | 2.7 A | 40 A | 4.5 s | 110 mOhms | 370 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.402" L x 0.150" W (10.20mm x 3.81mm) | 0.669" (17.00mm) | - | 0.201" (5.10mm) |
|
0ZCA0100FF2EPTC RESET FUSE 6V 1A 1206 |
5,260 | - |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1 A | 1.8 A | 100 A | 300 ms | 55 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.039" (1.00mm) | - |
|
|
0ZCA0110FF2EPTC RESET FUSE 6V 1.1A 1206 |
6,103 | - |
|
Datasheet | 1206 (3216 Metric), Concave | 0ZCA | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.1 A | 2.2 A | 100 A | 300 ms | 40 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.128" L x 0.065" W (3.25mm x 1.65mm) | - | 0.039" (1.00mm) | - |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
