PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZRB0500FA1APTC RESET FUSE |
2,290 | - |
|
Datasheet | Radial, Disc | 0ZRB | Bulk | Active | Polymeric | 30V | 5 A | 10 A | 40 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.551" L x 0.118" W (14.00mm x 3.00mm) | 0.980" (24.90mm) | - | 0.402" (10.20mm) |
|
0ZRP0160FF2BPTC RESET FUSE 60V 1.6A RADIAL |
8,017 | - |
|
Datasheet | Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 1.6 A | 3.2 A | 40 A | 9 s | 100 mOhms | 320 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.480" L x 0.150" W (12.20mm x 3.81mm) | 0.720" (18.30mm) | - | 0.201" (5.10mm) |
|
0ZRP0185FF2BPTC RESET FUSE 60V 1.85A RADIAL |
5,808 | - |
|
Datasheet | Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 1.85 A | 3.7 A | 40 A | 12.6 s | 60 mOhms | 250 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.512" L x 0.150" W (13.00mm x 3.81mm) | 0.740" (18.80mm) | - | 0.201" (5.10mm) |
|
0ZCC0050FF2CPTC RESET FUSE 16V 500MA 1812 |
3,121 | - |
|
Datasheet | 1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 500 mA | 1 A | 40 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|

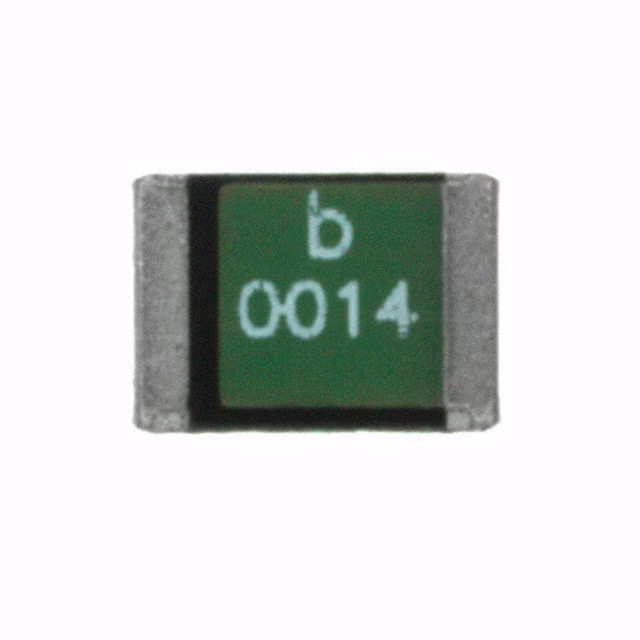

0ZCC0014FF2CPTC RESET FUSE 60V 140MA 1812 |
7,846 | - |
|
Datasheet | 1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 140 mA | 300 mA | 10 A | 8 ms | 1.2 Ohms | 6.5 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
0ZCC0125FF2CPTC RESET FUSE 6V 1.25A 1812 |
3,870 | - |
|
Datasheet | 1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 1.25 A | 2.5 A | 40 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.022" (0.55mm) | - |
|
0ZCE0050FF2EPTC RESET FUSE 6V 500MA 0805 |
9,811 | - |
|
Datasheet | 0805 (2012 Metric), Concave | 0ZCE | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 500 mA | 1 A | 100 A | 100 ms | 150 mOhms | 850 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|
|
0ZCE0075FF2EPTC RESET FUSE 6V 750MA 0805 |
3,445 | - |
|
Datasheet | 0805 (2012 Metric), Concave | 0ZCE | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 750 mA | 1.5 A | 40 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.083" L x 0.053" W (2.10mm x 1.35mm) | - | 0.049" (1.25mm) | - |
|

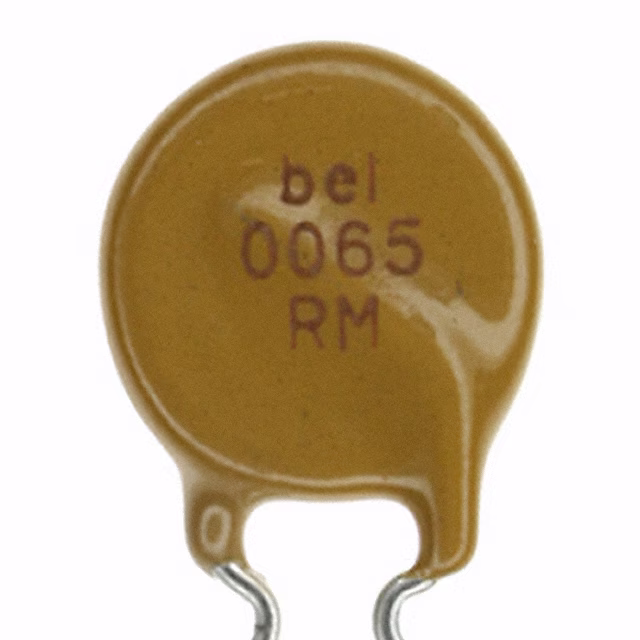

0ZRM0065FF2BPTC RESET FUSE 120V 650MA RADIAL |
9,913 | - |
|
Datasheet | Radial, Disc | 0ZRM | Tape & Reel (TR) | Active | Polymeric | 120V | 650 mA | 1.3 A | 5 A | 5.7 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.382" Dia x 0.150" T (9.70mm x 3.80mm) | 0.587" (14.90mm) | - | 0.201" (5.10mm) |
|

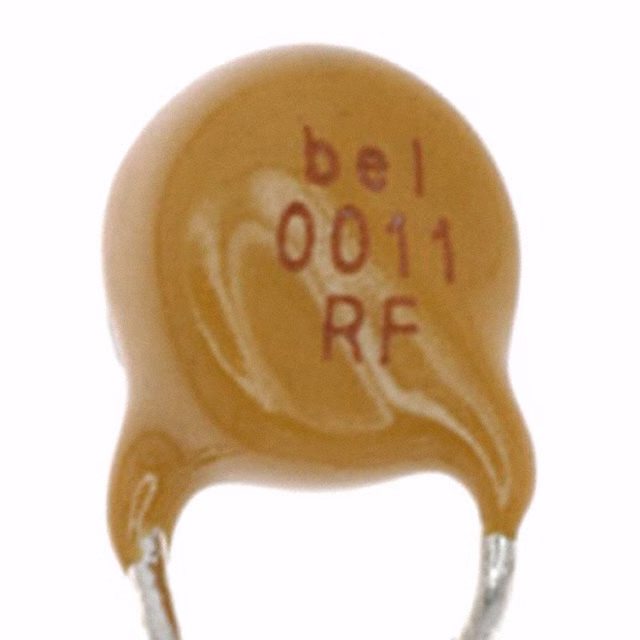

0ZRF0011FF1EPTC RESET FUSE 60V 110MA RADIAL |
8,429 | - |
|
Datasheet | Radial, Disc | 0ZRF | Box | Active | Polymeric | 60V | 110 mA | 400 mA | 3 A | 2 s | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | - | - | Through Hole | 0.268" L x 0.181" W (6.80mm x 4.60mm) | 0.390" (9.90mm) | - | 0.197" (5.00mm) |
PTC Resettable Fuses FAQ
How can I narrow the current PTC Resettable Fuses selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete PTC Resettable Fuses parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
