PTC Resettable Fuses
Compare the current PTC Resettable Fuses Circuit Protection selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Type | Voltage - Max | Current - Hold (Ih) (Max) | Current - Trip (It) | Current - Max | Time to Trip | Resistance - Initial (Ri) (Min) | Resistance - Post Trip (R1) (Max) | Resistance - 25°C (Typ) | Operating Temperature | Grade | Qualification | Ratings | Mounting Type | Size / Dimension | Height - Seated (Max) | Thickness (Max) | Lead Spacing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0ZCD0260FF2CPTC RESET FUSE 6V 2.6A 2920 |
6,476 | - |
|
Datasheet | 2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 2.6 A | 5.2 A | 40 A | 20 s | 20 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
|
0ZCD0300FF2CPTC RESET FUSE 6V 3A 2920 |
7,228 | - |
|
Datasheet | 2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 5.2 A | 40 A | 25 s | 10 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.035" (0.90mm) | - |
|
0ZRP0300FF2APTC RESET FUSE 60V 3A RADIAL |
7,289 | - |
|
Datasheet | Radial, Disc | 0ZRP | Tape & Reel (TR) | Active | Polymeric | 60V | 3 A | 6 A | 40 A | 19.8 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.650" L x 0.118" W (16.50mm x 3.00mm) | 0.835" (21.20mm) | - | 0.201" (5.10mm) |
|

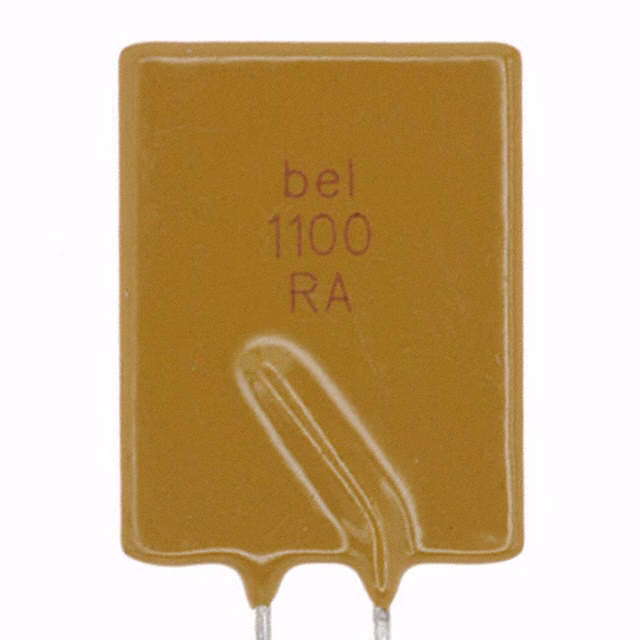

0ZRA1100FF1APTC RESET FUSE 16V 11A RADIAL |
7,724 | - |
|
Datasheet | Radial, Disc | 0ZRA | Box | Active | Polymeric | 16V | 11 A | 18.7 A | 100 A | 13.5 s | 3 mOhms | 10 mOhms | - | -40°C ~ 85°C | Automotive | AEC-Q200 | - | Through Hole | 0.689" L x 0.118" W (17.50mm x 3.00mm) | 1.024" (26.00mm) | - | 0.201" (5.10mm) |
|
|
0ZCD0050FF2CPTC RESET FUSE 60V 500MA 2920 |
2,768 | - |
|
Datasheet | 2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 60V | 500 mA | 1 A | 10 A | 4 s | 300 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCD0110FF2CPTC RESET FUSE 33V 1.1A 2920 |
4,386 | - |
|
Datasheet | 2920 (7351 Metric) | 0ZCD | Tape & Reel (TR) | Obsolete | Polymeric | 33V | 1.1 A | 2.2 A | 40 A | 500 ms | 90 mOhms | 410 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.290" L x 0.202" W (7.36mm x 5.12mm) | - | 0.039" (1.00mm) | - |
|
0ZCC0110AF2CPTC RESET FUSE 16V 1.1A 1812 |
3,625 | - |
|
Datasheet | 1812 (4532 Metric) | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 1.1 A | 2.2 A | 100 A | 500 ms | 40 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.035" (0.90mm) | - |
|
0ZCC0260AF2BPTC RESET FUSE 13.2V 2.6A 1812 |
2,968 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 13.2V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCC0260BF2BPTC RESET FUSE 16V 2.6A 1812 |
9,965 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 16V | 2.6 A | 5 A | 100 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
|
|
0ZCC0300FF2BPTC RESET FUSE 6V 3A 1812 |
6,921 | - |
|
Datasheet | 1812 (4532 Metric), Concave | 0ZCC | Tape & Reel (TR) | Obsolete | Polymeric | 6V | 3 A | 5 A | 100 A | 4 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | - | - | Surface Mount | 0.179" L x 0.128" W (4.55mm x 3.24mm) | - | 0.061" (1.55mm) | - |
