Pulse Transformers

Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
B82804A0474A125 PULSE XFMR 2.5:1 473UH EPCOS - TDK Electronics	9,629	-	RFQ	Datasheet	EP5	Tape & Reel (TR)	Active	Gate Drive	473µH	30.6VµS	2.5:1	Surface Mount	0.264" L x 0.240" W (6.70mm x 6.10mm)	0.213" (5.40mm)	-40°C ~ 125°C	-	-
B82804A0694A115 PULSE XFMR 1.5:1 690UH EPCOS - TDK Electronics	6,283	-	RFQ	Datasheet	EP5	Tape & Reel (TR)	Active	Gate Drive	690µH	40.8VµS	1.5:1	Surface Mount	0.264" L x 0.240" W (6.70mm x 6.10mm)	0.213" (5.40mm)	-40°C ~ 125°C	-	-
PA3855.006NL PULSE XFMR 21UH Pulse Electronics	1,355	-	RFQ	Datasheet	-	Tray	Active	-	21µH	-	-	Surface Mount	0.571" L x 0.695" W (14.50mm x 17.65mm)	0.551" (14.00mm)	-40°C ~ 130°C	-	-
750510682 DIGITAL TRANSFORMER Würth Elektronik	1,156	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	1µH	-	1:1	Surface Mount	-	0.520" (13.20mm)	-	-	-
HM2106NL XFMR MODULE AECQ BATT MNGT Pulse Electronics	873	-	RFQ	Datasheet	-	Tube	Active	-	135µH	-	-	Surface Mount	0.335" L x 0.663" W (8.50mm x 16.84mm)	0.226" (5.75mm)	-	-	-
PE-65351NL XFRMR T1/CEPT/ISDN-PRI 1:2CT T/H Pulse Electronics	1,124	-	RFQ	Datasheet	-	Tube	Active	T1/E1 (Single)	1.2mH	-	1:2CT	Through Hole	0.500" L x 0.350" W (12.70mm x 8.89mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
HM2146NL XFMR SGL 1CT:1CT 150UH 3KV Pulse Electronics	438	-	RFQ	Datasheet	-	Tube	Active	-	150µH	-	1:1	Surface Mount	0.478" L x 0.354" W (12.15mm x 9.00mm)	0.126" (3.20mm)	-40°C ~ 125°C	-	-
HM2147NL XFMR SGL 1CT:1CT 500UH 4.3KV Pulse Electronics	297	-	RFQ	Datasheet	-	Tube	Active	-	500µH	-	1:1	Surface Mount	0.478" L x 0.354" W (12.15mm x 9.00mm)	0.126" (3.20mm)	-40°C ~ 125°C	-	-
BMU6201NL TRANSFORMER 5UH 1:1:1 500V SMT Pulse Electronics	526	-	RFQ	Datasheet	-	Tube	Active	-	5µH	-	1:1:1	Surface Mount	0.295" L x 0.198" W (7.49mm x 5.03mm)	0.155" (3.94mm)	-40°C ~ 125°C	-	-
PH9185.043NLT TRANSFORMER 1260UH 4:3 SMD Pulse Electronics	357	-	RFQ	Datasheet	PH9185	Tape & Reel (TR)	Active	-	-	-	-	Surface Mount	0.394" L x 0.394" W (10.00mm x 10.00mm)	0.492" (12.50mm)	-	-	-
PA3855.005NL PULSE XFMR 21UH Pulse Electronics	1,324	-	RFQ	Datasheet	-	Tray	Active	-	21µH	-	-	Surface Mount	0.571" L x 0.695" W (14.50mm x 17.65mm)	0.551" (14.00mm)	-40°C ~ 130°C	-	-
E2458NL XFRMR ISOL 10BASE-T 1:1.41 SMD Pulse Electronics	560	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	160µH, 160µH	-	1CT:1.41CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.241" (6.12mm)	0°C ~ 70°C	-	-
PE-65745NL XFRMR LAN ISOL 1CT:1.414CT 10B-T Pulse Electronics	1,023	-	RFQ	Datasheet	-	Tube	Active	Isolation and Data Interface (Encapsulated)	140µH	-	1CT:1.414CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.285" W (12.70mm x 7.24mm)	0.210" (5.33mm)	0°C ~ 70°C	-	-
ALAN310001-3J61DT XFRMR LAN 1CT:1CT 350UH Abracon LLC	361	-	RFQ	Datasheet	ALAN310001	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.724" L x 0.490" W (18.38mm x 12.44mm)	0.254" (6.45mm)	-40°C ~ 85°C	-	-
H1260FNLT PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	1,800	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
PA2369NLT PULSE XFMR 37UH Pulse Electronics	3,112	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	-	37µH	-	-	Surface Mount	0.551" L x 0.516" W (14.00mm x 13.11mm)	0.485" (12.32mm)	-40°C ~ 130°C	-	-
C2267FNL PULSE XFMR 1:1 15UH Pulse Electronics	1,453	-	RFQ	Datasheet	-	Tube	Active	-	15µH	-	1:1	Surface Mount	0.386" L x 0.354" W (9.80mm x 9.00mm)	0.425" (10.80mm)	0°C ~ 70°C	-	-
749023310 WE-LAN AQ 10/100/1000 BASE-T SMT Würth Elektronik	818	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	180µH	-	1:1	Surface Mount	0.650" L x 0.406" W (16.50mm x 10.30mm)	0.161" (4.10mm)	-40°C ~ 105°C	-	-
749013310 WE-LAN AQ 10/100 BASE-T SMT TRAN Würth Elektronik	234	-	RFQ	Datasheet	WE-LAN	Tape & Reel (TR)	Active	LAN 10/100 Base-T, Power over Ethernet (PoE)	180µH	-	1:1	Surface Mount	0.500" L x 0.341" W (12.70mm x 8.67mm)	0.157" (4.00mm)	-40°C ~ 85°C	-	-

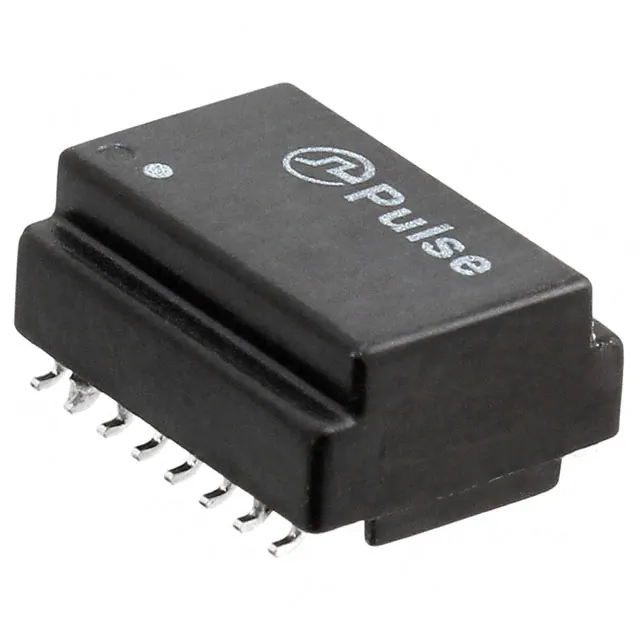

HX2260FNLT PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	2,243	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.500" L x 0.358" W (12.70mm x 9.09mm)	0.236" (5.99mm)	-40°C ~ 85°C	-	-
