Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
750510185XFRM VX180-IFE6 POTS DAUGHTERBRD |
427 | - |
|
Datasheet | MID-DSLIKN | Tape & Reel (TR) | Active | VDSL | 400µH | - | 1:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.415" (10.54mm) | -40°C ~ 85°C | - | - |
|
PE-65728NLTRANSFMR AUI ETHERNET LAN 16SOIC |
483 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 | Surface Mount | 0.500" L x 0.285" W (12.70mm x 7.24mm) | 0.210" (5.33mm) | 0°C ~ 70°C | - | - |
|
H1260NLTXFRMR MODULE 1PORT 1:1 10/100 |
1,430 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
PA2649NLTRANSFMR 33-57VIN 12VOUT 2.5ASMD |
3,852 | - |
|
Datasheet | - | Tray | Active | - | 100.5µH | - | - | Surface Mount | 0.690" L x 0.529" W (17.53mm x 13.44mm) | 12.45mm | -40°C ~ 130°C | - | - |
|
HM1238NLXFMR CMC MODULE AECQ BATT MNGT |
667 | - |
|
Datasheet | - | Tube | Active | - | 300µH | - | 1:1 | Surface Mount | 0.413" L x 0.330" W (10.50mm x 8.38mm) | 0.167" (4.25mm) | - | - | - |
|
ISNA-0249-D104ISNA PULSE TRANSFORMER SMD 0.1A |
103 | - |
|
Datasheet | IS | Bulk | Active | SCR and Triac Trigger (Encapsulated) | 3.5mH | 300VµS | 1:1 | Surface Mount | 0.701" L x 0.717" W (17.80mm x 18.20mm) | 0.532" (13.50mm) | -25°C ~ 100°C | - | - |
|
ALANL100X1-EF62DT10/100BASE-TX LAN XFMR |
3,627 | - |
|
Datasheet | ALANL100X1-E | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.500" L x 0.280" W (12.70mm x 7.11mm) | 0.085" (2.16mm) | -40°C ~ 85°C | - | - |
|
PH9572.122ANLTGDT, FUNCTIONAL, EP7, SMT |
11,803 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | 1mH | 42.4VµS | - | Surface Mount | 0.402" L x 0.295" W (10.20mm x 7.50mm) | 0.433" (11.00mm) | -40°C ~ 125°C | - | - |
|
|
PH9572.322ANLTGDT, FUNCTIONAL, EP7, SMT |
10,026 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Gate Drive | - | - | - | Surface Mount | - | - | - | - | - |
|
PM2155.011NLTXFMR PUSH-PULL SIDE CAR S NPB |
681 | - |
|
Datasheet | PM2155.XXXNLT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 3.2mH | 109VµS | 1CT:1CT | Surface Mount | 0.630" L x 0.591" W (16.00mm x 15.00mm) | 0.295" (7.50mm) | -40°C ~ 125°C | - | - |
|
S558-5999-46-FMODULE XFRMR LAN 10/100B-TX SMD |
907 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 420µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.000" L x 0.390" W (25.40mm x 9.91mm) | 0.235" (5.97mm) | 0°C ~ 70°C | - | - |
|
|
PA2417NLPULSE XFMR 530UH |
2,230 | - |
|
Datasheet | - | Tray | Active | - | 530µH | - | - | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
|
PA1138NLTXFRMR 12V 13.5W 127UH POE EP13 |
1,410 | - |
|
Datasheet | EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 127µH | - | 1:0.292:0.208 | Surface Mount | 0.551" L x 0.695" W (14.00mm x 17.65mm) | 0.500" (12.70mm) | -40°C ~ 125°C | - | - |
|
PM2190.034NLTXFMR PWR .750 UH EP7 SM NPB |
1,137 | - |
|
Datasheet | PM2190.XXXNL | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 750µH | 66VµS | 3CT:4CT | Surface Mount | 0.394" L x 0.394" W (10.00mm x 10.00mm) | 0.492" (12.50mm) | -40°C ~ 125°C | - | - |
_R1022NL(T)_iNRCORE_Product-Image.jpg "R1003NL")
|
R1003NLXFRMR ETHERNET MOD IND 10/100B-T |
679 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.510" L x 0.280" W (12.95mm x 7.11mm) | 0.245" (6.22mm) | -40°C ~ 85°C | - | - |
|
|
HM2147NLTXFMR SGL 1CT:1CT 500UH 4.3KV |
2,590 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 500µH | - | 1:1 | Surface Mount | 0.478" L x 0.354" W (12.15mm x 9.00mm) | 0.126" (3.20mm) | -40°C ~ 125°C | - | - |
|
|
PA1131NLTXFRMR 5.0V 3W 500UH POE EP7 SMD |
260 | - |
|
Datasheet | EP7 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 500µH | - | 1:0.125:0.208 | Surface Mount | 0.420" L x 0.525" W (10.67mm x 13.34mm) | 0.365" (9.27mm) | -40°C ~ 125°C | - | - |
|

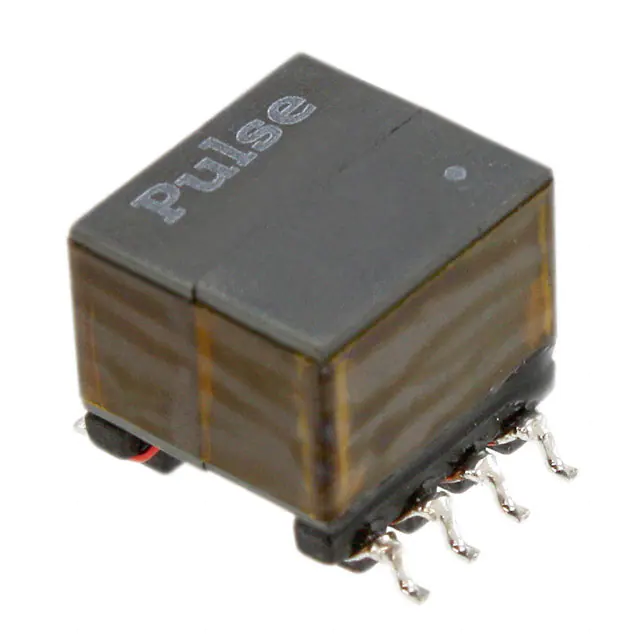

PA1134NLTXFRMR 5V 7W 253UH POE EP10 SMD |
1,431 | - |
|
Datasheet | EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 253µH | - | 1:0.125:0.208 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|

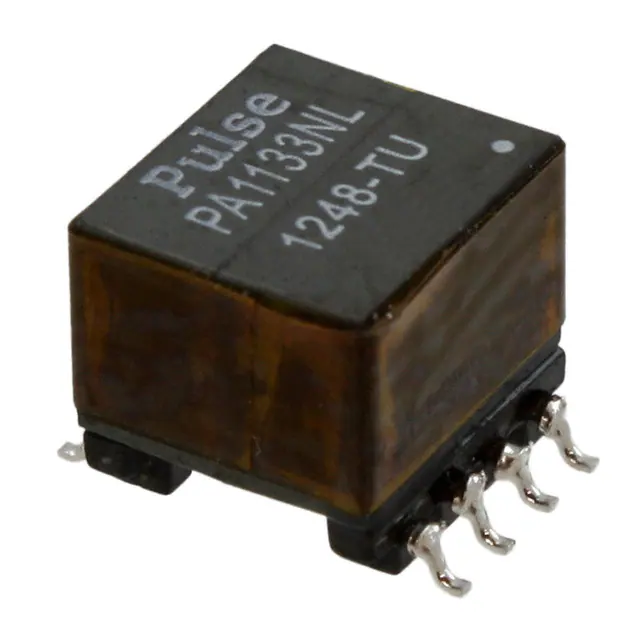

PA1133NLTXFRMR 3.3V 7W 253UH POE EP10 SMD |
562 | - |
|
Datasheet | EP10 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 253.4µH | - | 1:0.083:0.208 | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
|
PA1260NLTXFRMR 5V 13.5W 77.4UH POE EP13 |
259 | - |
|
Datasheet | EP13 | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 77.4µH | - | 1:0.273:0.682 | Surface Mount | 0.551" L x 0.516" W (14.00mm x 13.11mm) | 0.485" (12.32mm) | -40°C ~ 130°C | - | - |
Pulse Transformers FAQ
What Pulse Transformers components can I source from EGOO?
You can browse available Pulse Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Pulse Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
