Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
760301107XFRMR GATE DRIVE 1.5:1 SMD |
280 | - |
|
Datasheet | WE-GDT | Tape & Reel (TR) | Active | Gate Drive | 650µH | 40.8VµS | 1.5:1 | Surface Mount | 0.276" L x 0.335" W (7.00mm x 8.50mm) | 0.236" (6.00mm) | -40°C ~ 125°C | - | - |
|
7490140122BXFMR LAN 10/100 BASE-T 1:1 350UH |
719 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1 | Surface Mount | 0.673" L x 0.581" W (17.10mm x 14.75mm) | 0.331" (8.40mm) | -40°C ~ 85°C | - | - |
|
749052051XFRMR LAN 10G BASE-T 1:1 120UH |
164 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 10G Base-T | 120µH | - | 1:1 | Surface Mount | 0.720" L x 0.579" W (18.29mm x 14.70mm) | 0.346" (8.80mm) | -40°C ~ 85°C | - | - |
|
7490220115XFRMR LAN 1CT:1CT 350UH |
400 | - |
|
Datasheet | WE-LAN | Tape & Reel (TR) | Active | LAN 1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.720" L x 0.480" W (18.30mm x 12.20mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
74930120WE-STST SMT SUPER TINY SIGNAL TR |
596 | - |
|
Datasheet | WE-STST | Tape & Reel (TR) | Active | - | 110µH | - | 1:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 105°C | - | - |
|
749302010XFRMR 1:4.5:4.5:1 300UH SMD |
3,804 | - |
|
Datasheet | WE-STST | Tape & Reel (TR) | Active | - | 300µH | - | 1:4.5:4.5:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 105°C | - | - |
|

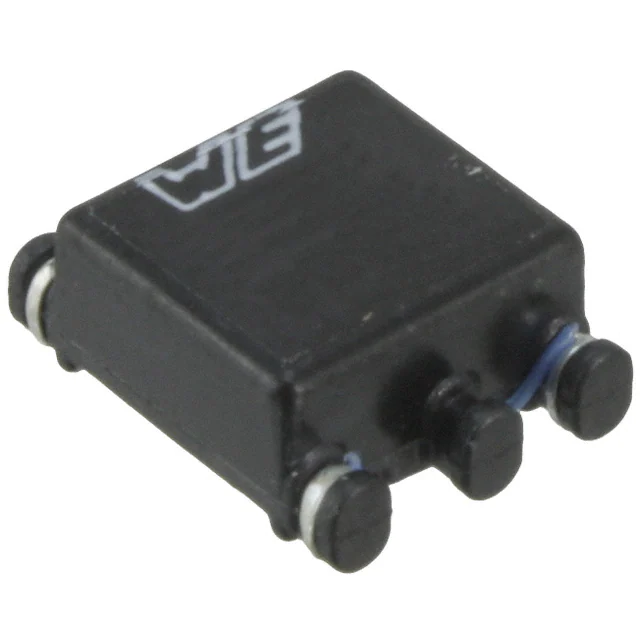

750110056TRANSFORMER 70/80UH SMD |
3,201 | - |
|
Datasheet | WE-AMT, MID-PMA | Tape & Reel (TR) | Active | Data/Voice Coupling | 70µH | - | 1.08:1 | Surface Mount | 0.265" L x 0.340" W (6.73mm x 8.64mm) | 0.140" (3.55mm) | -20°C ~ 85°C | - | - |
|
74941301WE-BMS SMT TRANSFORMER -40C TO + |
620 | - |
|
Datasheet | WE-BMS | Tape & Reel (TR) | Active | General Purpose | 150µH | - | 1:1 | Surface Mount | 0.350" L x 0.299" W (8.90mm x 7.60mm) | 0.217" (5.50mm) | -40°C ~ 125°C | - | - |
|
750510185XFRM VX180-IFE6 POTS DAUGHTERBRD |
427 | - |
|
Datasheet | MID-DSLIKN | Tape & Reel (TR) | Active | VDSL | 400µH | - | 1:1 | Surface Mount | 0.385" L x 0.360" W (9.78mm x 9.14mm) | 0.415" (10.54mm) | -40°C ~ 85°C | - | - |
|

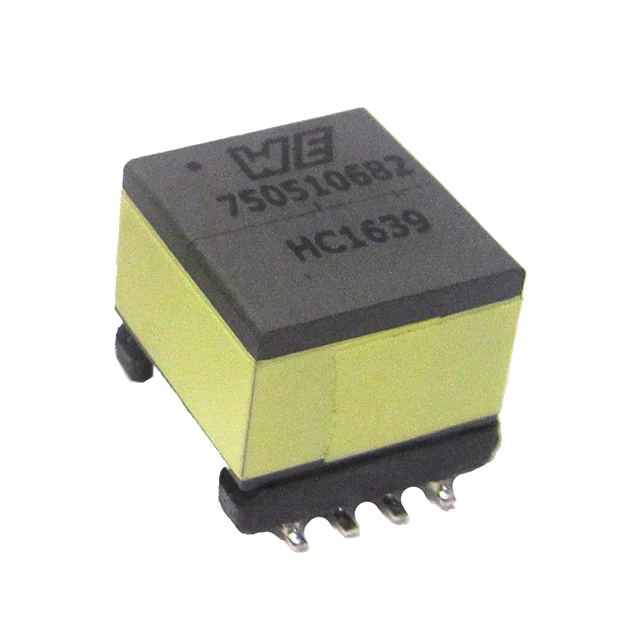

750510682DIGITAL TRANSFORMER |
1,156 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | 1µH | - | 1:1 | Surface Mount | - | 0.520" (13.20mm) | - | - | - |
