Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H5200NLMODULE XFORMR DUAL GIGABIT SMD |
108 | - |
|
Datasheet | - | Tray | Active | - | - | - | 1CT:1CT | Surface Mount | 0.580" L x 0.680" W (14.73mm x 17.27mm) | 0.430" (10.92mm) | 0°C ~ 70°C | - | - |
|
HX6136HLTMODULE DUAL GIGABIT ETHERNET 50P |
500 | - |
|
Datasheet | HX6136HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX6136HLMODULE DUAL GIGABIT ETHERNET 50P |
180 | - |
|
Datasheet | HX6136HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX5020HLMODULE DUAL GIGABIT ETHERNET 50P |
170 | - |
|
Datasheet | HX5020HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX6135HLTMODULE DUAL GIGABIT ETHERNET 50P |
500 | - |
|
Datasheet | HX6135HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
TX1193NLTMODULE 1CT:2CT 1.2MH SMD |
748 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | T1/E1 (Dual) | 1.2mH | - | 1CT:2CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.690" L x 0.480" W (17.53mm x 12.20mm) | 0.227" (5.76mm) | -40°C ~ 85°C | - | - |
|
|
HX6135HLMODULE DUAL GIGABIT ETHERNET 50P |
180 | - |
|
Datasheet | HX6135HL | Tube | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
HX5020HLTMODULE DUAL GIGABIT ETHERNET 50P |
487 | - |
|
Datasheet | HX5020HLT | Tape & Reel (TR) | Active | Power over Ethernet (PoE) | 350µH | - | 1:1 | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|
|
TM5020NLRLAN XFMR 1G BASE-T DUAL |
2,799 | - |
|
Datasheet | Exos | Tape & Reel (TR) | Active | LAN 1000 Base-T, Power over Ethernet (PoE) | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.297" W (27.94mm x 7.54mm) | 0.328" (8.33mm) | -40°C ~ 85°C | - | - |
|

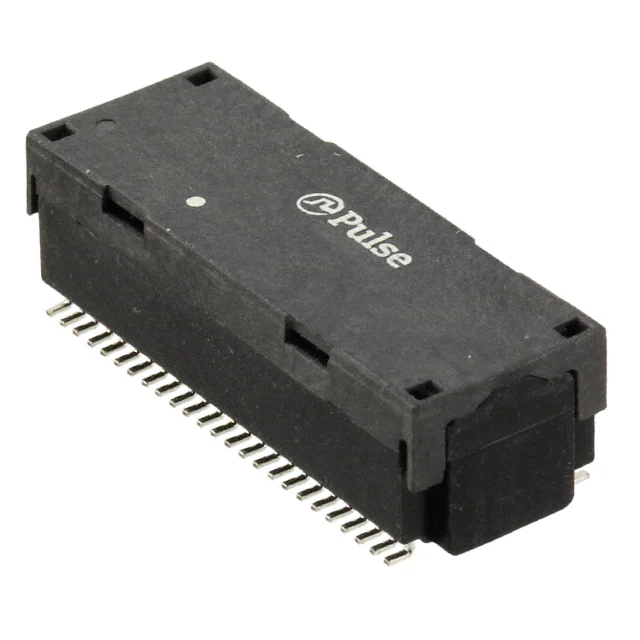

HX5020FNLTPULSE XFMR 1 CT:1CT TX/RX 350UH |
805 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 1.100" L x 0.395" W (27.94mm x 10.03mm) | 0.340" (8.64mm) | -40°C ~ 85°C | - | - |
|
H6080NLTXFRMR MODUL GIGABT 2PORT POE 1:1 |
179 | - |
|
Datasheet | Star Magnetics™ | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | - | - | 1:1 Transmitter, 1:1 Receiver | Surface Mount | 1.095" L x 0.480" W (27.81mm x 12.19mm) | 0.295" (7.49mm) | 0°C ~ 70°C | - | - |
|
|
TM82453NLLAN XFMR 1G BASE-T SINGLE |
2,800 | - |
|
Datasheet | Exos | Tape & Reel (TR) | Active | LAN 1000 Base-T | 320µH | - | 1CT:1CT Transmitter, 1CT:1CT Receiver | Surface Mount | 0.614" L x 0.343" W (15.60mm x 8.70mm) | 0.094" (2.39mm) | 0°C ~ 70°C | - | - |
|
2337824-4DISCRETE ETHERNET MAGNETICS DUAL |
1,400 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | Surface Mount | - | - | -40°C ~ 105°C | - | - |
|
10GB-6014TLAN MODULE XFRMR 10GBASE-T SMD |
777 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T | - | - | - | Surface Mount | 0.605" L x 0.547" W (15.37mm x 13.89mm) | 0.255" (6.47mm) | -40°C ~ 125°C | - | - |
|
10GB-6013TLAN MODULE XFRMR 10GBASE-T SMD |
394 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -40°C ~ 85°C | - | - |
|
10GB-6011NLTLAN MODULE XFRMR 10GBASE-T SMD |
290 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -40°C ~ 85°C | - | - |
|
|
10GB-6011TLAN MODULE XFRMR 10GBASE-T SMD |
300 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -40°C ~ 85°C | - | - |
|
10GB-6012TLAN MODULE XFRMR 10GBASE-T SMD |
200 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.511" W (18.42mm x 12.98mm) | 0.410" (10.41mm) | -40°C ~ 85°C | - | - |
|
|
10GB-6012NLTLAN MODULE XFRMR 10GBASE-T SMD |
294 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.511" W (18.42mm x 12.98mm) | 0.410" (10.41mm) | -40°C ~ 85°C | - | - |
|
|
10GB-6013NLTLAN MODULE XFRMR 10GBASE-T SMD |
300 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10G Base-T, Power over Ethernet (PoE) | 120µH | - | - | Surface Mount | 0.725" L x 0.480" W (18.42mm x 12.19mm) | 0.265" (6.73mm) | -40°C ~ 85°C | - | - |
Pulse Transformers FAQ
What Pulse Transformers components can I source from EGOO?
You can browse available Pulse Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Pulse Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
