Pulse Transformers
Compare the current Pulse Transformers Transformers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM91519L-EBMS TRANSFORMER/CMC,6PIN,SGL,6.4 |
173 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
HCTSM150102HL-ETRANSF HIGH VOLTAGE ISOLATION |
626 | - |
|
Datasheet | HCT | Tape & Reel (TR) | Active | Isolation and Data Interface (Encapsulated) | 80µH | 25VµS | - | Surface Mount | 0.839" L x 0.591" W (21.30mm x 15.00mm) | 0.380" (9.65mm) | -40°C ~ 125°C | - | - |
|
SM453229-231N7YCHIP LAN,10/100/1G XFORMER,POE,4 |
1,743 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T, Power over Ethernet (PoE) | 200µH | - | 1:1 | Surface Mount | - | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
|

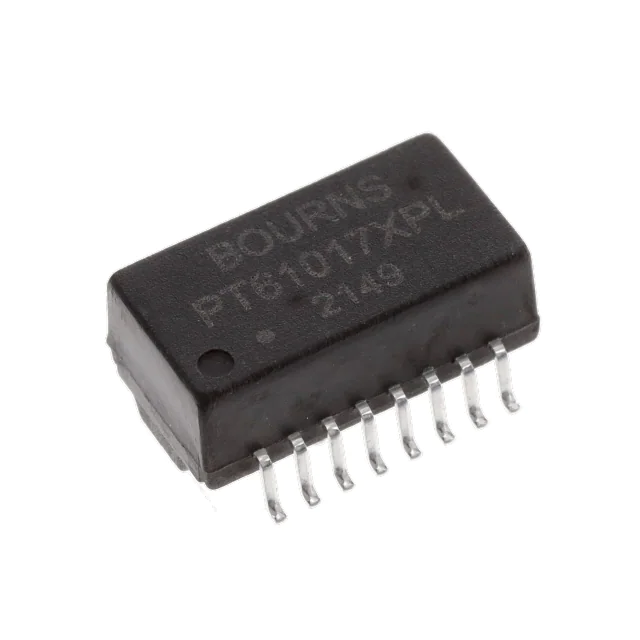

PT61017XPEL10/100 BASE T XFORMER,CMC(TX/RX) |
1,404 | - |
|
Datasheet | PT | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | 1:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -40°C ~ 85°C | - | - |
|

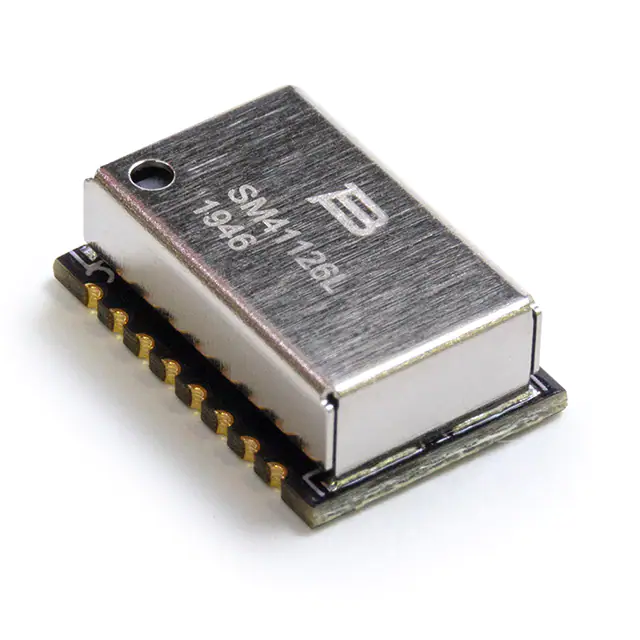

SM41126ELCHIP LAN XFMR MODULE,10/100 TX,W |
1,070 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | LAN 10/100 Base-T | 350µH | - | - | Surface Mount | 0.500" L x 0.341" W (12.70mm x 8.66mm) | 0.157" (3.99mm) | -40°C ~ 85°C | - | - |
|
SM42P01ELLAN TRANSFORMER |
153 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 2.5/5G Base-T, Power over Ethernet (PoE) | 230µH | - | - | Surface Mount | 0.650" L x 0.406" W (16.50mm x 10.30mm) | 0.161" (4.10mm) | -40°C ~ 85°C | - | - |
|
SM91502ALA-EBMS TRANSFORMER/CMC, 6PIN, SGL, |
5,125 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.300" L x 0.265" W (7.62mm x 6.73mm) | 0.225" (5.72mm) | -40°C ~ 125°C | - | - |
|
SM91525AL-ETRANSFORMER CMC BMS 4.3KVDC |
3,089 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|

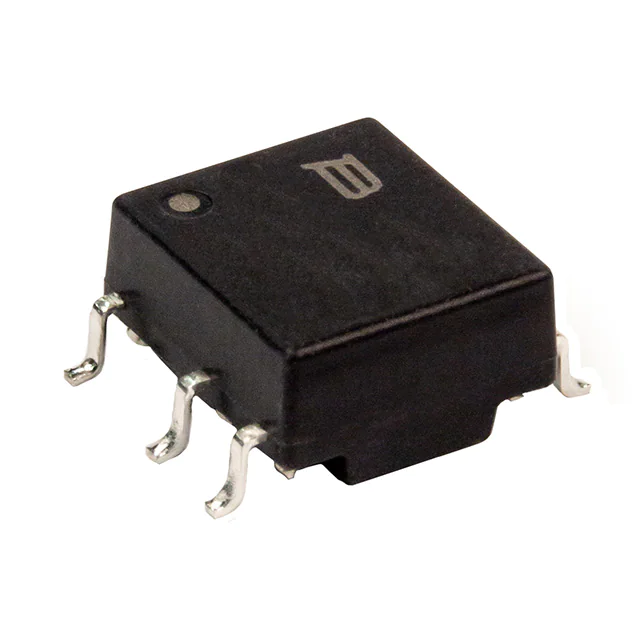

SM91508AL-EXFRMR PULSE 1:1 300UH SMD |
3,468 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | - | 300µH | - | 1:1 | Surface Mount | 0.330" L x 0.303" W (8.38mm x 7.69mm) | 0.167" (4.25mm) | -40°C ~ 150°C | Automotive | AEC-Q200 |
|
SM91501ALO-EBMS TRANSFORMER/CMC, 12PIN, DUAL |
2,000 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | - | 150µH | - | 1:1 | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | -40°C ~ 125°C | - | - |
