| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM2180.034NLXFMR GATE-DR 3CT:4CT SM NPB |
3,362 | - |
|
Datasheet | PM2180.XXXNL | Tray | Active | Isolation and Data Interface (Encapsulated) | 1.02mH | 22VµS | 3:4CT | Surface Mount | 0.319" L x 0.280" W (8.10mm x 7.10mm) | 0.200" (5.08mm) | -40°C ~ 125°C | - | - |
|
PA1284NLPULSE XFMR 155UH |
1,154 | - |
|
Datasheet | - | Tray | Active | - | 155µH | - | - | Surface Mount | 0.515" L x 0.600" W (13.08mm x 15.24mm) | 0.451" (11.45mm) | -40°C ~ 125°C | - | - |
|
II-22-0001II1 PULSE TRANSFORMER THT |
1,901 | - |
|
Datasheet | II | Bulk | Active | - | - | - | - | - | - | - | -25°C ~ 70°C | - | - |
|
S22601TRANSFORMER 1CT:1TR 2.5MH |
4,679 | - |
|
Datasheet | - | Bulk | Active | - | 2.5mH | - | 1:1 | Through Hole | 0.550" L x 0.800" W (13.97mm x 20.32mm) | 0.360" (9.14mm) | - | - | - |
|
|
TG111-HPE1NYNLFTRISO MOD 1G POE 0.6A X-TEMP |
4,988 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - |
|
|
HX6621NLMDL SIN 1GPP 1:1 SMT TY |
4,302 | - |
|
Datasheet | - | Tube | Active | - | - | - | - | - | - | - | - | - | - |
|
MTBAUGDT250101-LFTRANSFORMER, GATE DRIVE 5MM, 250 |
3,183 | - |
|
Datasheet | MTBAUGDT | Tape & Reel (TR) | Active | Gate Drive | 350µH | 25.8VµS | 1:1 | Surface Mount | - | 0.220" (5.59mm) | -55°C ~ 130°C | - | - |
|
|
HXU6200NLXFRMR MAGNETIC 1PORT 1GIG MED |
2,217 | - |
|
Datasheet | - | Tube | Active | LAN 1000 Base-T | 350µH | - | 1:1 | Surface Mount | - | 0.500" (12.70mm) | -40°C ~ 85°C | - | - |
|
|
H5400NLTXFRMR MODULE QUAD 1G 1:1 BGA SMD |
3,511 | - |
|
Datasheet | H5400NLT | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 1.120" L x 0.680" W (28.45mm x 17.27mm) | 0.420" (10.67mm) | 0°C ~ 70°C | - | - |
|
|
TXF 353229NF-121120UH LAN PULSE TRANSFORMER 1CT: |
979 | - |
|
Datasheet | TXF | Cut Tape (CT) | Active | LAN | 180µH | - | 1:1 | Surface Mount | 0.138" L x 0.126" W (3.50mm x 3.20mm) | 0.114" (2.90mm) | -40°C ~ 85°C | - | - |
|
H1201DGSINGLE LAN XFMR 10/100 BASE-T |
1,620 | - |
|
Datasheet | - | Tube | Active | LAN 10/100 Base-T | 350µH | - | 1CT:1CT | Through Hole | 0.504" L x 0.295" W (12.80mm x 7.50mm) | 0.276" (7.00mm) | 0°C ~ 70°C | - | - |
|
33818TRANSF ADSL F/TI 5000 EP13 THD |
1,767 | - |
|
Datasheet | - | Bulk | Discontinued at Digi-Key | ADSL | - | - | - | Through Hole | 0.560" L x 0.560" W (14.22mm x 14.22mm) | 0.500" (12.70mm) | - | - | - |
|
ALANS100X1-2F10LTLAN SGL 100B XFMR&CMC 16PIN |
571 | - |
|
Datasheet | ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -55°C ~ 125°C | - | - |
|
|
ALANS100X1-2F30ETLAN SGL 100B XFMR&SRDCMC 12PIN |
2,034 | - |
|
Datasheet | ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | 0°C ~ 70°C | - | - |
|
|
ALANS100X1-2F30LTLAN SGL 100B XFMR&SRDCMC 12PIN |
3,735 | - |
|
Datasheet | ALANS100X1-2 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.504" L x 0.272" W (12.80mm x 6.90mm) | 0.222" (5.65mm) | -55°C ~ 125°C | - | - |
|
ALANS100X1-1E30ETLAN SGL 100B XFMR&SRDCMC 12PIN |
3,576 | - |
|
Datasheet | ALANS100X1-1 | Tape & Reel (TR) | Active | - | 350µH | - | 1CT:1CT | Surface Mount | 0.583" L x 0.460" W (14.81mm x 11.68mm) | 0.197" (5.00mm) | 0°C ~ 70°C | - | - |
|
G2401DGSINGLE LAN XFMR 1000 BASE-T |
4,888 | - |
|
Datasheet | - | Tube | Active | LAN 10/100/1000 Base-T | 350µH | - | 1CT:1CT | Through Hole | 0.630" L x 0.472" W (16.00mm x 12.00mm) | 0.472" (12.00mm) | 0°C ~ 70°C | - | - |
|
76601/24HVCPULSE XFMR 1:1 11.7MH |
1,189 | - |
|
Datasheet | 766 | Tube | Obsolete | General Purpose | 11.7mH | 50.5VµS | 1:1 | Through Hole | 0.500" L x 0.350" W (12.70mm x 8.89mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|

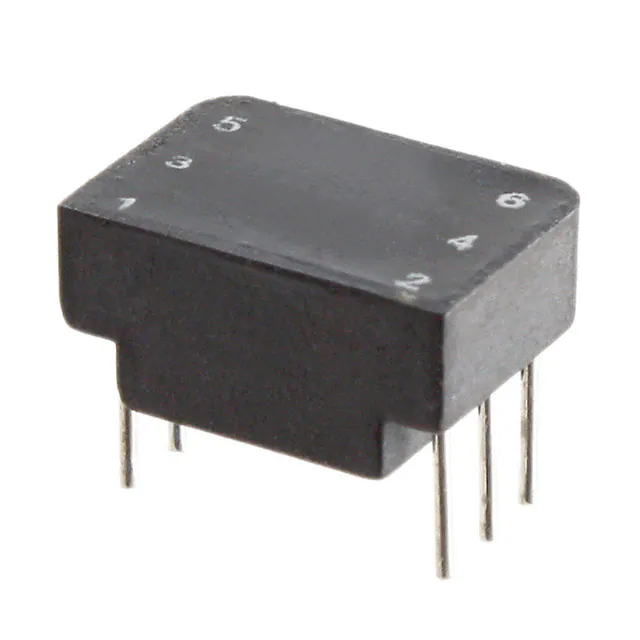

PE-65948NLXFRMR 1CT:1CT FOR ECHELON/NEURON |
1,674 | - |
|
Datasheet | - | Tube | Active | Isolation and Data Interface (Encapsulated) | 3.5mH, 6.5mH | - | 1CT:1CT | Through Hole | 0.510" L x 0.360" W (12.95mm x 9.15mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
HM42-40004LFTRPULSE XFMR 2:1:1 1.2MH |
1,557 | - |
|
Datasheet | HM42 | Cut Tape (CT) | Discontinued at Digi-Key | Gate Drive | 1.2mH | 45.4VµS | 2:1:1 | Surface Mount | 0.362" L x 0.346" W (9.20mm x 8.80mm) | 0.307" (7.80mm) | -40°C ~ 125°C | - | - |
