Pulse Transformers
Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Transformer Type | Inductance | ET (Volt-Time) | Turns Ratio - Primary:Secondary | Mounting Type | Size / Dimension | Height - Seated (Max) | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM453229A-381N7YLAN XFMR,10/100/1000 BASE-T,IEEE |
3,282 | - |
|
Datasheet | SM | Tape & Reel (TR) | Active | LAN 10/100/1000 Base-T | 350µH | - | 1:1 | Surface Mount | 0.185" L x 0.127" W (4.70mm x 3.22mm) | 0.114" (2.90mm) | -40°C ~ 85°C | Automotive | AEC-Q200 |
|
DA102MC-RDIGITAL AUDIO TX 1:1 3MH SMD |
3,232 | - |
|
Datasheet | DA100 | Tape & Reel (TR) | Not For New Designs | - | 3.9mH | 20VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78604/9CTRANSFORMER 2:1 10MH 56VUS |
1,313 | - |
|
Datasheet | 786 | Tube | Active | General Purpose | 10mH | 56VµS | 2:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
DA101CDIGITAL AUDIO TX 1:1 1.5MH DIP |
3,869 | - |
|
Datasheet | DA100 | Tube | Active | - | 2.06mH | 15VµS | 1:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
PA2004NLPULSE XFMR 1:1:1 437UH |
2,406 | - |
|
Datasheet | - | Tube | Active | - | 437µH | 20VµS | 1:1:1 | Surface Mount | 0.340" L x 0.265" W (8.64mm x 6.73mm) | 0.140" (3.56mm) | -40°C ~ 130°C | - | - |
|
PA0297NLPULSE XFMR 2:1:1 1200UH |
3,424 | - |
|
Datasheet | - | Tube | Active | - | 1200µH | 27.2VµS | 2:1:1 | Surface Mount | 0.354" L x 0.339" W (9.00mm x 8.60mm) | 0.299" (7.60mm) | -40°C ~ 130°C | - | - |
|
HM2108NLXFMR CMC MODULE AECQ BATT MNGT |
4,903 | - |
|
Datasheet | - | Tube | Active | - | 135µH | - | - | Surface Mount | 0.335" L x 0.663" W (8.50mm x 16.84mm) | 0.226" (5.75mm) | - | - | - |
|
HX1339NLXFRMR MODULE 100B-TX 2 CH SMT |
1,243 | - |
|
Datasheet | - | Tube | Active | General Purpose | 350µH | - | 1:1 | Surface Mount | - | 0.300" (7.62mm) | - | - | - |
|

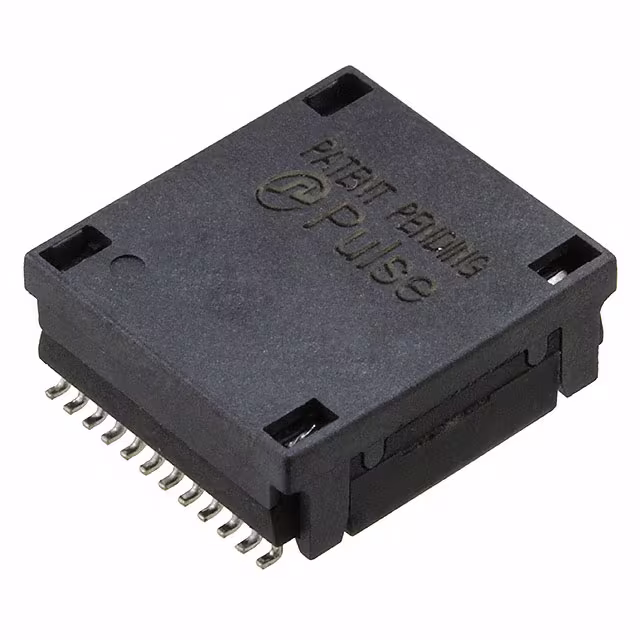

H7008FNLTRANSFORMER MODULE 10GBASE-T |
2,507 | - |
|
Datasheet | - | Tube | Active | LAN 10G Base-T | 200µH | - | 1:1 | Surface Mount | 0.591" L x 0.539" W (15.00mm x 13.70mm) | 0.230" (5.85mm) | 0°C ~ 70°C | - | - |
|
IT258XFRMR PULSE 1:1 SGL 2.5MH 1A |
3,808 | - |
|
Datasheet | IT | Tray | Active | Data/Voice Coupling | 2.5mH | - | 1:1 | Through Hole | 0.693" L x 0.657" W (17.60mm x 16.70mm) | 0.445" (11.30mm) | -25°C ~ 70°C | - | - |
|
78602/16JC-RPULSE XFMR 1:1:1 3.35MH |
2,516 | - |
|
Datasheet | 786J | Tape & Reel (TR) | Active | General Purpose | 3.35mH | 28VµS | 1:1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
78601/3MCPULSE XFMR 1:1 200UH |
2,960 | - |
|
Datasheet | 786 | Tube | Not For New Designs | General Purpose | 200µH | 6VµS | 1:1 | Surface Mount | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78602/4CPULSE XFMR 1:1:1 67UH |
4,654 | - |
|
Datasheet | 786 | Tube | Active | General Purpose | 67µH | 4VµS | 1:1:1 | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78615/8CPULSE XFMR 1CT:1CT 1MH |
2,630 | - |
|
Datasheet | 786 | Tube | Active | General Purpose | 1mH | 15VµS | 1CT:1CT | Through Hole | 0.375" L x 0.354" W (9.52mm x 9.00mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
DA102JCDIGITAL AUDIO TX 1:1 3MH DIP |
1,446 | - |
|
Datasheet | DA100J | Box | Active | - | 3.9mH | 20VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
DA103JCDIGITAL AUDIO TX 1:1 5MH DIP |
4,958 | - |
|
Datasheet | DA100J | Box | Active | - | 7.75mH | 28VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
78602/2CTRANSFORMER 1:1:1 500UH 10VUS |
4,160 | - |
|
Datasheet | 786 | Tube | Active | General Purpose | 500µH | 10VµS | 1:1:1 | Through Hole | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78601/2JCTRANSFORMER 1:1 350UH 10VUS |
4,251 | - |
|
Datasheet | 786J | Tube | Active | General Purpose | 350µH | 10VµS | 1:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | 0°C ~ 70°C | - | - |
|
|
78604/4JCXFRMR 2:1 4VUS SMD TOROID |
3,776 | - |
|
Datasheet | 786 | Tube | Active | General Purpose | 67µH | 4VµS | 2:1 | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
|
|
78615/16JCXFRMR 1CT:1CT 28VUS SMD TOROID |
1,126 | - |
|
Datasheet | 786 | Tube | Active | General Purpose | 4mH | 28VµS | 1CT:1CT | Surface Mount | 0.354" L x 0.375" W (9.00mm x 9.52mm) | 0.250" (6.35mm) | -40°C ~ 85°C | - | - |
Pulse Transformers FAQ
What Pulse Transformers components can I source from EGOO?
You can browse available Pulse Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Pulse Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
