Pulse Transformers

Browse available Pulse Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.

If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.

Mfr. Part #	Availability	Price	Quantity	Datasheet	Series	Packaging	Product Status	Transformer Type	Inductance	ET (Volt-Time)	Turns Ratio - Primary:Secondary	Mounting Type	Size / Dimension	Height - Seated (Max)	Operating Temperature	Grade	Qualification
HCTSM80809AAL-E1 XFMR 3.3-5V/3.3-15V,350MA PK TR Bourns Inc.	4,690	-	RFQ	Datasheet	HCT	Tape & Reel (TR)	Discontinued at Digi-Key	Isolation and Data Interface (Encapsulated)	250µH	11.0VµS	8:9	Surface Mount	0.484" L x 0.425" W (12.30mm x 10.80mm)	0.256" (6.50mm)	-40°C ~ 125°C	-	-
PAT6625.001NLT XMR, FLYBACK, EP17P, 19-37V INPU Pulse Electronics	4,415	-	RFQ	Datasheet	*	Cut Tape (CT)	Active	-	-	-	-	-	-	-	-	-	-
23Z467SM PULSE XFMR 1CT:2CT TX 1CT:1CT RX Pulse Electronics	2,357	-	RFQ	Datasheet	-	Tube	Active	LAN 10G Base-T	140µH	-	1CT:2CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.450" L x 0.265" W (11.43mm x 6.73mm)	0.215" (5.46mm)	0°C ~ 70°C	-	-
PLC-002 SMD Signal transformer for HPGP Premo S.L.	1,226	-	RFQ	Datasheet	-	Tray	Active	LAN	10µH	-	1:1	Surface Mount	0.449" L x 0.409" W (11.40mm x 10.40mm)	0.236" (6.00mm)	-40°C ~ 125°C	Automotive	AEC-Q200

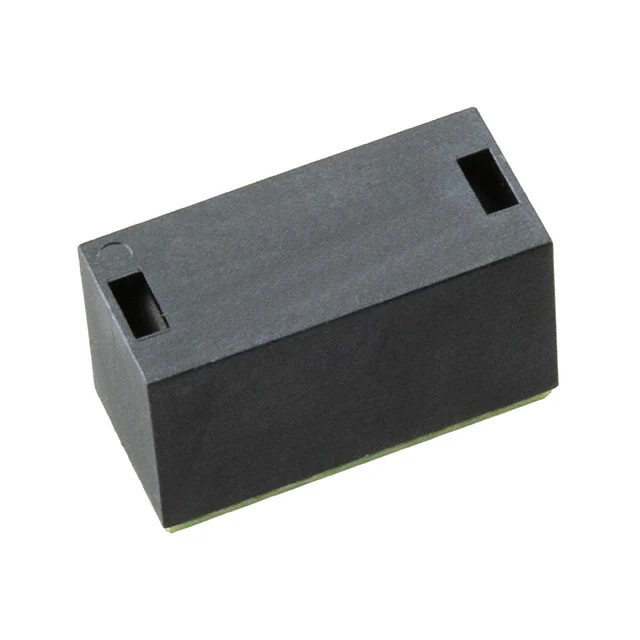

H6600NLT TRANSFORMER MODULE 10GBASE-T Pulse Electronics	4,542	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10G Base-T	120µH	-	1:1	Surface Mount	0.680" L x 0.310" W (17.27mm x 7.87mm)	0.440" (11.18mm)	0°C ~ 70°C	-	-
EPG4260S-LF POE DATA XFM, 1.15A PCA Electronics, Inc.	3,912	-	RFQ	Datasheet	EPG-SMT24	Tube	Active	LAN 10/100/1000 Base-T, Power over Ethernet (PoE)	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.710" L x 0.600" W (18.03mm x 15.24mm)	0.400" (10.16mm)	-40°C ~ 85°C	-	-
H2009FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	1,749	-	RFQ	Datasheet	-	Tube	Active	LAN 10G Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.518" L x 0.703" W (13.16mm x 17.86mm)	0.241" (6.12mm)	0°C ~ 70°C	-	-
H5009FNL PULSE XFMR 1CT:1CT TX 1CT:1CT RX Pulse Electronics	2,840	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.538" L x 0.726" W (13.67mm x 18.44mm)	0.231" (5.87mm)	0°C ~ 70°C	-	-
MTBAUGDT250252-LF TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	2,707	-	RFQ	Datasheet	MTBAUGDT	Bulk	Active	Gate Drive	300µH	23.8VµS	2.5:1:1	Surface Mount	-	0.220" (5.59mm)	-55°C ~ 130°C	-	-
T6075NL PULSE XFMR 1:1 225UH Pulse Electronics	3,342	-	RFQ	Datasheet	-	Tube	Active	-	225µH	-	1:1	Through Hole	0.498" L x 0.350" W (12.65mm x 8.89mm)	0.250" (6.35mm)	0°C ~ 70°C	-	-
MTBAUGDT250251 TRANSFORMER, GATE DRIVE 5MM, 250 Vishay Dale	1,804	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	Gate Drive	473µH	30.6VµS	2.5:1	Surface Mount	-	0.220" (5.59mm)	-55°C ~ 130°C	-	-
MTBAUGDT125050-LF TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	2,823	-	RFQ	Datasheet	MTBAUGDT	Tape & Reel (TR)	Active	Gate Drive	330µH	63VµS	1:0.5:0.5	Surface Mount	-	0.220" (5.59mm)	-55°C ~ 130°C	-	-
MTBAUGDT125075-LF TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	4,995	-	RFQ	Datasheet	MTBAUGDT	Tape & Reel (TR)	Active	Gate Drive	360µH	66VµS	1:0.75:0.75	Surface Mount	-	0.220" (5.59mm)	-55°C ~ 130°C	-	-
MTBAUGDT125100-LF TRANSFORMER, MICRO GATE DRIVE, 1 Vishay Dale	4,400	-	RFQ	Datasheet	MTBAUGDT	Tape & Reel (TR)	Active	Gate Drive	330µH	63VµS	1:1:1	Surface Mount	-	0.220" (5.59mm)	-55°C ~ 130°C	-	-
HX5012FNL PULSE XFMR 1 CT:1CT TX/RX 350UH Pulse Electronics	2,616	-	RFQ	Datasheet	-	Tube	Active	LAN 10/100/1000 Base-T	350µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	1.095" L x 0.590" W (27.81mm x 14.99mm)	0.285" (7.24mm)	-40°C ~ 85°C	-	-
T9021NLT XFRMR 4PORT 1:2.42 0.6MH SMD Pulse Electronics	3,066	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	T1/E1 (Quad)	600µH	-	1:2.42 Transmitter, 1:2.42 Receiver	Surface Mount	1.125" L x 0.485" W (28.58mm x 12.32mm)	0.285" (7.24mm)	0°C ~ 70°C	-	-
BC3.5LFB1.4 LLC RESONANT 3.5KW HALF-BRIDGE T Premo S.L.	4,002	-	RFQ	Datasheet	-	Box	Active	-	-	-	-	-	2.402" L x 2.217" W (61.00mm x 56.30mm)	1.378" (35.00mm)	-40°C ~ 140°C	-	-
PM-9210 XFMR,ISO WITH FILTR,1000 BASE T Premier Magnetics	3,648	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 1000 Base-T	350µH	-	1CT:1CT	Surface Mount	0.594" L x 0.280" W (15.10mm x 7.10mm)	0.148" (3.75mm)	-40°C ~ 85°C	-	-
PM-1006 10/100 BASE-T, ISOLATION XFMR Premier Magnetics	100	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	150µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.472" L x 0.285" W (12.00mm x 7.25mm)	0.225" (5.72mm)	0°C ~ 70°C	-	-
PM-1016 10/100 BASE-T, ISOLATION XFMR Premier Magnetics	100	-	RFQ	Datasheet	-	Tape & Reel (TR)	Active	LAN 10/100 Base-T	180µH	-	1CT:1CT Transmitter, 1CT:1CT Receiver	Surface Mount	0.472" L x 0.285" W (12.00mm x 7.25mm)	0.225" (5.72mm)	-40°C ~ 85°C	-	-

Pulse Transformers FAQ

What Pulse Transformers components can I source from EGOO?

You can browse available Pulse Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.

Can EGOO help with hard-to-source or obsolete Pulse Transformers parts?

Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.

Does EGOO support BOM and small-batch sourcing?

Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.

How do I request pricing and availability?

Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
