Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MUR10040CTRDIODE MODULE GP 400V 50A 2TOWER |
3,437 | - |
|
Datasheet | - | Twin Tower | Bulk | Active | 1 Pair Common Anode | Standard | 400 V | 50A | 1.3 V @ 50 A | Fast Recovery =< 500ns, > 200mA (Io) | 90 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
FST160150DIODE MOD SCHOT 150V 80A TO249AB |
5,857 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 150 V | 80A | 880 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 150 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
|
FST160200DIODE MOD SCHOT 200V 80A TO249AB |
8,974 | - |
|
Datasheet | - | TO-249AB | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 80A | 920 mV @ 80 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | TO-249AB |
|
MBRT120200DIODE MOD SCHOTT 200V 60A 3TOWER |
9,297 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Cathode | Schottky | 200 V | 60A | 920 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT120200RDIODE MOD SCHOTT 200V 60A 3TOWER |
9,565 | - |
|
Datasheet | - | Three Tower | Bulk | Active | 1 Pair Common Anode | Schottky | 200 V | 60A | 920 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 200 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|

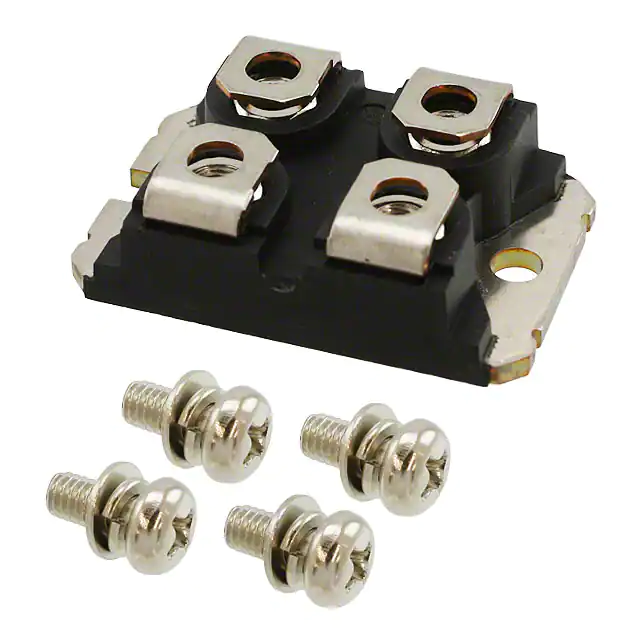

MBR40045CTSDIODE MOD SCHOTT 45V 400A SOT227 |
3,561 | - |
|
Datasheet | - | SOT-227-4 | Bulk | Obsolete | 2 Independent | Schottky | 45 V | 400A (DC) | 1.2 V @ 200 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 5 µA @ 36 V | -40°C ~ 175°C | - | - | Screw Mount | SOT-227 |
|
|
MBRT30080DIODE MOD SCHOTT 80V 150A 3TOWER |
9,059 | - |
|
Datasheet | - | Three Tower | Bulk | Obsolete | 1 Pair Common Cathode | Schottky | 80 V | 150A | 880 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MBRT30080RDIODE MOD SCHOTT 80V 150A 3TOWER |
8,610 | - |
|
Datasheet | - | Three Tower | Bulk | Obsolete | 1 Pair Common Anode | Schottky | 80 V | 150A | 880 mV @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1 mA @ 20 V | -55°C ~ 150°C | - | - | Chassis Mount | Three Tower |
|
|
MUR20005CTDIODE MODULE GP 50V 100A 2TOWER |
5,876 | - |
|
Datasheet | - | Twin Tower | Bulk | Obsolete | 1 Pair Common Cathode | Standard | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
|
|
MUR20005CTRDIODE MODULE GP 50V 100A 2TOWER |
9,550 | - |
|
Datasheet | - | Twin Tower | Bulk | Obsolete | 1 Pair Common Anode | Standard | 50 V | 100A | 1.3 V @ 100 A | Fast Recovery =< 500ns, > 200mA (Io) | 75 ns | 25 µA @ 50 V | -55°C ~ 150°C | - | - | Chassis Mount | Twin Tower |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
