Diode Arrays
Compare the current Diode Arrays Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Diode Configuration | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) (per Diode) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Operating Temperature - Junction | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

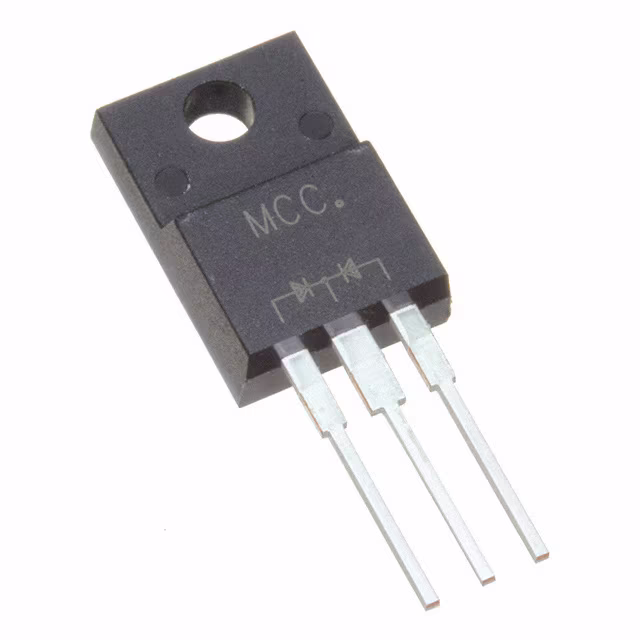

MBR2045FCTS-BPDIODE ARR SCHOT 45V 20A ITO220AB |
976 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 20A | 650 mV @ 10 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
MURS1620CTA-BPDIODE ARRAY GP 200V 16A TO-220AB |
116 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | 1 Pair Common Cathode | Standard | 200 V | 16A | 1 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -55°C ~ 150°C | - | - | Through Hole | TO-220AB |
|
MURSB1620CTA-TPDIODE ARRAY GP 200V 16A D2PAK |
800 | - |
|
Datasheet | - | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Standard | 200 V | 16A | 1 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -55°C ~ 150°C | - | - | Surface Mount | D2PAK |
|
MURS1620FCTA-BPDIODE ARRAY GP 200V 16A ITO220AB |
975 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Standard | 200 V | 16A | 1 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 200 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
MBR3045FCTS-BPDIODE ARR SCHOT 45V 30A ITO220AB |
957 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Schottky | 45 V | 30A | 650 mV @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 200 µA @ 45 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
|
MURS1660FCTA-BPDIODE ARRAY GP 600V 16A ITO220AB |
978 | - |
|
Datasheet | - | TO-220-3 Isolated Tab | Tube | Active | 1 Pair Common Cathode | Standard | 600 V | 16A | 1.6 V @ 8 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 5 µA @ 600 V | -55°C ~ 150°C | - | - | Through Hole | ITO-220AB |
|
MD70K16D1-BPDIODE MODULE GP 1600V 70A D1 |
10 | - |
|
Datasheet | - | D1 | Bulk | Active | 1 Pair Common Cathode | Standard | 1600 V | 70A | 1.3 V @ 200 A | Standard Recovery >500ns, > 200mA (Io) | - | 5 mA @ 1600 V | -40°C ~ 150°C | - | - | Chassis Mount | D1 |
|
MF300K06F3-BPDIODE MODULE GP 600V 150A F3 |
10 | - |
|
Datasheet | - | F3 Module | Tray | Active | 1 Pair Common Anode | Standard | 600 V | 150A | 1.4 V @ 150 A | Fast Recovery =< 500ns, > 200mA (Io) | 130 ns | 1 mA @ 600 V | -40°C ~ 150°C | - | - | Chassis Mount | F3 |
.jpg "BAS40-05HE3-TP")
|
BAS40-05HE3-TPDIODE ARR SCHOTT 40V 200MA SOT23 |
7,379 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Cathode | Schottky | 40 V | 200mA | 1 V @ 40 mA | Small Signal =< 200mA (Io), Any Speed | 5 ns | 200 nA @ 30 V | -55°C ~ 125°C | Automotive | AEC-Q101 | Surface Mount | SOT-23 |
|
MMBD1505-TPDIODE ARRAY GP 180V 200MA SOT23 |
2,638 | - |
|
Datasheet | - | TO-236-3, SC-59, SOT-23-3 | Tape & Reel (TR) | Active | 1 Pair Common Anode | Standard | 180 V | 200mA | 1.3 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | - | 10 nA @ 180 V | -55°C ~ 150°C | - | - | Surface Mount | SOT-23 |
Diode Arrays FAQ
How can I narrow the current Diode Arrays selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Diode Arrays parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
