Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
JAN1N4148UR-1DIODE GP 100V 200MA DO213AA |
907 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 100 V | 200mA | 800 mV @ 10 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 25 nA @ 20 V | 2.8pF @ 1.5V, 1MHz | Military | MIL-PRF-19500/241 | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
1N4150UR-1DIODE GEN PURP 50V 200MA DO213AA |
1,319 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 50 V | 200mA | 1 V @ 200 mA | Small Signal =< 200mA (Io), Any Speed | 4 ns | 100 nA @ 50 V | - | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
JANTXV1N4148-1DIODE GEN PURP 75V 200MA DO35 |
2,011 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 75 V | 200mA | 1.2 V @ 100 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | - | Military | MIL-PRF-19500/116 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
APT30DQ60BGDIODE GP 600V 30A TO247 |
439 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 600 V | 30A | 2.4 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 25 µA @ 600 V | - | - | - | Through Hole | TO-247 [B] | -55°C ~ 175°C |
.jpg "5822SMJE3/TR13")
|
5822SMJE3/TR13DIODE SCHOTTKY 40V 3A SMCJ |
7,821 | - |
|
Datasheet | - | DO-214AB, SMC | Tape & Reel (TR) | Active | Schottky | 40 V | 3A | 500 mV @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | - | 1.5 mA @ 40 V | - | - | - | Surface Mount | DO-214AB (SMCJ) | -55°C ~ 150°C |
|
|
APT30DQ120BGDIODE GP 1.2KV 30A TO247 |
349 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 1200 V | 30A | 3.3 V @ 30 A | Fast Recovery =< 500ns, > 200mA (Io) | 320 ns | 100 µA @ 1200 V | - | - | - | Through Hole | TO-247 [B] | -55°C ~ 175°C |
|
|
APT40DQ60BGDIODE GP 600V 40A TO247 |
3,027 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 600 V | 40A | 2.4 V @ 40 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 25 µA @ 600 V | - | - | - | Through Hole | TO-247 [B] | -55°C ~ 175°C |
|
APT60DQ60BGDIODE GP 600V 60A TO247 |
924 | - |
|
Datasheet | - | TO-247-2 | Tube | Active | Standard | 600 V | 60A | 2.4 V @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 35 ns | 25 µA @ 600 V | - | - | - | Through Hole | TO-247 [B] | -55°C ~ 175°C |
|

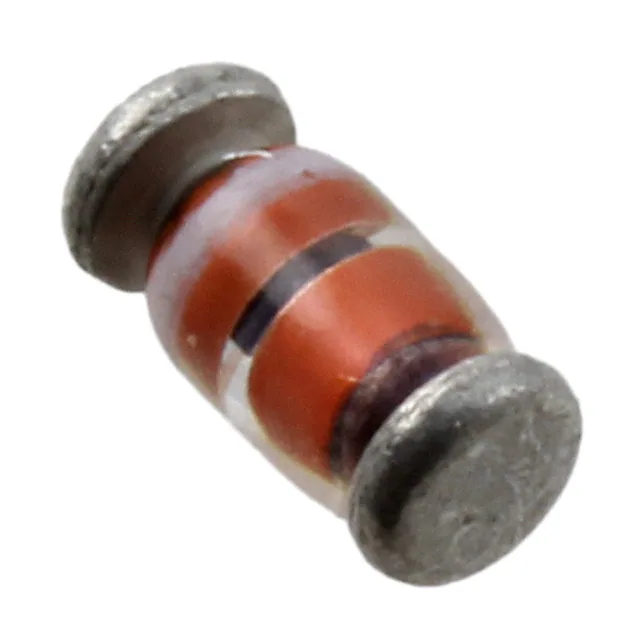

1N914URDIODE GEN PURP 75V 200MA DO213AA |
1,684 | - |
|
Datasheet | - | DO-213AA | Bulk | Active | Standard | 75 V | 200mA | 1.2 V @ 50 mA | Small Signal =< 200mA (Io), Any Speed | 20 ns | 500 nA @ 75 V | 4pF @ 0V, 1MHz | - | - | Surface Mount | DO-213AA | -65°C ~ 175°C |
|
APT15D100KGDIODE GEN PURP 1KV 15A TO220 |
277 | - |
|
Datasheet | - | TO-220-3 | Tube | Active | Standard | 1000 V | 15A | 2.3 V @ 15 A | Fast Recovery =< 500ns, > 200mA (Io) | 260 ns | 250 µA @ 1000 V | - | - | - | Through Hole | TO-220 [K] | -55°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
