Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N3611DIODE GEN PURP 200V 1A AXIAL |
341 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 µA @ 200 V | - | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|
JANTX1N3611DIODE GEN PURP 200V 1A AXIAL |
356 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 200 V | 1A | 1.1 V @ 1 A | Standard Recovery >500ns, > 200mA (Io) | - | 1 µA @ 200 V | - | Military | MIL-PRF-19500/228 | Through Hole | A, Axial | -65°C ~ 175°C |
|
JANTX1N5806DIODE GEN PURP 150V 1A AXIAL |
149 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 150 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 150 V | 25pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Through Hole | A, Axial | -65°C ~ 175°C |
|
1N5804DIODE GEN PURP 100V 1A AXIAL |
299 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|
APT60S20SGDIODE SCHOTTKY 200V 75A D3 |
187 | - |
|
Datasheet | - | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Active | Schottky | 200 V | 75A | 900 mV @ 60 A | Fast Recovery =< 500ns, > 200mA (Io) | 55 ns | 1 mA @ 200 V | - | - | - | Surface Mount | D3PAK | -55°C ~ 150°C |
|

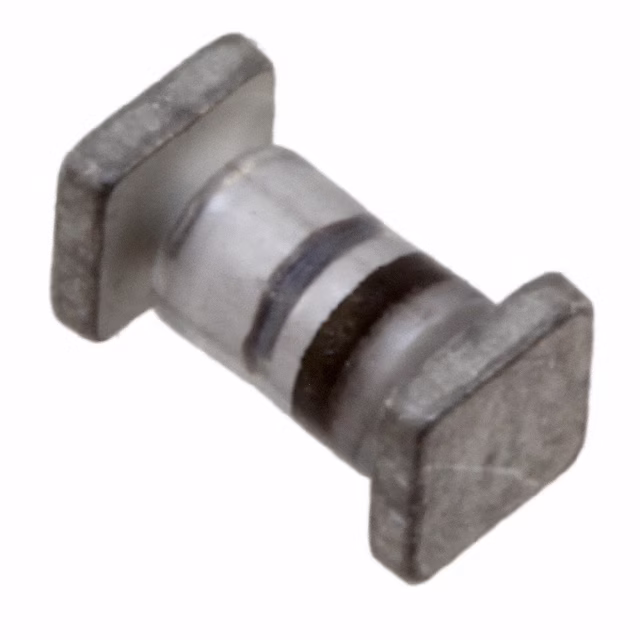

1N5614USDIODE GEN PURP 200V 1A D-5A |
250 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1A | 1.3 V @ 3 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 500 nA @ 200 V | - | - | - | Surface Mount | D-5A | -65°C ~ 200°C |
|
|
1N5550DIODE GEN PURP 200V 3A AXIAL |
262 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 200 V | 3A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 200 V | - | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
1N5802DIODE GEN PURP 50V 1A AXIAL |
298 | - |
|
Datasheet | - | A, Axial | Bulk | Active | Standard | 50 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 50 V | 25pF @ 10V, 1MHz | - | - | Through Hole | A, Axial | -65°C ~ 175°C |
|
|
1N5807DIODE GEN PURP 50V 3A AXIAL |
198 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 50 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 50 V | 60pF @ 10V, 1MHz | - | - | Through Hole | B, Axial | -65°C ~ 175°C |
|
|
JANTX1N5417DIODE GEN PURP 200V 3A AXIAL |
204 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 200 V | 3A | 1.5 V @ 9 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 1 µA @ 200 V | - | Military | MIL-PRF-19500/411 | Through Hole | B, Axial | -65°C ~ 175°C |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
