Single Diodes
Compare the current Single Diodes Rectifiers selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Voltage - Forward (Vf) (Max) @ If | Speed | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Capacitance @ Vr, F | Grade | Qualification | Mounting Type | Supplier Device Package | Operating Temperature - Junction |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5615USDIODE GEN PURP 200V 1A D-5A |
630 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 200 V | 1A | 1.6 V @ 3 A | Fast Recovery =< 500ns, > 200mA (Io) | 150 ns | 500 nA @ 200 V | 45pF @ 12V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|
JANTX1N6642DIODE GEN PURP 75V 300MA DO35 |
6,996 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 20 ns | 500 nA @ 75 V | 5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|
JANTX1N5554DIODE GEN PURP 1KV 5A AXIAL |
118 | - |
|
Datasheet | - | B, Axial | Bulk | Active | Standard | 1000 V | 5A | 1.3 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 2 µA @ 1000 V | - | Military | MIL-PRF-19500/420 | Through Hole | B, Axial | -65°C ~ 175°C |
|
JANTX1N5712-1DIODE SCHOTTKY 20V 750MA DO35 |
154 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Schottky | 20 V | 750mA | 1 V @ 35 mA | Fast Recovery =< 500ns, > 200mA (Io) | - | 150 nA @ 16 V | 2pF @ 0V, 1MHz | Military | MIL-PRF-19500/444 | Through Hole | DO-204AH (DO-35) | -65°C ~ 150°C |
|
|
1N5804USDIODE GEN PURP 100V 1A D-5A |
1,182 | - |
|
Datasheet | - | SQ-MELF, A | Bulk | Active | Standard | 100 V | 1A | 875 mV @ 1 A | Fast Recovery =< 500ns, > 200mA (Io) | 25 ns | 1 µA @ 100 V | 25pF @ 10V, 1MHz | - | - | Surface Mount | D-5A | -65°C ~ 175°C |
|
JANTX1N5551USDIODE GEN PURP 400V 5A B SQ-MELF |
155 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 400 V | 5A | 1.2 V @ 9 A | Standard Recovery >500ns, > 200mA (Io) | 2 µs | 1 µA @ 400 V | - | Military | MIL-PRF-19500/420 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
JANTXV1N5809USDIODE GEN PURP 100V 3A B SQ-MELF |
166 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 100 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 100 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
JANTXV1N5811USDIODE GEN PURP 150V 3A B SQ-MELF |
148 | - |
|
Datasheet | - | SQ-MELF, B | Bulk | Active | Standard | 150 V | 3A | 875 mV @ 4 A | Fast Recovery =< 500ns, > 200mA (Io) | 30 ns | 5 µA @ 150 V | 60pF @ 10V, 1MHz | Military | MIL-PRF-19500/477 | Surface Mount | B, SQ-MELF | -65°C ~ 175°C |
|
|
JANS1N6642DIODE GEN PURP 75V 300MA DO204AH |
434 | - |
|
Datasheet | - | DO-204AH, DO-35, Axial | Bulk | Active | Standard | 75 V | 300mA | 1.2 V @ 100 mA | Fast Recovery =< 500ns, > 200mA (Io) | 5 ns | 500 nA @ 75 V | 5pF @ 0V, 1MHz | Military | MIL-PRF-19500/578 | Through Hole | DO-204AH (DO-35) | -65°C ~ 175°C |
|

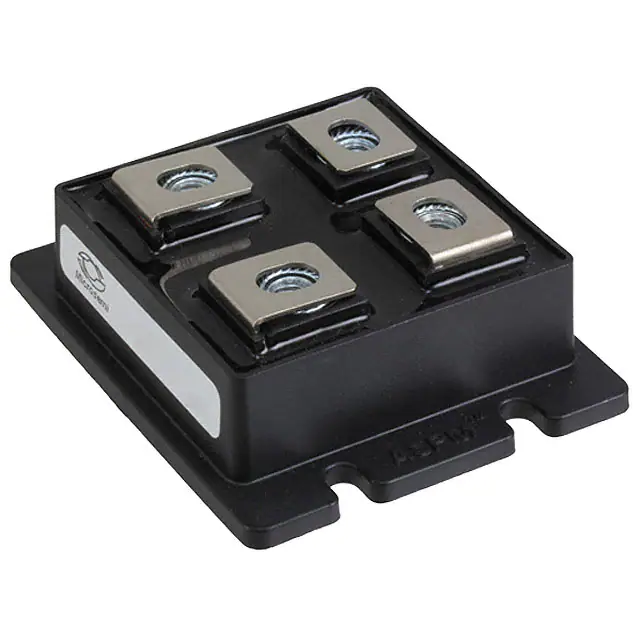

APTDF400U120GDIODE GEN PURP 1.2KV 450A LP4 |
478 | - |
|
Datasheet | - | LP4 | Bulk | Active | Standard | 1200 V | 450A | 2.5 V @ 500 A | Fast Recovery =< 500ns, > 200mA (Io) | 110 ns | 2.5 mA @ 1200 V | - | - | - | Chassis Mount | LP4 | - |
Single Diodes FAQ
How can I narrow the current Single Diodes selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Single Diodes parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
