RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2450AT43A0100001ERF ANT 2.4GHZ CHIP SOLDER SMD |
39,654 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Chip | 1 | - | -9.5dB | 2dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
|
0868AT43A0020001ERF ANT 868MHZ CHIP SOLDER SMD |
15,850 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 868MHz | 858MHz ~ 878MHz | Chip | 1 | - | -9.5dB | -1dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | - |
|
SR42W001RF ANT 2.4GHZ/5.4GHZ CHIP SLD |
53,675 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Chip | 2 | 1.5 | -12dB | 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | WLAN |
|
MAF94045RF ANT 2.4GHZ PCB TRACE CAB SMD |
5,918 | - |
|
Datasheet | NanoBlue | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | - | - | 2dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.032" (0.81mm) | Bluetooth, Wi-Fi |
|
W24P-URF ANT 2.4GHZ PCB TRACE CONN MT |
995 | - |
|
Datasheet | eS-WiFi™ | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 2 | - | 3.2dBi | - | Cable - 90mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Connector Mount | 0.020" (0.50mm) | WLAN |
|
|
0900AT43A0070001ERF ANT CHIP SOLDER SMD |
161,987 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | - | - | Chip | 1 | - | - | -0.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | - |
|

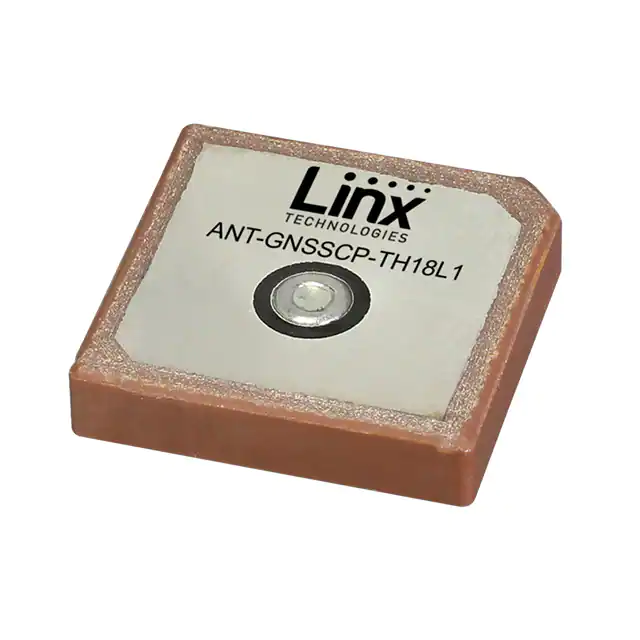

ANT-GNSSCP-TH18L1RF ANT GNSS PATCH L1 18X18 PIN |
1,017 | - |
|
Datasheet | GNSSCP | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.567GHz ~ 1.609GHz | Ceramic Patch | 3 | 2.8, 3.2, 2.9 | -6.5dB, -5.6dB, -6.2dB | 5.1dBi, 2.8dBi, 4dBi | 8 W | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
NN03-320DUO MXTEND MULTIBAND ANTENNA |
14,645 | - |
|
Datasheet | DUO mXTEND™ | Tape & Reel (TR) | Active | Bluetooth, Cellular, Navigation, WiFi | Ultra Wide Band | 1.561GHz, 1.575GHz, 1.606GHz, 2.45GHz, 3.5GHz, 3.7GHz, 3.4Ghz, 4.0GHz, 4.5GHz, 5.0GHz , 5.5GHz, 6.1GHz, 6.6GHz, 7.1GHz, 7.7GHz, 8.2GHz, 8.7GHz, 9.2GHz, 9.8GHz, 10.3GHz | 1.56GHz ~ 10.6GHz | Chip | 3 | 2.5 | - | 2.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | 5G, Beidou, BT, Galileo, GNSS, GPS, UWB |
|
|
0915AT43A0026001ERF ANT 915MHZ CHIP SOLDER SMD |
24,502 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 915MHz | 902MHz ~ 928MHz | Chip | 1 | - | -8.5dB | -1dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | - |
|
|
2500AT44M0400001ERF ANT 2.38GHZ/2.4GHZ CHIP SLD |
5,287 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.38GHz, 2.4GHz, 2.6GHz | 2.3GHz ~ 2.7GHz | Chip | 3 | - | -9.5dB | 2dBi, 2.5dBi, 2dBi | - | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, Wi-Fi, WiMax™, WLAN, Zigbee™ |
|
W2.4-5P-URF ANT 2.4GHZ/5GHZ PCB TRACE SMD |
6,865 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 2.6dBi, 3.3dBi | - | Cable - 90mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.039" (1.00mm) | Wi-Fi |
|
2065130001RF ANT 2.4GHZ CER PATCH SLDR SMD |
296 | - |
|
Datasheet | - | Tape & Reel (TR) | Not For New Designs | - | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Ceramic Patch | 1 | - | -6dB | 3.6dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | General Purpose |
|
|
H2U64H1H2B0100868MHZ ISM 863-870MHZ TELA CERAM |
30,004 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 866.5MHz | 863MHz ~ 870MHz | Chip | 1 | 2 | - | 0.5dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM |
|
2118310-1RF ANT 2.4GHZ/5GHZ PCB TRACE SLD |
1,903 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | PCB Trace | 2 | - | - | - | - | - | Solder | - | - | - | Surface Mount | 0.062" (1.57mm) | WLAN |
|
ANT-2.45-CHP-TRF ANT 2.4GHZ CHIP SOLDER SMD |
4,184 | - |
|
Datasheet | CHP | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.36GHz ~ 2.54GHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.039" (1.00mm) | Bluetooth, Thread, Wi-Fi, Zigbee™ |
|
|
YFGA003AAGNSS FPC ANTENNA, 39.45 X 13.25, |
2,986 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.59GHz | 1.56GHz ~ 1.61GHz | Flat Patch | 1 | - | - | - | - | Cable - 100mm | - | - | - | - | Adhesive | 0.005" (0.13mm) | GNSS |
|
NN02-201ONE MXTEND MULTIBAND ANTENNA |
12,921 | - |
|
Datasheet | ONE mXTEND™ | Tape & Reel (TR) | Active | Cellular | Ultra Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.5GHz, 3.5GHz, 3.7GHz, 4.7GHz, 5GHz, 6GHz, 7GHz | 824MHz ~ 7.125GHz | Chip | 1 | 3 | - | 4.1dBi | - | - | SMA | - | - | - | Surface Mount | 0.039" (1.00mm) | 2G, 3G, 4G, 5G, DCS, GSM, LTE, PCS, UMTS, Wifi DB |
|

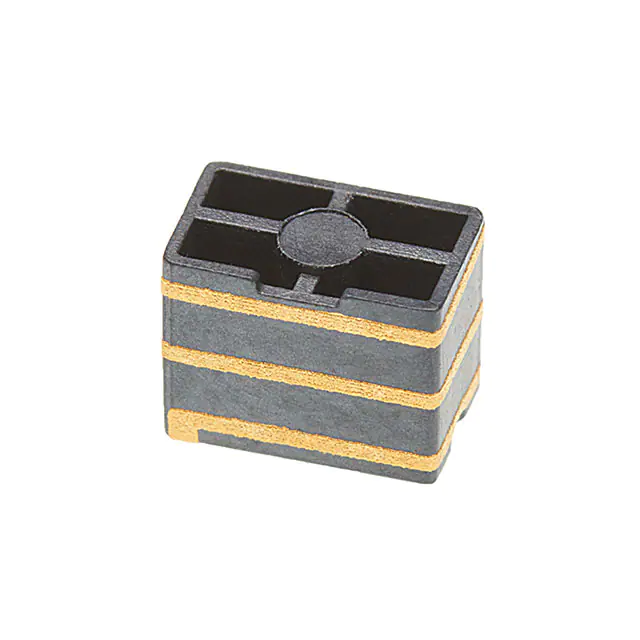

1462350001RF ANT 1.575GHZ MOLDED SLDR SMD |
8,380 | - |
|
Datasheet | Helix 146235 | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Molded | 1 | - | -10dB | 1.4dBi | - | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | GPS |
|
PRO-OB-471RF ANT 868MHZ/915MHZ STAMPED MET |
12,198 | - |
|
Datasheet | Embedded Antenna | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 860MHz ~ 870MHz, 902MHz ~ 928MHz | Stamped Metal | 2 | - | -10dB, -6dB | - | - | - | Solder | - | - | - | Surface Mount | 0.197" (5.00mm) | ISM |
|
1000146RF ANT 2.4GHZ/4.9GHZ STAMPED MET |
148,257 | - |
|
Datasheet | Prestta™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz | Stamped Metal | 4 | 1.6, 1.8, 1.5, 1.3 | - | 2.5dBi, 3.5dBi, 3.5dBi, 3.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.169" (4.30mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
RF Antennas FAQ
What RF Antennas components can I source from EGOO?
You can browse available RF Antennas product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Antennas parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
