RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SR4L049-RRF ANT 875.5MHZ/1.94GHZ PCB TRCE |
2,231 | - |
|
Datasheet | Integra | Tape & Reel (TR) | Active | Cellular | Wide Band | 875.5MHz, 1.94GHz, 2.35GHz, 2.595GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | PCB Trace | 4 | 1.9, 2.3, 3.6, 4.1 | -4.5dB, -5dB, -7.8dB, -9.7dB | 1.9dBi, 3dBi, 3.3dBi, 3.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
|

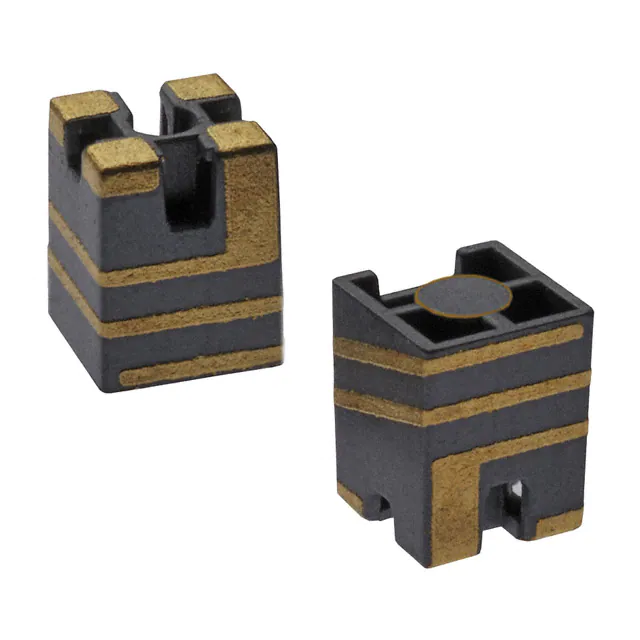

0479480001RF ANT 2.4GHZ CHIP SOLDER SMD |
16,272 | - |
|
Datasheet | 47948 | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Chip | 1 | - | -9dB | 3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Bluetooth, WLAN, Zigbee™ |
|
CAF94505RF ANT 2.4GHZ/5.3GHZ PCB TRACE |
4,022 | - |
|
Datasheet | NanoBlade | Bulk | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.3GHz, 5.6GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 6GHz | PCB Trace | 3 | 2 | - | 2dBi, 3.9dBi, 4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.650" (16.50mm) | Bluetooth, Wi-Fi, WiMax™ |
|
SR4L002RF ANT 829MHZ/1.9GHZ CHIP SLD |
50,889 | - |
|
Datasheet | Lucida | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.9GHz, 2.4GHz, 2.6GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.49GHz ~ 2.69GHz | Chip | 4 | 3 | -5dB | 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | LTE |
|
SR4L049-LRF ANT 875.5MHZ/1.94GHZ PCB TRCE |
1,453 | - |
|
Datasheet | Integra | Tape & Reel (TR) | Active | Cellular | Wide Band | 875.5MHz, 1.94GHz, 2.35GHz, 2.595GHz | 791MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | PCB Trace | 4 | 1.9, 2.3, 3.6, 4.1 | -4.5dB, -5dB, -7.8dB, -9.7dB | 1.9dBi, 3dBi, 3.3dBi, 3.5dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
|
0433AT62A0020001ERF ANT 433MHZ CHIP SOLDER SMD |
43,237 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 433MHz | 423MHz ~ 443MHz | Chip | 1 | - | -8.5dB | -4dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.047" (1.20mm) | - |
|
W3070RF ANT 900MHZ/1.8GHZ CHIP SLD |
5,552 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 900MHz, 1.8GHz | 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz | Chip | 2 | - | -3.8dB, -4dB | 1.5dBi, 1dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | GSM |
|
SR4L034-RRF ANT 829MHZ/1.94GHZ PCB TRACE |
4,857 | - |
|
Datasheet | Inversa | Tape & Reel (TR) | Active | Cellular | Wide Band | 829MHz, 1.94GHz, 2.35GHz, 2.595GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | PCB Trace | 4 | 2.5, 2.8, 3.5, 3.7 | -4.9dB, -5.1dB, -6dB, -6.6dB, -7dB | 0.4dBi, 1.6dBi, 2.1dBi, 3.5dBi, 3.6dBi | - | - | Solder | - | - | - | Surface Mount | 0.130" (3.30mm) | 3G, 4G, CDMA, DCS, EDGE, GPRS, GSM, HSPA, IMT, LTE, PCS, UMTS, WCDMA |
|
1052620001RF ANT 866MHZ/915MHZ FLAT 100MM |
53,882 | - |
|
Datasheet | 105262 | Tray | Active | - | UHF (300MHz ~ 1GHz) | 866MHz, 915MHz | 863MHz ~ 870MHz, 902MHz ~ 928MHz | Flat Patch | 2 | - | -11dB, -13dB | 0.4dBi, 1.4dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | - |
|
1461530300RF ANT 2.4/5GHZ FLAT PATCH 300MM |
10,626 | - |
|
Datasheet | 146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 2.2dBi, 3.3dBi | 2 W | Cable - 300mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|

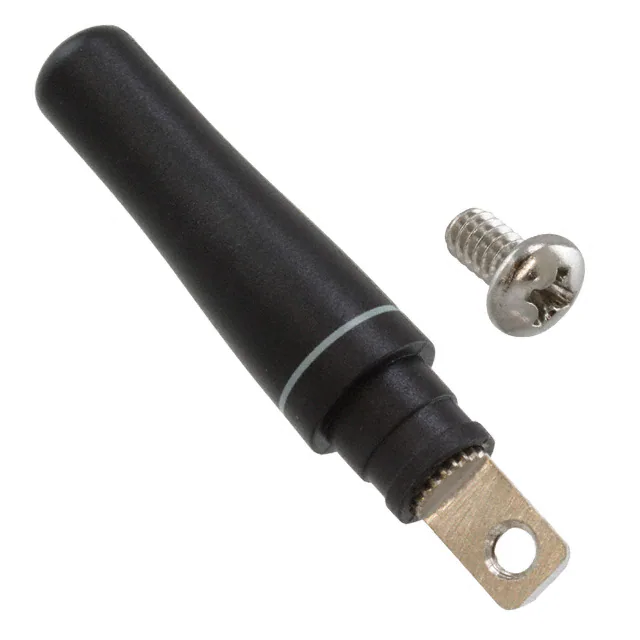

ANT-868-PW-LPRF ANT 868MHZ WHIP STR SCREW-MNT |
6,179 | - |
|
Datasheet | LP | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 832MHz ~ 904MHz | Whip, Straight | 1 | 1.9 | - | 2.1dBi | - | - | Screw-Mount | - | - | - | Panel Mount | 1.988" (50.50mm) | ISM, LoRa, Sensor Networks, SigFox |
|
APAE1590R2540AKDB1-TRF ANT 1.575/1.602GHZ CER PATCH |
44,957 | - |
|
Datasheet | APAE | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.608GHz | Ceramic Patch | 2 | 1.5 | -7dB | - | - | - | Pin | - | - | - | Adhesive | 0.181" (4.60mm) | GLONASS, GPS |
|
M620720RF ANT 868MHZ/915MHZ CHIP SLD |
1,873 | - |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | 868MHz ~ 870MHz, 902MHz ~ 928MHz | Chip | 1 | 2.6 | - | 2.56dB | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | ISM, LoRa, LPWAN, Sigfox |
|
ANT1204LL20R0433ARF ANT 433MHZ CHIP SOLDER SMD |
5,685 |
1+：$1.99000 10+：$1.71800 25+：$1.62160 100+：$1.48920 250+：$1.40976 500+：$1.35360 |
|
Datasheet | 1204 | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 433MHz | - | Chip | 1 | - | 6.5dB | 0.83dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | ISM |
|

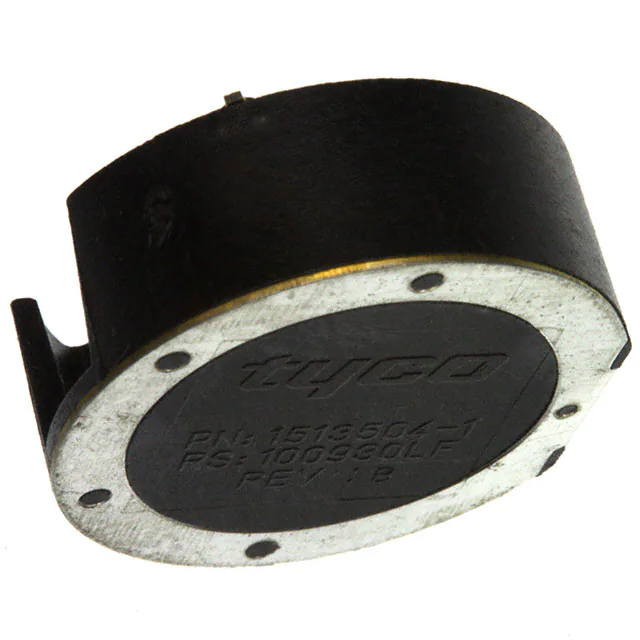

1513504-1RF ANT 2.4GHZ PUCK SOLDER SMD |
2,465 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Puck | 1 | 2.5 | - | 2dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.238" (6.05mm) | Bluetooth, WLAN, Zigbee™ |
|

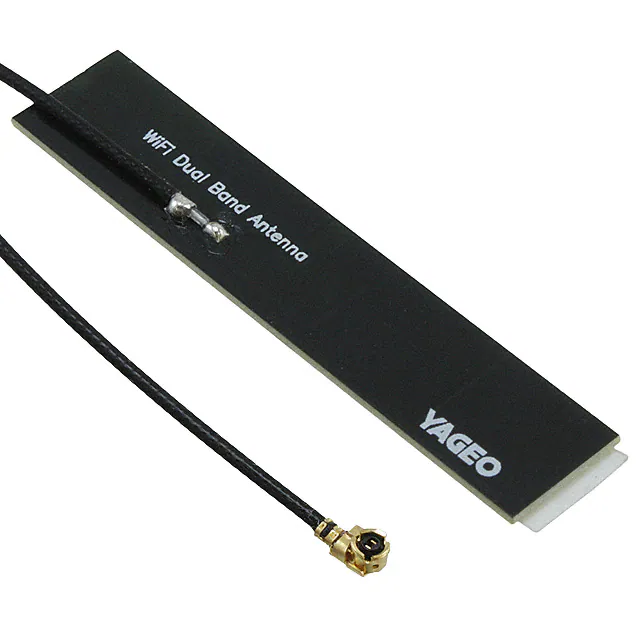

ANTX100P001B24553RF ANT 2.4GHZ/5.5GHZ FLAT PATCH |
4,605 | - |
|
Datasheet | - | Bulk | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.875GHz | Flat Patch | 2 | 2.5 | - | 4.6dBi, 3.9dBi | 1 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.037" (0.95mm) | Bluetooth, WLAN, Zigbee™ |
|
2042810100RF ANT 2.4GHZ/5.5GHZ PCB TRACE |
2,649 | - |
|
Datasheet | 204281 | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 3.5dBi | - | Cable - 100mm | - | - | - | - | Adhesive | 0.098" (2.50mm) | Wi-Fi |
|
GW.34.5153EXTERNAL BRACKET MOUNT NFC ANTEN |
601 | - |
|
Datasheet | - | Bag | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | - | - | 4.22dBi, 5.89dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 7.795" (198.00mm) | Wi-Fi |
|
2042811100RF ANT 2.4/5GHZ PCB TRACE 100MM |
14,037 | - |
|
Datasheet | 204281 | Tray | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | - | PCB Trace | 2 | - | -10dB | - | 2 W | Cable - 100mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi |
|
SRF2W012-100RF ANT 2.4GHZ/5.4GHZ FLAT PATCH |
1,219 | - |
|
Datasheet | Dromus | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | Flat Patch | 2 | 1.8 | -14dB | 4dBi | - | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | WLAN |
RF Antennas FAQ
What RF Antennas components can I source from EGOO?
You can browse available RF Antennas product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Antennas parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
