RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

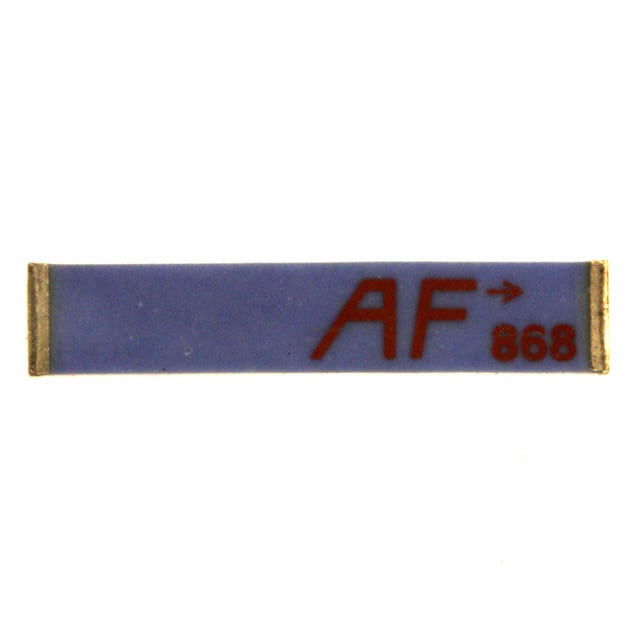

ANT-868-CHP-TRF ANT 868MHZ CHIP SOLDER SMD |
11,789 | - |
|
Datasheet | CHP | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 873MHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.067" (1.70mm) | ISM, LoRa, Sensor Networks, SigFox |
|
W24-ASMA-MRF ANT 2.4GHZ WHIP TILT SMA MALE |
1,306 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 1.5 | -17dBi | 2.15dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 2.598" (66.00mm) | WLAN |
|
W24-RSMA-MRF ANT 2.4GHZ WHIP RA SMA MALE |
1,129 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Right Angle | 1 | 1.5 | -17dBi | 2.15dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 1.829" (46.46mm) | WLAN |
|
W24-SSMA-MRF ANT 2.4GHZ WHIP STR SMA MALE |
637 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.5GHz | Whip, Straight | 1 | 1.5 | -17dBi | 2.15dBi | 50 W | - | SMA Male | - | - | - | Connector Mount | 1.969" (50.00mm) | WLAN |
|
NN02-224RUN MXTEND MULTIBAND ANTENNA |
43,361 | - |
|
Datasheet | RUN mXTEND™ | Tape & Reel (TR) | Active | Bluetooth, Cellular, Navigation, WiFi | Ultra Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz, 3.5GHz, 3.7GHz | 824MHz ~ 5.875GHz | Chip | 14 | 3 | - | 1.9dBi | - | - | Solder | - | - | - | Surface Mount | 0.094" (2.40mm) | BT, DCS, GNSS, GSM, LTE, PCS, UMTS, WiFi DB |
|
W3006RF ANT 2.4GHZ/5.5GHZ CHIP SLD |
24,191 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Chip | 2 | - | -8dB, -10dB | 3.2dBi, 4.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | WLAN, Zigbee™ |
|
ANT-916-CHP-TRF ANT 916MHZ CHIP SOLDER SMD |
5,251 | - |
|
Datasheet | CHP | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 915MHz | 911MHz ~ 921MHz | Chip | 1 | 2 | - | 0.5dBi | 3 W | - | Solder | - | - | - | Surface Mount | 0.067" (1.70mm) | ISM, LoRa, Sensor Networks, SigFox |
|
EFF6989A3S-19MHF1EMBED,REVIE700,MHF1 |
709 | - |
|
Datasheet | Revie Flex 700 | Bulk | Active | Cellular | Wide Band | 761MHz, 859MHz, 920MHz, 1.45GHz, 1.62GHz, 1.89GHz, 1.92GHz, 2.04GHz, 2.4GHz, 2.6GHz, 3.75GHz, 5.45GHz | 698MHz ~ 6GHz | - | 12 | 2.1, 2.4, 2, 2.3, 1.9, 1.8, 1.7, 1.4, 1.7, 2.1, 1.7, 1.5 | - | 0.5dBi, 0.9dBi, 2dBi, 3.7dBi, 4.1dBi, 3.6dBi, 3.5dBi, 3.7dBi, 3.4dBi, 3dBi, 2.4dBi, 4dBi | 5 W | Cable - 190mm | U.FL | - | - | - | Adhesive | 0.008" (0.20mm) | CAT-M1, Cellular, LTE, NB-IOT, 4G, 5G |
|
M830120RF ANT 1.561GHZ/1.575GHZ CHIP |
14,695 | - |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.561GHz ~ 1.602GHz | Chip | 3 | 1.7 | - | 1.78dBi | 500 mW | - | Solder | - | - | - | Surface Mount | 0.051" (1.30mm) | Beidou, GLONASS, GPS |
|
M830520RF ANT 2.4GHZ/5GHZ CHIP SLDR SMD |
5,232 | - |
|
Datasheet | Savvi™ | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz | Chip | 2 | 2.6, 3 | - | 1.1dBi, 3.2dBi | - | - | Solder | - | - | - | Surface Mount | 0.052" (1.33mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
W3796RF ANT 829MHZ/1.575GHZ FLAT BAR |
10,216 | - |
|
Datasheet | Domino | Tape & Reel (TR) | Active | Cellular, Navigation | Wide Band | 829MHz, 1.575GHz, 1.9GHz, 2.5GHz | 698MHz ~ 960MHz, 1.43GHz ~ 1.66GHz, 1.69GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz | Flat Bar | 4 | 3 | -6dB | 1.5dBi, 2dBi, 5.5dBi, 5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | GPS, LTE |
|

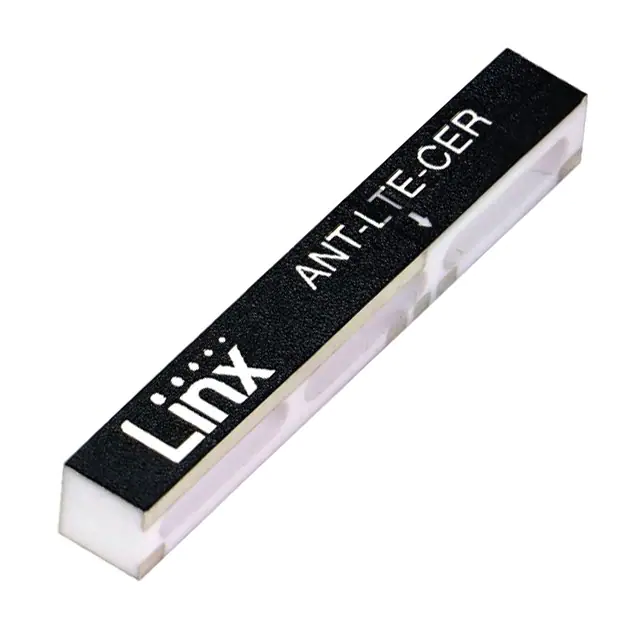

ANT-LTE-CER-TRF ANT 829MHZ/1.94GHZ CHIP SLD |
12,162 | - |
|
Datasheet | CER | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 2.6GHz, 2.7GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.7GHz | Chip | 4 | 4, 3.2, 2.5, 2.5 | - | 4dBi | - | - | Solder | - | - | - | Surface Mount | 0.203" (5.15mm) | CAT-M1, Cellular, LTE, NB-IOT, 3G, 4G |
|
1461530050RF ANT 2.4/5GHZ FLAT PATCH 50MM |
7,470 | - |
|
Datasheet | 146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 3.2dBi, 4.75dBi | 2 W | Cable - 50mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
ANT060EXTERNAL ANTENNA WITH PANEL MOUN |
2,006 | - |
|
Datasheet | - | Box | Active | - | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | Whip, Tilt | 1 | 2 | - | 6dBi | 10 W | - | SMA | - | - | - | Panel Mount | 7.677" (195.00mm) | - |
|
2072350100824 2170MHZ CELLULAR FLEXIBLE AN |
6,360 | - |
|
Datasheet | 207235 | Tray | Active | - | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.94GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | PCB Trace | 2 | - | -4dB, -6dB | 0dBi, 4.3dBi | - | Cable - 100mm | MHF | - | - | - | Adhesive | 0.004" (0.10mm) | General Purpose |
|
H2B1PC1A1C095LDUAL BAND WIFI 2400-2500 4900-59 |
1,091 | - |
|
Datasheet | - | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.4GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 0.9dBi, 3.8dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Surface Mount | 0.020" (0.50mm) | 802.11a/b/g/n/ac, Wi-Fi |
|
|
1461530100RF ANT 2.4/5GHZ FLAT PATCH 100MM |
549 | - |
|
Datasheet | 146153 | Bulk | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz | Flat Patch | 2 | - | -10dB | 3dBi, 4.5dBi | 2 W | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | WLAN, Zigbee™ |
|
2111400100868/915MHZ FLEXIBLE ANTENNA100MM |
5,542 | - |
|
Datasheet | 211140 | Bulk | Active | 802.15.4, General ISM | UHF (300MHz ~ 1GHz) | 869MHz, 915MHz | 868MHz ~ 870MHz, 902MHz ~ 928MHz | PCB Trace | 2 | - | -5dB | 0.3dBi, 1dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.004" (0.10mm) | ISM, LoRa, LPWAN, Sigfox, Zigbee™ |
|
|
1575AT54A0010001ERF ANT 1.575GHZ/1.602GHZ CHIP |
2,394 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.575GHz ~ 1.605GHz | Chip | 2 | - | -9.5dB | 1.3dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.126" (3.20mm) | GLONASS, GPS |
|
M20047-1RF ANT 1.559GHZ-1.606GHZ SMD |
15,997 | - |
|
Datasheet | RADIONOVA® | Tape & Reel (TR) | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.584GHz | 1.559GHz ~ 1.609GHz | Integrated, Trace | 1 | 1.4 | -12dB | 3dBi | - | - | Solder | - | - | - | Surface Mount | 0.043" (1.10mm) | General Purpose |
RF Antennas FAQ
What RF Antennas components can I source from EGOO?
You can browse available RF Antennas product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Antennas parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
