RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADFGP.60A.01.0150DACTIVE ALL BAND GNSS HIGH PRECIS |
3,024 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.176GHz, 1.227GHz, 1.278GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 6 | 2 | - | 1.3dBi, 1.8dBi, -1.3dBi, 4.1dBi, 4.4dBi, 3.7dBi | - | Cable - 150mm, LNA, Filter | SMA Male | - | - | - | Chassis Mount | 0.752" (19.10mm) | Beidou, Galileo, GLONASS, GNSS, GPS |
|
MA1505.AK.0015IN1 GNSS 5G WIFI ANTENNA |
110 | - |
|
Datasheet | - | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.561GHz, 1.575GHz, 1.602GHz, 1.955GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, 5.15GHz ~ 5.925GHz | Module | 13 | 2, 2.5 | - | -0.08dBi, 1.04dBi, 2.03dBi, 3.76dBi, 31.7dBic, 32.4dBic, 32.4dBic, 4.55dBi, 1.4dBi, 4.96dBi, 5.82dBi, 2.55dBi, 5.89dBi | 2 W | Cable - 300mm, LNA, Filter | SMA Male (2), RP-SMA | IP67 | - | - | Panel Mount | 2.263" (57.47mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, LTE, Wi-Fi |
|
UWC.403~5GHZ ULTRA-WIDE BAND (UWB) SMD |
1,831 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (3GHz ~ 4GHz), SHF (f > 4GHz) | 3.49GHz, 3.985GHz, 3.99GHz, 4.49GHz | 3.1GHz ~ 4.75GHz | Chip | 4 | 2.5, 2.8, 3.8, 2.8 | -7.5dB, -6.5dB, -5dB, -5dB | 3.5dBi, 4.5dBi, 4dBi, 4dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | General Purpose |
|
PCS.66.AREACH PCS.66.A WIDEBAND 5G/4G SM |
3,263 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, WiFi | Wide Band | 788.5MHz, 1.4725GHz, 1.85GHz, 2.045GHz, 2.45GHz, 2.6GHz, 4.15GHz, 5.55GHz | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.5GHz ~ 2.7GHz, 3.3GHz ~ 5GHz, 5.25GHz ~ 5.85GHz | Module | 8 | 3 | - | 1.3dBi, 2.5dBi, 3.2dBi, 3.5dBi, 3.5dBi, 5.7dBi, 5.5dBi, 3.5dBi | 5 W | - | Solder | - | - | - | Surface Mount | 0.063" (1.60mm) | CDMA, GSM, HSPA, LTE, UMTS, Wi-Fi |
|

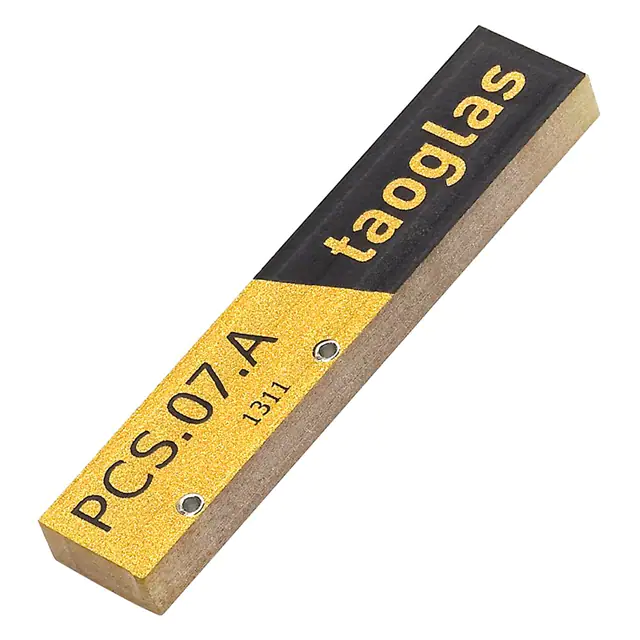

PCS.07.ARF ANT 850MHZ/900MHZ CHIP SLD |
2,768 | - |
|
Datasheet | Nemesis | Tape & Reel (TR) | Active | Cellular | Wide Band | 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Chip | 5 | - | -3dB, -4dB, -5dB, -7dB, -6dB | -1.96dBi, 1.77dBi, 2.9dBi, 2.83dBi, 2.57dBi | - | - | Solder | - | - | - | Surface Mount | 0.118" (3.00mm) | CDMA, DCS, EDGE, GPRS, GSM, HSDPA, PCS, UMTS, WCDMA |
|
PCS.46.A5G/4G WIDEBAND 400-6000MHZ SMD A |
748 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular, WiFi | Wide Band | 440MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 400MHz ~ 480MHz, 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Chip | 9 | - | - | -0.5dBi, 1.6dBi, 2.6dBi, 2.5dBi, 3.6dBi, 5.6dBi, 5.6dBi, 4.8dBi, 4.5dBi | 20 W | - | Solder | - | - | - | Surface Mount | 0.059" (1.50mm) | 3G, 4G, 5G, LTE, Wi-Fi |
|
GP.1575.15.4.B.02RF ANT 1.575GHZ CER PATCH PIN |
1,832 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.574GHz ~ 1.576GHz | Ceramic Patch | 1 | 1.5 | -10dB | 1dBic | - | - | Pin | - | - | - | Adhesive | 0.177" (4.50mm) | GPS |
|

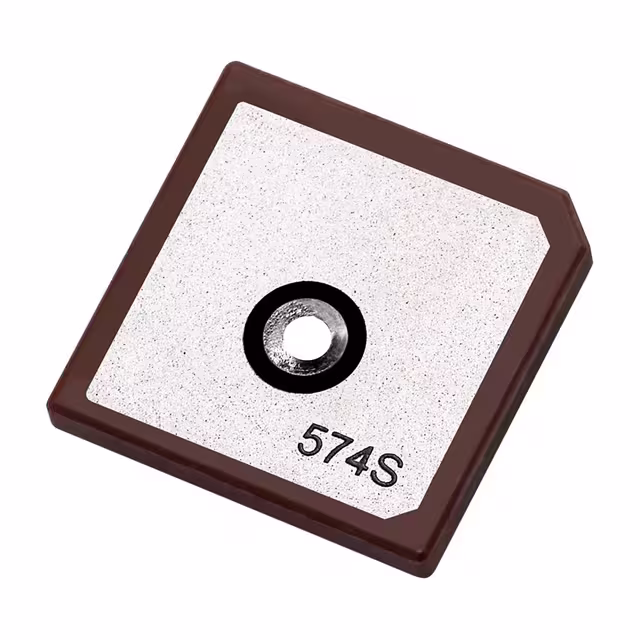

GP.1575.18.2.A.02RF ANT 1.575GHZ CER PATCH PIN |
195 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | - | Ceramic Patch | 1 | 1.5 | -10dB | -0.5dBic | - | - | Pin | - | - | - | Adhesive | 0.079" (2.00mm) | GPS |
|
GP.1575.12.4.A.02RF ANT 1.575GHZ CER PATCH PIN |
391 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.572GHz ~ 1.578GHz | Ceramic Patch | 1 | 2 | -10dB | -0.5dBic | - | - | Pin | - | - | - | Adhesive | 0.177" (4.50mm) | GPS |
|
SWDP.2458.15.4.A.02SWDP.2458.15.4.A.02 5DBI 15MM EM |
217 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.2GHz, 5.675GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.5GHz, 5.5GHz ~ 5.85GHz | Ceramic Patch | 3 | - | - | 5.7dBi, 5.29dBi, 4.03dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.157" (4.00mm) | Wi-Fi |
