RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MA9929.A.0029-IN-1 GUARDIANX WITH GNSS, 4 5G |
1,488 | - |
|
Datasheet | - | Bulk | Active | Cellular, Navigation, WiFi | Wide Band | 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.575GHz, 1.602GHz, 1.795GHz, 1.92GHz, 2.045GHz, 2.45GHz, 2.495GHz, 3.75GHz, 5.5GHz, 5.5375GHz, 6.525GHz | 617MHz ~ 698MHz, 698MHz ~ 806MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz, 5.15GHz ~ 5.85GHz, | Module | 15 | 2 | - | 2.82dBi, 2.84dBi, 2.06dBi, 3.98dBi, 3dBi, 3.2dBi, 3.71dBi, 3.16dBi, 3.92dBi, 2.46dBi, 2.32dBi, 4.25dBi, 1.78dBi, 1.4dBi | 20 W | Cable - 3m, LNA, Filter | Fakra (3) | IP67 | - | - | Adhesive | 0.807" (20.50mm) | 3G, 4G, 5G, Beidou, GLONASS, GPS, GNSS, GSM, LTE, Wi-Fi |
|

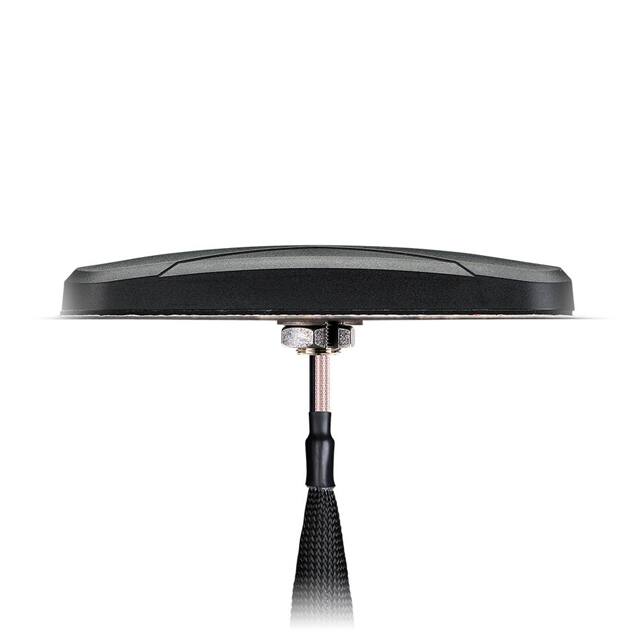

MA450.K.LBICG.003RF ANT 829MHZ/1.575GHZ FLAT BAR |
4,506 | - |
|
Datasheet | Storm | Box | Active | Cellular, Navigation, WiFi | Wide Band | 829MHz, 1.575GHz, 1.94GHz, 2.4GHz, 2.59GHz, 3.45GHz, 5.8GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz, 3.3GHz ~ 3.6GHz | Flat Bar | 7 | 2 | -10dB | 4.4dBi | - | - | RP-SMA Male, SMA Male | IP67 | - | - | Panel Mount | 1.219" (30.95mm) | BEIDOU, GLONASS, GPS, LTE, WLAN |
|
PCS.27.AWI-FI 2.4/5.8/7.125GHZ FR4 PIFA |
1,379 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | WiFi | Wide Band | 2.45GHz, 5.5GHz, 6.525GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz, 5.925GHz ~ 7.125GHz | Chip | 3 | - | - | 1.19dBi, 3.53dBi, 3.94dBi | 2 W | - | Solder | - | - | - | Surface Mount | 0.122" (3.10mm) | Wi-Fi |
|
|
GWLA.15GPS/GALILEO & 2.4/5.8GHZ DUAL-BA |
3,000 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | 802.15.4, Bluetooth, Navigation, WiFi | UHF (1GHz ~ 2GHz), UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 1.561GHz, 1.575GHz, 1.603GHz, 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Chip | 5 | 1, 2 | - | -0.54dBi, -0.16dBi, -0.81dBi, -0.34dBi, 2.12dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | Beidou, Bluetooth, Galileo, GLONASS, GNSS, GPS, Wi-Fi, WLAN, Zigbee™ |
|
|
PCS.25.AWI-FI 2.4GHZ FR4 PIFA ANTENNA WI |
1,947 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PCS.55.M4G/5G SMD FR4 ANTENNA |
990 | - |
|
Datasheet | - | Bulk | Active | Cellular, Navigation | Wide Band | 657MHz, 722MHz, 773MHz, 840MHz, 920MHz, 1.472GHz, 1.581GHz, 1.932GHz, 2.595GHz | 617MHz ~ 698MHz, 698MHz ~ 746MHz, 746MHz ~ 800MHz, 800MHz ~ 880MHz, 880MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.56GHz ~ 1.602GHz, 1.71GHz ~ 2.155GHz, 2.5GHz ~ 2.69GHz | Chip | 9 | - | -5.9dB, -4.7dB, -3.7dB, -3.3dB, -3.1dB, -2.6dB, -2.5dB, -1.8dB | -3.3dBi, 0.2dBi, -0.3dBi, -1dBi, -1.8dBi, 0.4dBi, 1.6dBi, 3.7dBi, 0dBi | 2 W | - | - | - | - | - | Surface Mount | 0.063" (1.60mm) | 3G, 4G, GNSS, LTE |
|

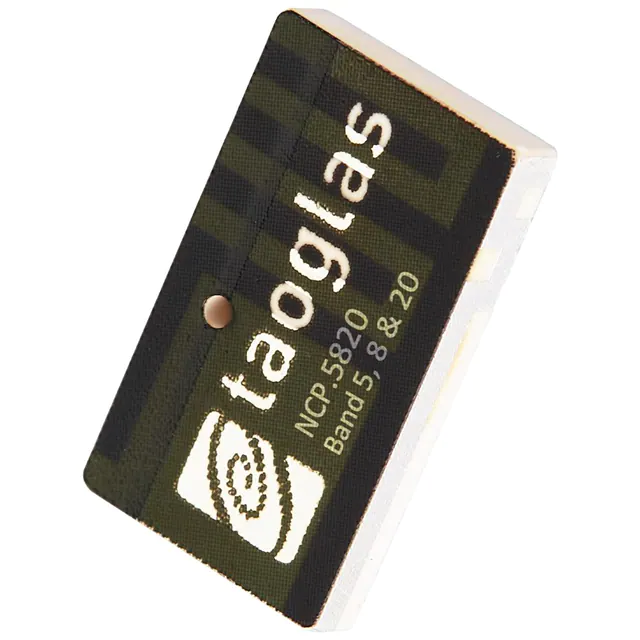

NCP.5820NB-IOT CERAMIC PATCH ANTENNA FOR |
1,577 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz) | 826.5MHz, 859MHz, 920MHz | 791MHz ~ 862MHz, 824MHz ~ 894MHz, 880MHz ~ 960MHz | Ceramic Patch | 3 | - | -4.5dB, -5dB | -0.3dBi, 1.1dBi, 1.7dBi, 0.6dBi, 1.2dBi | 5 W | - | - | - | - | - | Surface Mount | 0.079" (2.00mm) | - |
|
ILA.08RF ANT 868MHZ CHIP SOLDER SMD |
5,971 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 863MHz ~ 870MHz | Chip | 1 | - | -10dB | -0.9dBi | 10 W | - | Solder | - | - | - | Surface Mount | 0.020" (0.50mm) | ISM, LoRa, LPWAN, Sigfox |
|
|
PA.500.AWARRIOR CHIP SMD CERAMIC BAND 28 |
449 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | Cellular | UHF (300MHz ~ 1GHz) | 753MHz | 703MHz ~ 803MHz | Chip | 1 | - | - | -1.3dBi | 5 W | - | SMA Female | - | - | - | Surface Mount | 0.236" (6.00mm) | IoT, LTE |
|
CA.69RF ANT 169MHZ CHIP SOLDER SMD |
3,931 | - |
|
Datasheet | - | Tape & Reel (TR) | Active | - | VHF (f < 300MHz) | 169MHz | 165MHz ~ 173MHz | Chip | 1 | 2 | -10dB | -7dBi | - | - | Solder | - | - | - | Surface Mount | 0.031" (0.80mm) | - |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
