RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AA.250.101111ALL-BAND GNSS MAGNETIC MOUNT ANT |
2,702 | - |
|
Datasheet | - | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.268GHz, 1.278GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Module | 9 | - | - | - | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 1.024" (26.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
CGGBP.25.2.A.02GPS/GLONASS/GALILEO/BEIDOU PATCH |
3,187 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.561GHz, 1.575GHz, 1.602GHz | 1.556GHz ~ 1.566GHz , 1.574GHz ~ 1.576GHz , 1.597GHz ~ 1.607GHz | Ceramic Patch | 3 | - | -6dB | 3.25dBi, 4.35dBi, 3.44dBi | - | - | Pin | - | - | - | Surface Mount | 0.079" (2.00mm) | GLONASS, GNSS, GPS |
|

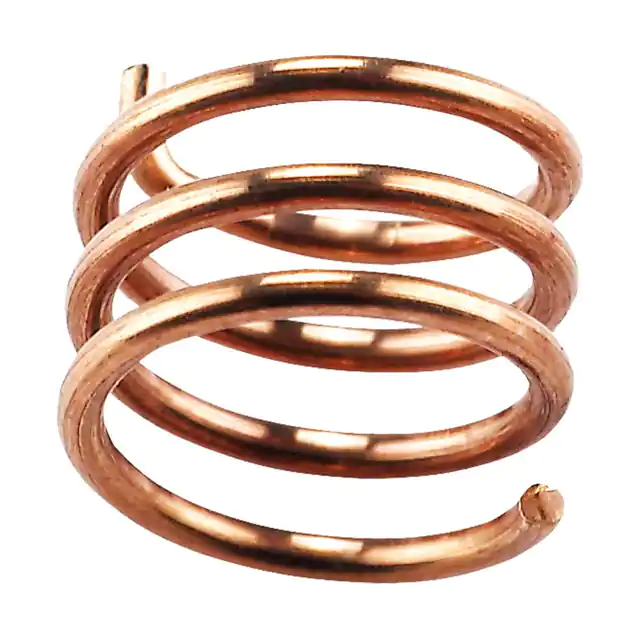

HA.21.ARF ANT 868MHZ HELICAL SOLDER SMD |
1,818 | - |
|
Datasheet | - | Tray | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | - | Helical | 1 | - | -10dB | 1.8dBi | - | - | Solder | - | - | - | Surface Mount | 0.433" (11.00mm) | ISM |
|

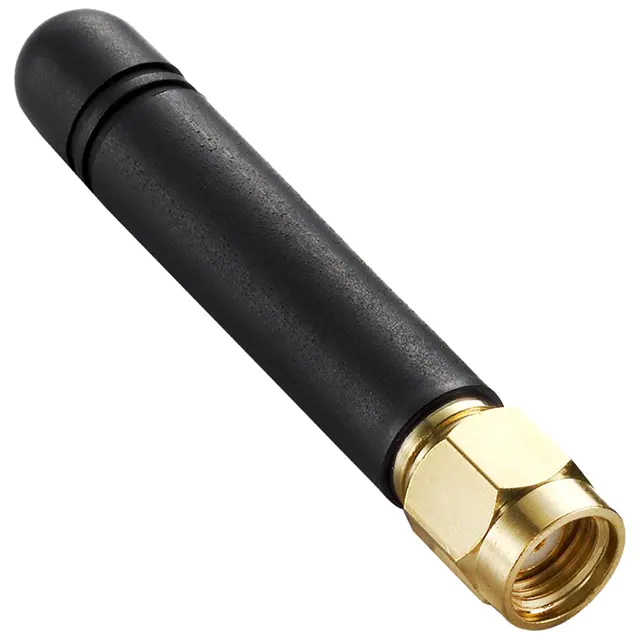

TG.22.0151TG.22 3G/2G CELLULAR CONNECTOR M |
4,184 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 860MHz, 920MHz, 1.795GHz, 1.92GHz, 2.045GHz | 824MHz ~ 896MHz, 880MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz | Whip, Straight | 5 | 3.5 | - | 1.42dBi, 1.91dBi, 2.51dBi, 3.32dBi, 2.89dBi | 20 W | - | RP-SMA Male | - | - | - | Connector Mount | 1.929" (49.00mm) | CDMA, DCS, EDGE, GSM, GPRS, HSPA, PCS, UMTS, WCDMA |
|
TI.08.A.0111TI.08 868MHZ TERMINAL ANTENNA SM |
4,402 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 869MHz | 868MHz ~ 870MHz | Whip, Straight | 1 | 1.5 | - | -1.7dBi | - | - | SMA Male | - | - | - | Connector Mount | 6.614" (168.00mm) | ISM |
|
GW.11.A153WGW.11 2.4GHZ WHITE DIPOLE ANTENN |
2,031 | - |
|
Datasheet | - | Bag | Active | 802.15.4, Bluetooth, Cellular, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | - | Whip, Straight | 1 | 1 | -10dB | 2.3dBi | 1 W | - | RP-SMA Male | - | - | - | Connector Mount | 3.323" (84.40mm) | Bluetooth, GSM, ISM, Wi-Fi, Zigbee™ |
|
GW.48.A151W2.4 / 5.8GHZ DUAL BAND 3-3.5DBI |
3,517 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.45GHz, 5.5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Straight | 2 | - | -10dB, -7dB | 3.42dBi, 4.56dBi | 2 W | - | RP-SMA Male | IP67 | - | - | Connector Mount | 3.524" (89.50mm) | Bluetooth, WLAN |
|
TG.09.0113WRF ANT 892MHZ/1.9GHZ WHIP TILT |
4,904 | - |
|
Datasheet | - | Bag | Active | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Tilt | 2 | - | - | 2dBi, -0.1dBi | 10 W | - | SMA Male | - | - | - | Connector Mount | 2.835" (72.00mm) | CDMA, GSM, UMTS |
|
TG.22.0221RF ANT 892MHZ/1.9GHZ WHIP STR |
1,247 | - |
|
Datasheet | - | Bag | Not For New Designs | Cellular | UHF (300MHz ~ 1GHz), UHF (1GHz ~ 2GHz) | 892MHz, 1.9GHz | 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz | Whip, Straight | 2 | 3 | -10dB | -0.13dBi, 4.08dBi | 5 W | - | FME Female | - | - | - | Connector Mount | 2.059" (52.30mm) | CDMA, GSM, UMTS |
|
TG.08.0723TG.08.0723 CELLULAR GPS / GLONAS |
4,147 | - |
|
Datasheet | - | Bag | Active | Cellular, Navigation | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 753MHz, 892MHz, 1.561GHz, 1.57542GHz, 1.602GHz, 1.795GHz, 2.045GHz, 2.59GHz | 703MHz ~ 803MHz, 824MHz ~ 960MHz, 1.71GHz ~ 1.88GHz, 1.85GHz ~ 1.99GHz, 1.92GHz ~ 2.17GHz, 2.49GHz ~ 2.69GHz | Whip, Tilt | 8 | - | -2dB, -4dB, -5dB, -8dB, -9dB, -10dB | -1.96dBi, 1.82dBi, 1.87dBi, 1.88dBi, 2.3dBi, 3.43dBi, 3.55dBi, 3.55dBi, 3.62dBi | 10 W | - | SMB, Fakra | - | - | - | Connector Mount | 3.130" (79.50mm) | Beidou, CDMA, DCS, Galileo, GLONASS, GPS, HSPA, LTE, PCS, UMTS, WCDMA |
RF Antennas FAQ
How can I narrow the current RF Antennas selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete RF Antennas parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
