RF Antennas
Compare the current RF Antennas RF and Wireless selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FXP612.07.0095ARF ANT FLAT PATCH IPEX MHFI ADH |
4,613 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | - | - | Flat Patch | 3 | 1.3 | -23dB | 4dBi | 5 W | - | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | - | Beidou, GLONASS, GPS |
|
AFXP.125.07.0095AACTIVE MULTI-BAND GNSS FLEXIBLE |
1,969 | - |
|
Datasheet | - | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.561GHz, 1.575GHz, 1.603GHz | - | Flat Patch | 4 | 1 | - | -3.73dBi, -0.71dBi, -0.63dBi, -0.13dBi | - | Cable - 95mm, LNA, Filter | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.091" (2.30mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
AA.166.A.301111AA.166.A.301111 ULYSSES MINIATUR |
3,679 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.559GHz, 1.561GHz, 1.575GHz, 1.592GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.597GHz ~ 1.607GHz | Module | 5 | 5 | -3dB | 1.92dBi, 2.34dBi, 0.34dBi, 2.1dBi, 1.81dBi | - | Cable - 3m, LNA, Filter | SMA Male | IP67 | - | - | Magnetic | 0.394" (10.00mm) | Beidou, Galileo, GLONASS, GPS |
|

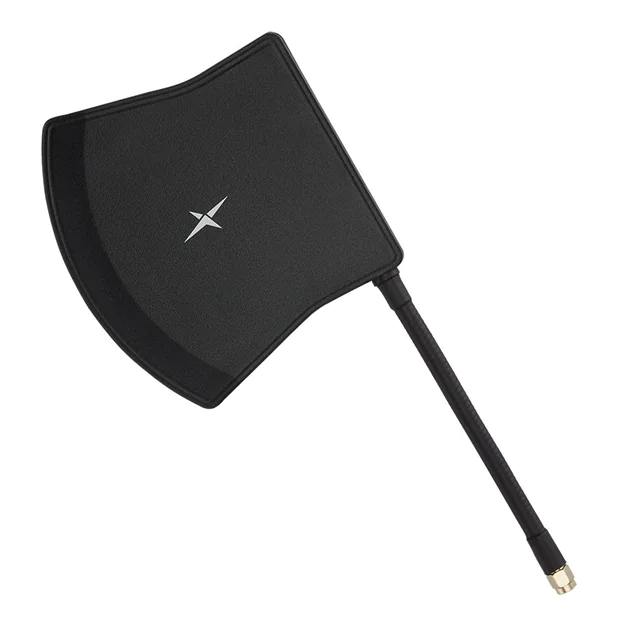

TS.89.4113SIGHUNTER 868 & 915MHZ DIRECTION |
2,362 | - |
|
Datasheet | - | Bulk | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz, 915MHz | - | Module | 2 | - | - | 3.5dBi, 2.7dBi | 10 W | Cable - 127mm | SMA Male | - | - | - | Connector Mount | 4.646" (118.00mm) | ISM, LoRa, Sigfox |
|
WM.86.A.305111CYCLOPS 868MHZ WALL MOUNT FLEXIB |
1,124 | - |
|
Datasheet | - | Bag | Active | General ISM | UHF (300MHz ~ 1GHz) | 868MHz | 850MHz ~ 890MHz | Whip, Straight | 1 | - | -10dB | 2.57dBi | 10 W | Cable - 3m | SMA Male | IP65 | - | - | Bracket Mount | 12.087" (307.00mm) | ISM |
|
|
AHP24510.07.0100CACTIVE GNSS L1,L2 L-BAND STACKED |
3,554 | - |
|
Datasheet | - | Bulk | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.227GHz, 1.249GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.589GHz | 1.217GHz ~ 1.237GHz, 1.241GHz ~ 1.258GHz, 1.525GHz ~ 1.559GHz, 1.559GHz ~ 1.563GHz, 1.563GHz ~ 1.587GHz, 1.569GHz ~ 1.61GHz | Ceramic Patch | 6 | 2 | - | 3.05dBi, 2.86dBi, 4.33dBi, 4.48dBi, 4.5dBi, 2.46dBi | - | Cable - 100mm, LNA, Filter | I-PEX MHFI (U.FL) | - | - | - | Adhesive | 0.596" (15.15mm) | BeiDou, Galileo, GLONASS, GNSS, GPS |
|
|
A.120.A.101111BOLT LOW PROFILE ACTIVE GNSS L1/ |
1,294 | - |
|
Datasheet | - | Bulk | Active | Navigation | Wide Band | 1.176GHz, 1.201GHz, 1.227GHz, 1.248GHz, 1.268GHz, 1.278GHz, 1.542GHz, 1.561GHz, 1.575GHz, 1.602GHz | - | Dome | 10 | 1.5 | - | -1.5dBi, 0.5dBi, 1.8dBi, 1.2dBi, -0.1dBi, -1.5dBi, 2.6dBi, 4.2dBi, 4dBi, 2.7dBi | - | Cable - 1m, LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 1.024" (26.00mm) | BeiDou, Galileo, GLONASS, GNSS, GPS, IRNSS, QZSS, SBAS |
|
MA700.A.ABC.001RF ANT 750/892MHZ DOME SMA MALE |
2,971 | - |
|
Datasheet | Pantheon | Box | Active | Cellular, Navigation | Wide Band | 750MHz, 892MHz, 1.588GHz, 1.9GHz, 2.4GHz, 5.5GHz | 700MHz ~ 800MHz, 824MHz ~ 960MHz, 1.575GHz ~ 1.602GHz, 1.71GHz ~ 2.17GHz, 2.4GHz ~ 2.5GHz, 5GHz ~ 5.9GHz | Dome | 6 | 2, 1.7 | - | 2.4dBi, 1.7dBi, 32dBi, 2.4dBi, 2.1dBi, 3.8dBi | - | LNA, Filter | SMA Male | IP67 | - | - | Panel Mount | 3.374" (85.70mm) | GLONASS, GPS, LTE |
|
OMB.445.05F21RF ANT 4.7GHZ WHIP STR N FEM |
4,491 | - |
|
Datasheet | Barracuda | Tube | Active | - | SHF (f > 4GHz) | 4.7GHz | 4.4GHz ~ 5GHz | Whip, Straight | 1 | 1.5 | - | 7dBi | 100 W | - | N Type Female | - | - | - | Bracket Mount | 10.630" (270.00mm) | - |
|

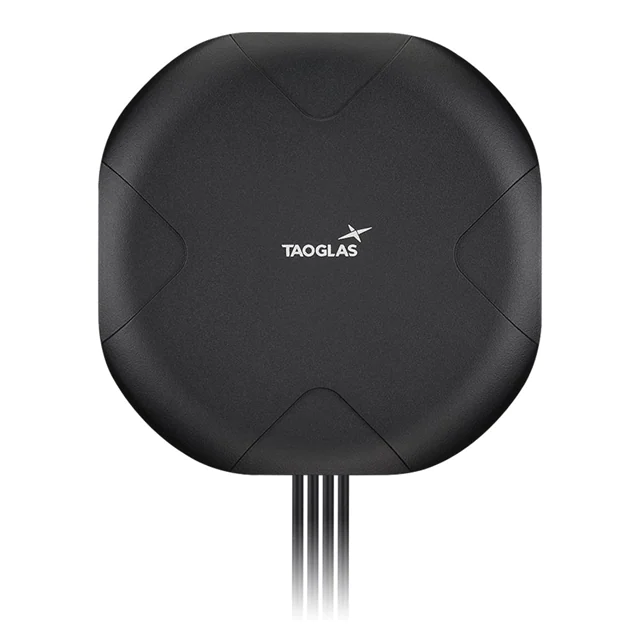

TGX.04.A.001450-6000MHZ CROSS POLARISED WIDE |
2,023 | - |
|
Datasheet | - | Bag | Active | Cellular, WiFi | Wide Band | 450MHz, 657.5MHz, 752MHz, 892MHz, 1.4725GHz, 1.955GHz, 2.495GHz, 4.15GHz, 5.5375GHz | 430MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 824MHz, 824MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 5GHz, 5.15GHz ~ 5.925GHz | Module | 9 | - | - | 1dBi, 1.9dBi, 2.7dBi, 2.8dBi, 3.1dBi, 4.2dBi, 4.3dBi, 3.5dBi, 2.3dBi | 10 W | - | SMA Male | IP67 | - | - | Pole, Wall Mount | 5.866" (149.00mm) | 3G, 4G, 5G, LTE, Wi-Fi |
