RF Antennas
Browse available RF Antennas components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | RF Family/Standard | Frequency Group | Frequency (Center/Band) | Frequency Range | Antenna Type | Number of Bands | VSWR | Return Loss | Gain | Power - Max | Features | Termination | Ingress Protection | Grade | Qualification | Mounting Type | Height (Max) | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ANT-2.4-FPC-LV100UFANT 2.4 FPC 45X7 100MM CBL UFL |
2,513 | - |
|
Datasheet | ANT-2.4-FPC-LV | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.7 | - | 4.3dBi | 2 W | Cable - 100mm | I-PEX MHF1 (U.FL) | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
W3P35X8W04-U100D3B0AANT ASSY, WLAN 04 100 D0230 |
1,459 | - |
|
Datasheet | - | Box | Active | 802.15.4, Bluetooth, WiFi | Wide Band | 2.44GHz, 5.5GHz, 6.475GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz, 5.825GHz ~ 7.125GHz | PCB Trace | 3 | - | -15dB, -10dB, -6dB | 2.3dBi, 5dBi, 2.5dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.016" (0.40mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|

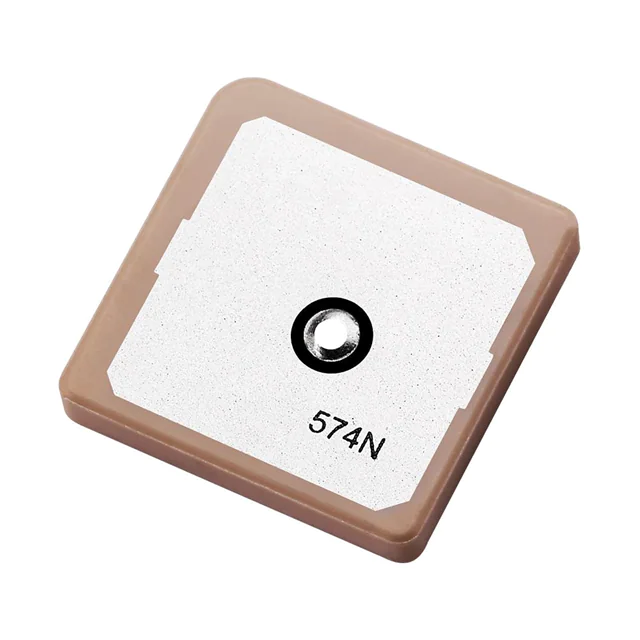

GP.1575.25.4.A.02RF ANT 1.575GHZ CER PATCH PIN |
4,337 | - |
|
Datasheet | - | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz | 1.570GHz ~ 1.580GHz | Ceramic Patch | 1 | 1.2 | -10dB | 1.55dBic | - | - | Pin | - | - | - | Adhesive | 0.197" (5.00mm) | GPS |
|
1461870200RF ANT 2.4/5.5GHZ PCB TRACE U.FL |
1,862 | - |
|
Datasheet | 146187 | Bulk | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -10dB | 4dBi | - | Cable - 200mm | U.FL | - | - | - | Surface Mount | 0.004" (0.10mm) | WLAN |
|
ANT-2.4-LPW-125RF ANT 2.4GHZ WHIP PNL-MNT HINGE |
2,232 | - |
|
Datasheet | - | Bag | Active | Bluetooth, WiFi | UHF (2GHz ~ 3GHz) | 2.4GHz | 2.4GHz ~ 2.483.5GHz | Whip, Tilt | 1 | 1.5 | -14.6dB | 2.8dBi | 10 W | Cable - 125mm | I-PEX MHF1 (U.FL) | - | - | - | Panel Mount | 3.693" (93.79mm) | Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™ |
|
YPR00A0AATERMINAL, HINGE, LTE, SMAM IP66 |
1,089 | - |
|
Datasheet | - | Bag | Active | Cellular | Wide Band | 1.7GHz | 700MHz ~ 2.7GHz | Whip, Straight | 1 | 4.75 | - | 2dBi | - | - | SMA Male | IP66 | - | - | Connector Mount | 7.650" (194.30mm) | LTE |
|
|
YCGO011AAPATCH ACTIVE GNSS L1 UFL 25X25 |
155 | - |
|
Datasheet | - | Bag | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.5825GHz | 1.559GHz ~ 1.606GHz | Ceramic Patch | 1 | - | - | - | - | Cable - 50mm | I-PEX | - | - | - | Adhesive | 0.256" (6.50mm) | GNSS, GPS |
|
ANT-DB1-LPD-125RF ANT 2.4&5GHZ WHP PNL HING UFL |
765 | - |
|
Datasheet | LPD | Bag | Active | WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.85GHz | Whip, Tilt | 2 | 1.5 | -14.7dB, -14.2dB | 2.8dB, 4.5dB | 10 W | Cable - 125mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Panel Mount | 4.134" (105.00mm) | ISM, U-NII, WiFi, WLAN |
|
1001932FT-AA10L0100RF ANT 2.4GHZ/5GHZ PCB TRACE ADH |
1,012 | - |
|
Datasheet | Prestta™ | Bag | Active | 802.15.4, Bluetooth, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4GHz, 5GHz | 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz | PCB Trace | 2 | 2 | - | 2.5dBi, 3.7dBi, 3.4dBi, 4.4dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | Bluetooth, Wi-Fi, WLAN, Zigbee™ |
|
|
EFB2455A3S-20MHF1EMBED,PIFA,200M 2.4/5.5GHZ,MHF1, |
390 | - |
|
Datasheet | FlexPIFA™ | Bag | Active | - | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.44GHz, 5.4GHz | 2.4GHz ~ 2.48GHz, 4.9GHz ~ 5.9GHz | FlexPIFA | 2 | 2.5, 3 | - | 2.5dBi, 3dBi | - | Cable - 200mm | MHF1 | - | - | - | Adhesive | 0.098" (2.50mm) | - |
|
1462200200RF ANT 1.561/1.575GHZ PCB 200MM |
1,091 | - |
|
Datasheet | 146220 | Bulk | Active | Navigation, WiFi | Wide Band | 1.561GHz, 1.575GHz, 1.602GHz, 2.4GHz, 5GHz | 5.15GHz ~ 5.85GHz, 3GHz ~ 6GHz | PCB Trace | 5 | - | -8dB | 2.1dBi, 2.6dBi, 3dBi, 3.3dBi | 2 W | Cable - 200mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.032" (0.81mm) | BeiDou, GLONASS, WiMax, WLAN, Wi-Fi |
|
ANT-2.4-FPC-LH100M4ANT 2.4 FPC 45X7 100 CBL MHF4 |
1,873 | - |
|
Datasheet | ANT-2.4-FPC-LH | Bag | Active | 802.15.4, Bluetooth, General ISM, WiFi | UHF (2GHz ~ 3GHz) | 2.45GHz | 2.4GHz ~ 2.5GHz | PCB Trace | 1 | 1.4 | - | 6.1dBi | 2 W | Cable - 100mm | MHF4 | - | - | - | Adhesive | 0.004" (0.10mm) | Bluetooth, ISM, Wi-Fi, Zigbee™ |
|
1461531300RF ANT 2.4417/5.415GHZ PCB 300MM |
1,882 | - |
|
Datasheet | 146153 | Tray | Active | 802.15.4, WiFi | UHF (2GHz ~ 3GHz), SHF (f > 4GHz) | 2.4417GHz, 5.415GHz | 2.4GHz, 5GHz | PCB Trace | 2 | - | -10dB | 2.4dBi, 3.2dBi | - | Cable - 300mm | I-PEX MHF4L | - | - | - | Adhesive | 0.004" (0.10mm) | Wi-Fi, Zigbee™ |
|

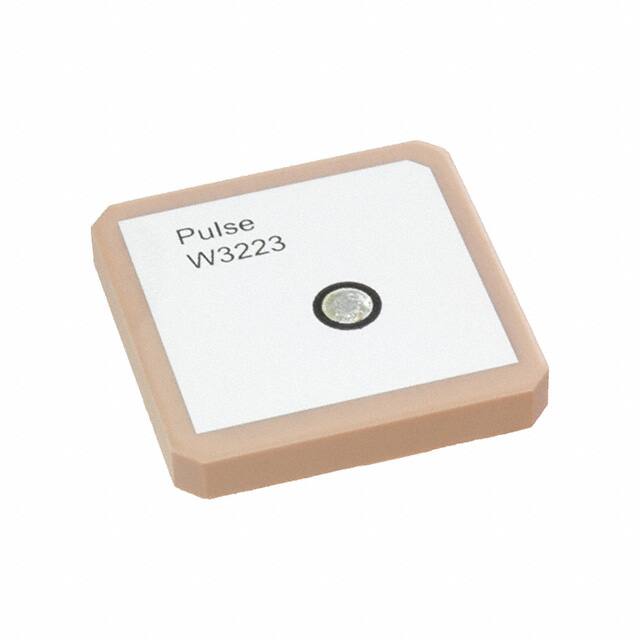

W322325X25X4MM GPS/GLONASSPIN MOUNT |
700 | - |
|
Datasheet | Ceramic Patch | Tray | Active | Navigation | UHF (1GHz ~ 2GHz) | 1.575GHz, 1.602GHz | 1.574GHz ~ 1.576GHz, 1.598GHz ~ 1.606GHz | Ceramic Patch | 2 | - | -10dB | 4dBi | - | - | Pin | - | - | - | Adhesive | 0.157" (4.00mm) | GLONASS, GPS |
|
SRFL026-100RF ANT 748MHZ/892MHZ FLAT PATCH |
1,792 | - |
|
Datasheet | Mitis | Bulk | Active | Cellular | Wide Band | 748MHz, 892MHz, 1.94GHz, 2.35GHz, 2.6GHz | 698MHz ~ 798MHz, 824MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz | Flat Patch | 5 | 3.1 | -10dB | 3.5dBi | - | Cable - 100mm | U.FL (UMCC), I-PEX MHF1 | - | - | - | Adhesive | 0.006" (0.15mm) | GSM, LTE, W-CDMA |
|
NN02-220ALL MXTEND MULTIBAND ANTENNA |
316 |
1+：$3.20000 10+：$2.76400 25+：$2.61120 100+：$2.40180 250+：$2.27616 500+：$2.18734 |
|
Datasheet | ALL mXTEND™ | Tape & Reel (TR) | Active | Cellular | Wide Band | 700MHz, 800MHz, 850MHz, 900MHz, 1.7GHz, 1.8GHz, 1.9GHz, 2GHz, 2.1GHz, 2.3GHz, 2.5GHz, 2.6GHz | 698MHz ~ 2.69GHz | Chip | 12 | 3 | - | 3.1dBi | - | - | Solder | - | - | - | Surface Mount | 0.079" (2.00mm) | DCS, GSM, LTE, PCS, UMTS |
|
ANT4005B000RWHEXSRF ANT 829MHZ/2.2GHZ CHIP SLD |
1,800 | - |
|
Datasheet | 4005 | Tape & Reel (TR) | Active | - | UHF (300MHz ~ 1GHz), UHF (2GHz ~ 3GHz) | 829MHz, 2.2GHz | 698MHz ~ 960MHz, 1.71GHz ~ 2.69GHz | Chip | 2 | 3 | - | 3.2dBi, 4dBi | 1 W | - | Solder | - | - | - | Surface Mount | 0.236" (6.00mm) | General Purpose |
|
|
1005460F0-AA10L02005G/4G WIDE BAND FPC EMBEDDED ANT |
544 | - |
|
Datasheet | - | Box | Active | Cellular | Wide Band | 789MHz, 1.8GHz, 2.5GHz, 3.55GHz, 5.5GHz | 617MHz ~ 960MHz, 1.4GHz ~ 2.2GHz, 2.3GHz ~ 2.7GHz, 3.3GHz ~ 3.8GHz, 5GHz ~ 6GHz | Flat Patch | 5 | 2, 2.1, 2.4 | - | 3.4dBi, 4dBi, 3dBi, 2.5dBi, 4.2dBi | 2 W | Cable - 200mm | MHF4L, U.FL | - | - | - | Adhesive | 0.008" (0.20mm) | LoRa, LTE, Sigfox |
|
WCP3015W08-U100D3B0AANTENNA ASSY, WIFI STRAIGHT, 100 |
281 | - |
|
Datasheet | W | Box | Active | WiFi | UHF (2GHz ~ 3GHz) | 2.44GHz, 5.5GHz | 2.4GHz ~ 2.48GHz, 5.15GHz ~ 5.85GHz | PCB Trace | 2 | - | -8.4dB, 8.7dB | 3dBi, 6.7dBi | - | Cable - 100mm | U.FL | - | - | - | Adhesive | 0.031" (0.80mm) | Wi-Fi |
|
|
EFF6060A3S-20MHF1REVIE 600 5G CAT M1 NB-IOT ANT |
231 | - |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Adhesive | - | - |
RF Antennas FAQ
What RF Antennas components can I source from EGOO?
You can browse available RF Antennas product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete RF Antennas parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
