Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-15113-078L100B-67SPEAKER 8OHM 700MW TOP PORT 91DB |
148 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
|
CMS-151135-076L100B-67SPEAKER 6OHM 700MW TOP PORT 92DB |
135 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 92.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
GC0281MSPEAKR 8OHM 100MW TOP PORT 112DB |
1,922 | - |
|
Datasheet | GC | Tray | Active | Magnetic | General Purpose | 0 Hz ~ 2.8 kHz | - | 8 Ohms | 91.00 | - | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.102" Dia (28.00mm) |
|
CMS-25145-158SPSPEAKER 8OHM 1.5W TOP PORT 93DB |
489 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 10 kHz | 700Hz | 8 Ohms | 93.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.8 W | Top | Rectangular | Foam | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
CMR-15062S-67SPEAKR 32OHM 20MW TOP PORT 117DB |
844 | - |
|
Datasheet | CMR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 550Hz | 32 Ohms | 117.00 | - | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
|
CMS-15118D-SPSPEAKER 8OHM 700MW TOP PORT 91DB |
667 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 425 Hz ~ 10 kHz | 500Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CDS-4020-16SPEAKER 16OHM 1.5W TOP PORT 90DB |
330 | - |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 16 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|

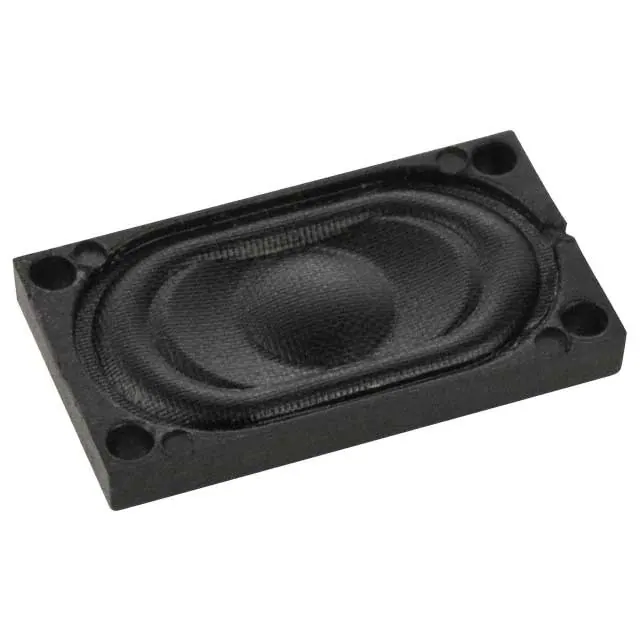

CDS-25148SPEAKER 8OHM 1.5W TOP PORT 73DB |
2,226 | - |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 20 kHz | 750Hz | 8 Ohms | 73.00 | 1W/1M | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
CMS-15116-SPSPEAKER 6OHM 940MW TOP PORT 89DB |
431 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 467.5 Hz ~ 15 kHz | 550Hz | 6 Ohms | 89.00 | 940mW/100mm | Sound Pressure Level (SPL) | 940 mW | 1.3 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CVS-2308SPEAKER 8OHM 100MW TOP PORT 77DB |
979 | - |
|
Datasheet | CVS | Tray | Active | Magnetic | General Purpose | 1.2 kHz ~ 6 kHz | 1500Hz | 8 Ohms | 77.00 | 1W/1M | Sound Pressure Level (SPL) | 100 mW | 150 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | Washable | PC Pins | 0.906" Dia (23.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
