Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CES-503528-28PM-67SPEAKER 8OHM 2W TOP PORT 97DB |
433 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 544 Hz ~ 20 kHz | 680Hz | 8 Ohms | 97.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Rectangular | Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.969" L x 1.378" W (50.00mm x 35.00mm) |
|
CES-6123-34PM-67ENCLOSED SPEAKER, 1W, 8OHM |
474 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 4.5 kHz | 750Hz | 4 Ohms | 116.00 | 3W/100mm | Sound Pressure Level (SPL) | 3 W | 4 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | IPX7 | - | Wire Leads | 2.402" Dia (61.00mm) |
|
|
CDS-4410-54SPSPEAKER, 45 MM, 10 MM DEEP, PU+P |
388 | - |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 360 Hz ~ 4 kHz | 450Hz | 4 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 5 W | 6 W | Top | Round | Paper, Polyurethane (PU) | Nd-Fe-B | - | - | Solder Pads | 1.772" Dia (45.00mm) |
|
GF0876MSPEAKER 8OHM 12W TOP PORT 97DB |
1,491 | - |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 580 Hz ~ 18 kHz | - | 8 Ohms | 97.00 | 1W/500mm | Sound Pressure Level (SPL) | 12 W | 15 W | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Ferrite | - | - | Solder Eyelet(s) | 3.425" L x 3.425" W (87.00mm x 87.00mm) |
|
|
CMSM-3116-3416.6MM, 3W, 4OHM, 280HZ |
410 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 224 Hz ~ 20 kHz | 280Hz | 4 Ohms | 98.00 | 3W/100mm | Sound Pressure Level (SPL) | 3 W | 3.5 W | Top | Round, Square Frame | Aluminum (AI), Rubber | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Eyelet(s) | 1.244" L x 1.244" W (31.60mm x 31.60mm) |
|
|
CMSM-2313-1823MM, 1W, 8OHM, 325HZ |
872 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 325 Hz ~ 20 kHz | 325Hz | 8 Ohms | 97.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.906" Dia (23.00mm) |
|
CMS0321KLXSPEAKER 8OHM 2W TOP PORT 86DB |
697 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 240 Hz ~ 15 kHz | 300Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.260" L x 1.260" W (32.00mm x 32.00mm) |
|
|
CDSM-6631-4866MM, 4W, 8OHM, 200HZ |
461 | - |
|
Datasheet | CDS | Tray | Active | Magnetic | General Purpose | 160 kHz ~ 20 kHz | 200Hz | 8 Ohms | 110.00 | 4W/100mm | Sound Pressure Level (SPL) | 4 W | 5 W | Top | Round, Square Frame | Cloth, Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.598" L x 2.598" W (66.00mm x 66.00mm) |
|

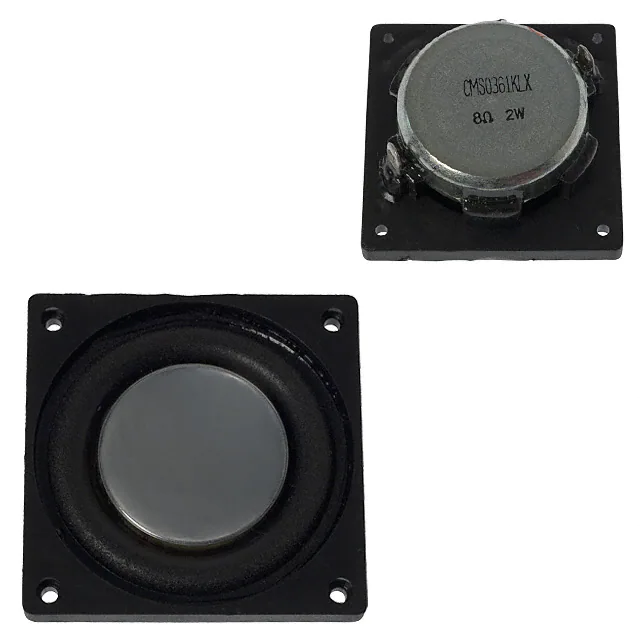

CMS0361KLXSPEAKER 8OHM 2W TOP PORT 82DB |
1,178 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 184 Hz ~ 20 kHz | 230Hz | 8 Ohms | 82.00 | 1W/500mm | Sound Pressure Level (SPL) | 2 W | 4 W | Top | Round, Square Frame | Paper | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.421" L x 1.421" W (36.10mm x 36.10mm) |
|

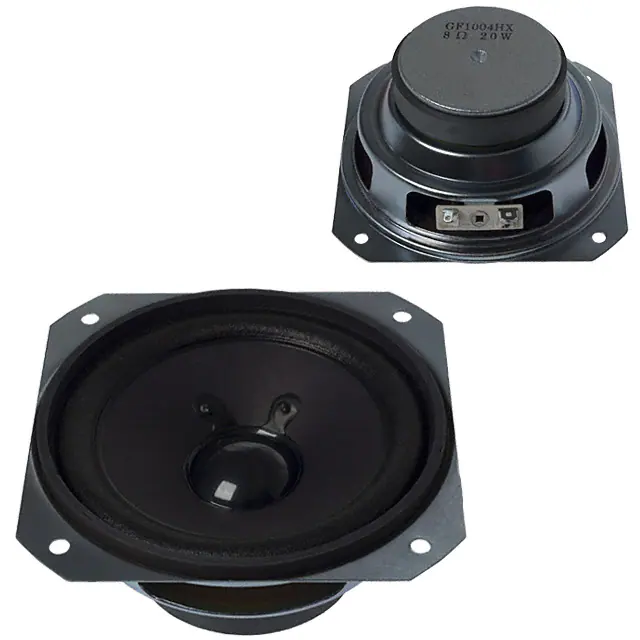

GF1004HSPEAKER 8OHM 20W TOP PORT 90DB |
2,375 | - |
|
Datasheet | GF | Box | Active | Magnetic | General Purpose | 100 Hz ~ 10 kHz | 100Hz | 8 Ohms | 90.00 | 1W/500mm | Sound Pressure Level (SPL) | 20 W | 40 W | Top | Round, Square Frame | Paper | Ferrite | - | - | Solder Eyelet(s) | 4.016" L x 4.016" W (102.00mm x 102.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
