Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CES-571423-28PMBSPEAKER 8OHM 2W TOP PORT 100DB |
290 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 20 kHz | 700Hz | 8 Ohms | 100.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 2.854" L x 0.906" W (72.50mm x 23.00mm) |
|
|
CES-571423-28PMASPEAKER 8OHM 2W TOP PORT 100DB |
259 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 20 kHz | 700Hz | 8 Ohms | 100.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Wire Leads with Connector | 2.854" L x 0.906" W (72.50mm x 23.00mm) |
|
CLS0571M-L152SPEAKER 8OHM 200MW TOP PORT 89DB |
376 | - |
|
Datasheet | CLS | Box | Active | Magnetic | Low Profile | 530 Hz ~ 20 kHz | 530Hz | 8 Ohms | 89.00 | 200mW/500mm | Sound Pressure Level (SPL) | 200 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 2.244" Dia (57.00mm) |
|

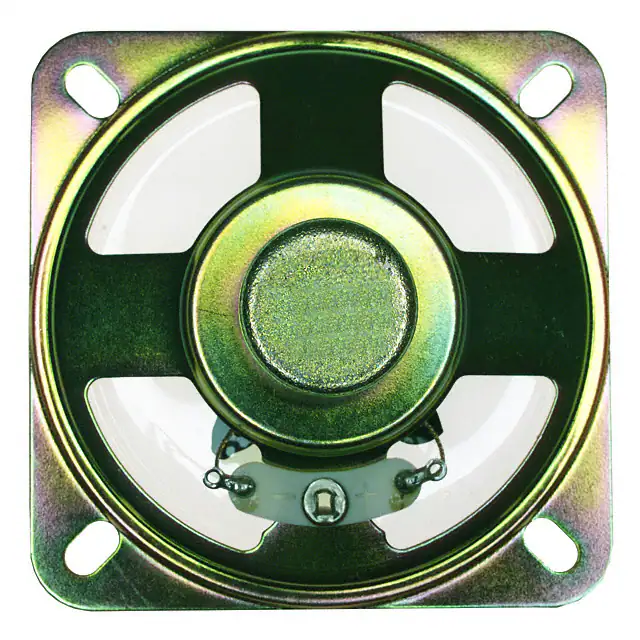

GA0506MSPEAKER 8OHM 250MW TOP PORT 79DB |
431 | - |
|
Datasheet | GA | Box | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 500Hz | 8 Ohms | 79.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
|

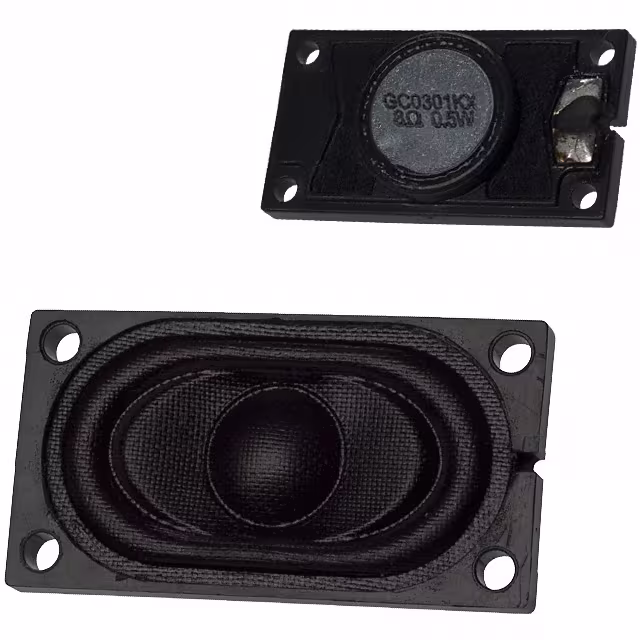

GC0301KSPEAKER 8OHM 500MW TOP PORT 77DB |
669 | - |
|
Datasheet | GC | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 4 kHz | 500Hz | 8 Ohms | 77.00 | 500mW/500mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Pads | 1.181" L x 0.630" W (30.00mm x 16.00mm) |
|
|
GA0576MSPEAKER 8OHM 250MW TOP PORT 80DB |
106 | - |
|
Datasheet | GA | Box | Active | Magnetic | General Purpose | 500 Hz ~ 12 kHz | 500Hz | 8 Ohms | 80.00 | 250mW/500mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round, Square Frame | Polyester, Polyethylene Terephthalate (PET) | Alnico (AlNiCo) | - | - | Solder Eyelet(s) | 2.244" L x 2.244" W (57.00mm x 57.00mm) |
|
CDS-40304-L1006SPEAKER 4OHM 2W TOP PORT 79DB |
774 | - |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 320 Hz ~ 20 kHz | 400Hz | 4 Ohms | 79.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 1.575" L x 1.181" W (40.00mm x 30.00mm) |
|
CES-703316-28PMSPEAKER 8OHM 2W TOP PORT 102DB |
375 | - |
|
Datasheet | CES | Bag | Active | Magnetic | General Purpose, Enclosure Included | 650 Hz ~ 20 kHz | 650Hz | 8 Ohms | 102.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Rectangular | Paper/Cloth | Nd-Fe-B | - | - | Wire Leads | 2.756" L x 1.299" W (70.00mm x 33.00mm) |
|
CES-391715-18PM-67SPEAKER 8OHM 1W TOP PORT 92DB |
334 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose, Enclosure Included | 880 Hz ~ 6 kHz | 1.1kHz | 8 Ohms | 92.00 | 1W/100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Polyurethane (PU), Polyethylenimine (PEI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Wire Leads with Connector | 1.260" L x 0.689" W (32.00mm x 17.50mm) |
|

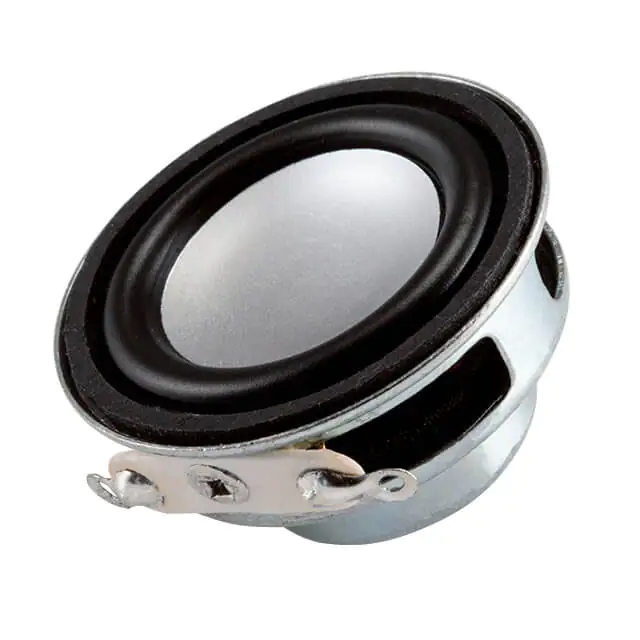

CMS-3150-26SPSPEAKER 6OHM 2W TOP PORT 97DB |
129 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 248 Hz ~ 20 kHz | 310Hz | 6 Ohms | 97.00 | 2W/100mm | Sound Pressure Level (SPL) | 2 W | 2.5 W | Top | Round | Aluminum, Polyurethane (PU) | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.220" Dia (31.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
