Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPKM.2413.8.ASPEAKR 8 OHM 650MW TOP 93DB |
1,122 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 10 Hz ~ 11 kHz | 1kHz | 8 Ohms | 93.00 | 500mW/100mm | Sound Pressure Level (SPL) | 650 mW | 930 mW | Top | Oval, Rectangular Frame | - | Nd-Fe-B | - | - | Wire Leads with Connector | 1.102" L x 0.354" W (28.00mm x 9.00mm) |
|
SP-1510SPEAKER 8OHM 500MW TOP PORT 85DB |
326 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1000Hz | 8 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B-N38 | - | - | Wire Leads | 0.591" L x 0.394" W (15.00mm x 10.00mm) |
|
SM280508-1SPEAKER 8OHM 500MW TOP PORT 97DB |
1,193 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 97.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
SP-1504-17SPEAKER 8OHM 500MW TOP PORT 93DB |
593 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 1kHz | 8 Ohms | 93.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyethylene Naphthalate (PEN) | Nd-Fe-B N42 | - | - | Wire Leads | 0.591" Dia (15.00mm) |
|
SP-1511S-4SPEAKER 8OHM 700MW TOP PORT 82DB |
277 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 950Hz | 8 Ohms | 82.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SP-1511S-2SPEAKER 8OHM 700MW TOP PORT 83DB |
112 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 3.4 kHz | 850Hz | 8 Ohms | 83.00 | 100mW | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | - | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CDMG13008L-02SPEAKER 8OHM 200MW TOP PORT 75DB |
870 | - |
|
Datasheet | CDMG | Tray | Active | Magnetic | General Purpose | 1.05 kHz ~ 20 kHz | 1050Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.512" Dia (13.00mm) |
|

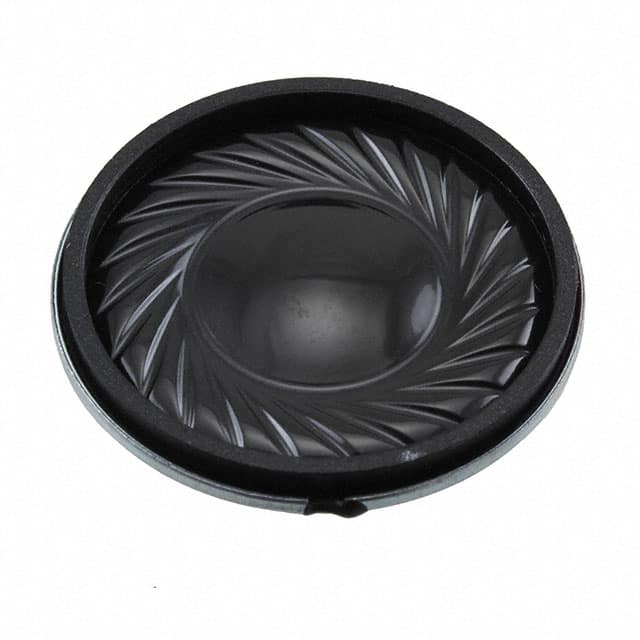

SP-2805SPEAKER 8OHM 300MW TOP PORT 91DB |
169 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 600Hz | 8 Ohms | 91.00 | 100mW/100mm | Sound Pressure Level (SPL) | 300 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
CMS-16093-076SSPEAKER 6OHM 700MW TOP PORT 90DB |
2,734 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-16093-078SSPEAKER 8OHM 700MW TOP PORT 91DB |
1,158 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-151125-076SSPEAKER 6OHM 700MW TOP PT 92.5DB |
899 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-15113-078SSPEAKER 8OHM 700MW TOP PORT 91DB |
842 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SM160816-1SPEAKR 16OHM 300MW TOP PORT 85DB |
660 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 880 Hz ~ 20 kHz | - | 16 Ohms | 85.00 | 100mm | Sound Pressure Level (SPL) | 300 mW | 600 mW | Top | Round | Polyethylene Naphthalate (PEN) | - | - | - | Solder Pads | 0.630" Dia (16.00mm) |
|
CMS-151125-076L100SPEAKER 6OHM 700MW TOP PT 92.5DB |
386 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 6 Ohms | 92.50 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SM230808-1SPEAKER 8OHM 1W TOP PORT 92DB |
439 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 950 Hz ~ 5 kHz | 950Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.906" Dia (23.00mm) |
|

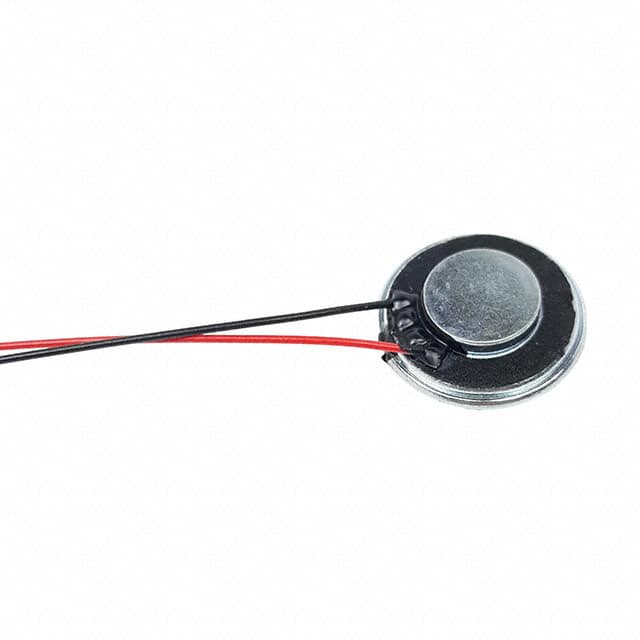

SP-2306-1SPEAKER 8OHM 1W TOP PORT 87DB |
136 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 750Hz | 8 Ohms | 87.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | N38 | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|
CMS-151125-078L100SPEAKER 8OHM 700MW TOP PORT 91DB |
688 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 700Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CMS-16093-076L100SPEAKER 6OHM 700MW TOP PORT 90DB |
536 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 600Hz | 6 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-160925-078L100SPEAKER 8OHM 700MW TOP PORT 90DB |
265 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 90.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Wire Leads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
CMS-16093-078SP-67SPEAKER 8OHM 700MW TOP PORT 91DB |
958 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 550Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
