Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-25145-158SPSPEAKER 8OHM 1.5W TOP PORT 93DB |
489 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | General Purpose | 560 Hz ~ 10 kHz | 700Hz | 8 Ohms | 93.00 | 1.5W/100mm | Sound Pressure Level (SPL) | 1.5 W | 1.8 W | Top | Rectangular | Foam | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.551" W (25.00mm x 14.00mm) |
|
AS01508AO-SC-WP-RSPEAKER 8OHM 700MW TOP PORT 94DB |
11,457 | - |
|
Datasheet | Slim Line Micro | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 14 kHz | 500Hz | 8 Ohms | 94.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP65 - Dust Tight, Water Resistant | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
AS01308MR-2-RSPEAKER 8OHM 200MW TOP PORT 85DB |
3,874 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 700 Hz ~ 5 kHz | 1100Hz | 8 Ohms | 85.00 | 100mW/100mm | Sound Pressure Level (SPL) | 200 mW | 300 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd | - | - | Solder Pads | 0.512" Dia (13.00mm) |
|
CMR-15062S-67SPEAKR 32OHM 20MW TOP PORT 117DB |
844 | - |
|
Datasheet | CMR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 550Hz | 32 Ohms | 117.00 | - | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
|

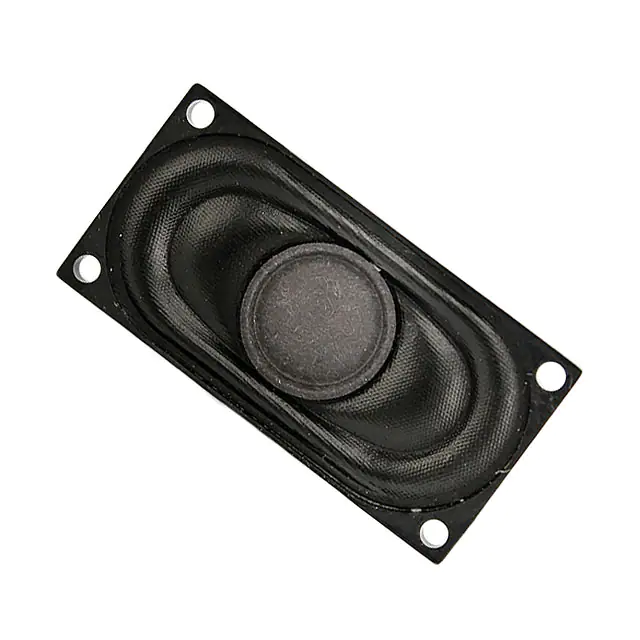

SP-2040SPEAKER 8OHM 1W TOP PORT 86DB |
105 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 650 Hz ~ 6 kHz | 650Hz | 8 Ohms | 86.00 | 1W/500mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
AS04004CO-2-RSPEAKER 4OHM 1.5W TOP PORT 84DB |
347 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 200 Hz ~ 20 kHz | 550Hz | 4 Ohms | 84.00 | 1W/500mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Rectangular | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
AR01232MS-SC12-WP-2-RSPEAKR 32OHM 20MW TOP PORT 117DB |
442 | - |
|
Datasheet | AR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 450Hz | 32 Ohms | 117.00 | 10mm | Sound Pressure Level (SPL) | 20 mW | 30 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
|
AR01532MS-SC15-WP-RSPEAKR 32OHM 20MW TOP PORT 108DB |
155 | - |
|
Datasheet | AR | Tray | Active | Magnetic | Receiver | 300 Hz ~ 7 kHz | 400Hz | 32 Ohms | 108.00 | - | Sensitivity | 20 mW | 30 mW | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | - | 0.591" L x 0.236" W (15.00mm x 6.00mm) |
|

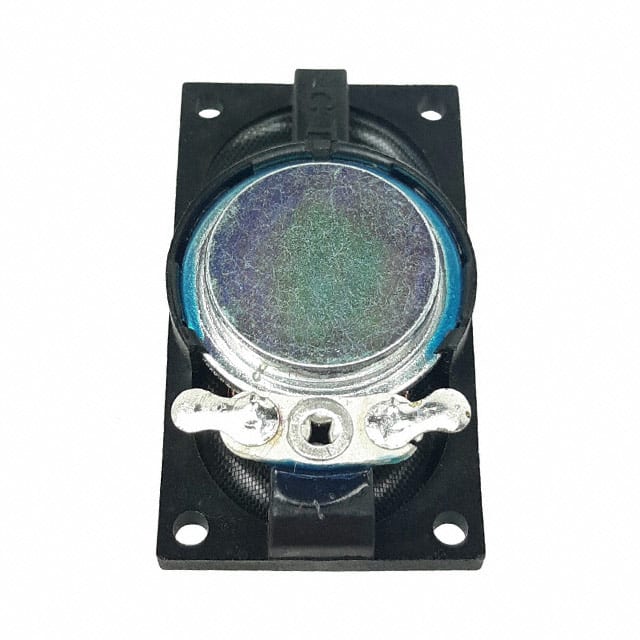

SP-3508YSPEAKER 8OHM 1W TOP PORT 88DB |
507 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 14 kHz | 600Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.378" L x 0.787" W (35.00mm x 20.00mm) |
|
AS01606MS-SP16-WP-RSPEAKER 6OHM 940MW TOP PORT 91DB |
212 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 6 Ohms | 91.00 | - | Sensitivity | 940 mW | 1.2 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
SM450508-1SPEAKER 8OHM 1W TOP PORT 102DB |
261 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 6 kHz | 500Hz | 8 Ohms | 102.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.772" Dia (45.00mm) |
|
SM360508-2SPEAKER 8OHM 1W TOP PORT 105DB |
136 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 11 kHz | 550Hz | 8 Ohms | 105.00 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.417" Dia (36.00mm) |
|
SP-5009SPEAKER 8OHM 500MW TOP PORT 93DB |
103 | - |
|
Datasheet | SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 450Hz | 8 Ohms | 93.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.969" Dia (50.00mm) |
|
SP-5709SPEAKER 8OHM 500MW TOP PORT 96DB |
507 | - |
|
Datasheet | SP | Tray | Active | Magnetic | General Purpose | 400 Hz ~ 6 kHz | 400Hz | 8 Ohms | 96.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 2.244" Dia (57.00mm) |
|
CMS-15118D-SPSPEAKER 8OHM 700MW TOP PORT 91DB |
667 | - |
|
Datasheet | CMS | Tray | Active | Magnetic | Low Profile | 425 Hz ~ 10 kHz | 500Hz | 8 Ohms | 91.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|

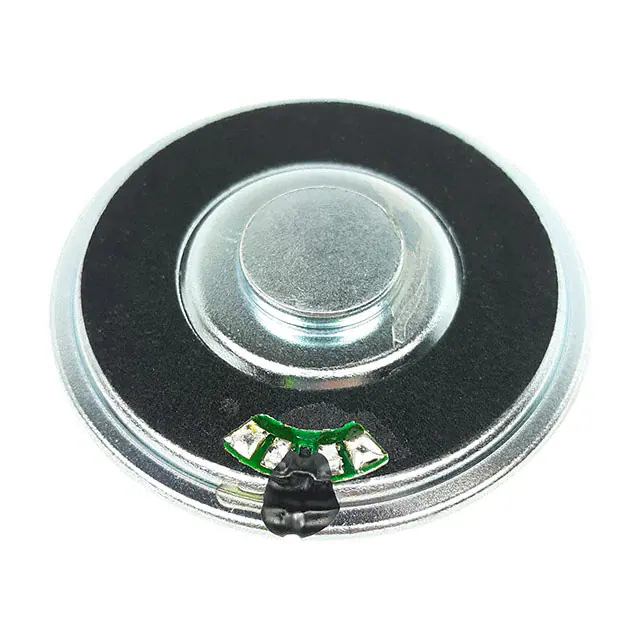

SP-5708SPEAKER 8OHM 1.5W TOP PORT 96DB |
281 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 500Hz | 8 Ohms | 96.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Eyelet(s) | 2.244" Dia (57.00mm) |
|
SP-4008YSPEAKER 4OHM 2W TOP PORT 90DB |
172 | - |
|
Datasheet | SP | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 10 kHz | 550Hz | 4 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
SM150908-4SPEAKER 8OHM 1W TOP PORT 95.5DB |
513 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 900 Hz ~ 10 kHz | 900Hz | 8 Ohms | 95.50 | 100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | - | - | - | - | - | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
AS01506MS-SC15-WP-RSPEAKER 6OHM 1W TOP PORT 93DB |
160 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 650 Hz ~ 20 kHz | 650Hz | 6 Ohms | 93.00 | - | Sensitivity | 1 W | 1.2 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
CDS-4020-16SPEAKER 16OHM 1.5W TOP PORT 90DB |
330 | - |
|
Datasheet | CDS | Box | Active | Magnetic | General Purpose | 440 Hz ~ 20 kHz | 550Hz | 16 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1.5 W | 3 W | Top | Oval, Rectangular Frame | Cloth | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
Speakers FAQ
What Speakers components can I source from EGOO?
You can browse available Speakers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Speakers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
