Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

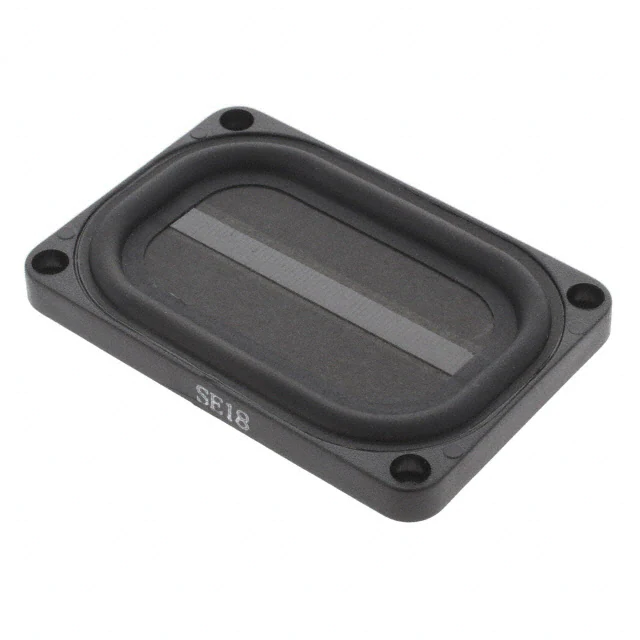

SC 4.6 FL - 8 OHMSPEAKER 8OHM 4W TOP PORT 80DB |
136 | - |
|
Datasheet | - | Bulk | Active | - | General Purpose | 100 Hz ~ 20 kHz | 200Hz | 8 Ohms | 80.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 5 W | Top | Oval, Rectangular Frame | - | Nd | IP63 - Dust Tight, Water Resistant | - | Solder Pads | 2.378" L x 1.634" W (60.40mm x 41.50mm) |
|
FRS 5 X - 8 OHMSPEAKER 8OHM 5W TOP PORT 86DB |
103 | - |
|
Datasheet | - | Bulk | Active | - | General Purpose | 120 Hz ~ 20 kHz | 190Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round | - | - | - | - | Quick Connect | 1.969" Dia (50.00mm) |
|
FR 8 WP - 4 OHM (WHITE)SPEAKER 4OHM 15W TOP PORT 84DB |
168 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 158Hz | 4 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 25 W | Top | Round | Plastic | - | Waterproof | - | Quick Connect | 3.543" Dia (90.00mm) |
|
EX 30 S - 8 OHMSPEAKER 8OHM TOP PORT |
238 | - |
|
Datasheet | - | Bulk | Active | - | Exciter | - | - | 8 Ohms | - | - | - | - | 10 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 1.181" L x 1.181" W (30.00mm x 30.00mm) |
|
EX 45 S - 8 OHMSPEAKER 8OHM TOP PORT |
109 | - |
|
Datasheet | - | Bulk | Active | - | Exciter | - | - | 8 Ohms | - | - | - | - | 10 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 1.811" L x 1.811" W (46.00mm x 46.00mm) |
|
W 200 S - 8 OHMSPEAKER 8OHM 75W TOP PORT 88DB |
4,888 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 30 Hz ~ 6 kHz | 30Hz | 8 Ohms | 88.00 | 1W/1M | Sound Pressure Level (SPL) | 75 W | 115 W | Top | Round | Paper | - | - | - | Quick Connect | 9.134" Dia (232.00mm) |
|
EX 80 S - 8 OHMSPEAKER 8OHM TOP PORT |
4,394 | - |
|
Datasheet | - | Bulk | Active | - | Exciter | - | - | 8 Ohms | - | - | - | - | 50 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 3.150" L x 3.150" W (80.00mm x 80.00mm) |
|
K 28 WPC - 8 OHMSPEAKER 8OHM 1W TOP PORT 75DB |
186 | - |
|
Datasheet | - | Bulk | Active | - | General Purpose | 300 Hz ~ 20 kHz | 700Hz | 8 Ohms | 75.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
K 28 WP - 50 OHMSPEAKER 50OHM 1W TOP PORT 76DB |
1,489 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 300 Hz ~ 20 kHz | 600Hz | 50 Ohms | 76.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|
K 45 - 8 OHMSPEAKER 8OHM 1W TOP PORT 83DB |
233 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 300 Hz ~ 14 kHz | 520Hz | 8 Ohms | 83.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.772" Dia (45.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
