Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

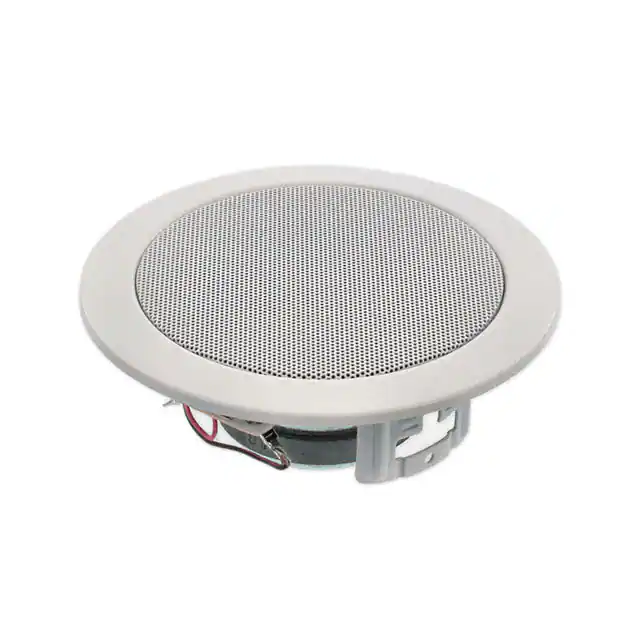

DL 10 - 8 OHMSPEAKER 8OHM 20W TOP PORT 90DB |
196 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 75 Hz ~ 20 kHz | 140Hz | 8 Ohms | 90.00 | 1W/1M | Sound Pressure Level (SPL) | 20 W | 30 W | Top | Round | - | - | IP54 | - | Wire Leads | 5.315" Dia (135.00mm) |
|
EX 60 S - 4 OHMSPEAKER 4OHM TOP PORT |
2,591 | - |
|
Datasheet | - | Bulk | Active | - | Exciter | - | - | 4 Ohms | - | - | - | - | 25 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 2.283" L x 2.283" W (58.00mm x 58.00mm) |
|
SC 3.7 ND WP 8 OHMSC 3.7 ND WP 8 OHM |
270 | - |
|
Datasheet | SC 3.7 ND WP | Bulk | Active | - | General Purpose | 160 Hz ~ 12 kHz | 300Hz | 8 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 3 W | - | Top | Round, Rectangular Frame | Paper | - | IPX4 | - | Solder Eyelet(s) | 2.756" L x 1.201" W (70.00mm x 30.50mm) |
|
|
K 70 WP 8 OHMK 70 WP 8 OHM |
124 | - |
|
Datasheet | K 70 WP | Bulk | Active | - | General Purpose | 200 Hz ~ 15 kHz | 395Hz | 8 Ohms | 84.00 | - | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | - | IP67 - Dust Tight, Waterproof | - | Solder Eyelet(s) | 2.756" Dia (70.00mm) |
|

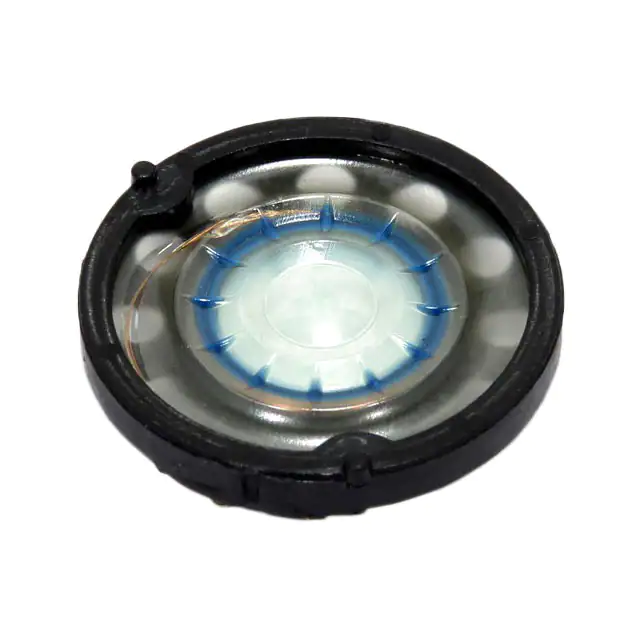

K 28 GI - 8 OHMSPEAKER 8OHM 500MW TOP PORT 84DB |
2,470 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 500 Hz ~ 7 kHz | - | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | - | - | - | - | Spring Type | 1.102" Dia (28.00mm) |
|
FRWS 5 - 8 OHMSPEAKER 8OHM 4W TOP PORT 84DB |
2,391 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 150 Hz ~ 20 kHz | 250Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 4 W | 10 W | Top | Round, Square Frame | - | - | - | - | Solder Pads | 1.969" L x 1.969" W (50.00mm x 50.00mm) |
|

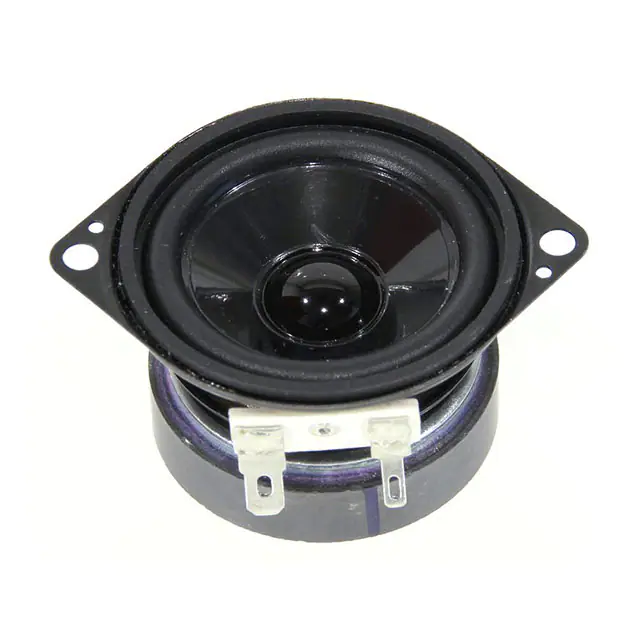

FRS 5 XWP - 8 OHMSPEAKER 8OHM 5W TOP PORT 86DB |
3,034 | - |
|
Datasheet | - | Bulk | Active | - | General Purpose | 120 Hz ~ 20 kHz | 190Hz | 8 Ohms | 86.00 | 1W/1M | Sound Pressure Level (SPL) | 5 W | 8 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | Waterproof | - | Quick Connect | 1.969" Dia (50.00mm) |
|
FRS 8 - 8 OHMSPEAKER 8OHM 30W TOP PORT 82DB |
100 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 120Hz | 8 Ohms | 82.00 | 1W/1M | Sound Pressure Level (SPL) | 30 W | 50 W | Top | Round, Square Frame | - | - | - | - | Quick Connect | 3.071" L x 3.071" W (78.00mm x 78.00mm) |
|
FR 8 WP - 8 OHM (BLACK)SPEAKER 8OHM 15W TOP PORT 84DB |
3,151 | - |
|
Datasheet | - | Bulk | Active | Magnetic | General Purpose | 100 Hz ~ 20 kHz | 158Hz | 8 Ohms | 84.00 | 1W/1M | Sound Pressure Level (SPL) | 15 W | 25 W | Top | Round | Plastic | - | Waterproof | - | Quick Connect | 3.543" Dia (90.00mm) |
|
K 50 FL - 50 OHMSPEAKER 50OHM 1W TOP PORT 80DB |
1,633 | - |
|
Datasheet | Miniature Speaker | Bulk | Active | - | General Purpose | 150 Hz ~ 20 kHz | - | 50 Ohms | 80.00 | 1W/1M | Sound Pressure Level (SPL) | 1 W | 2 W | Top | Round | Plastic | - | - | - | Solder Pads | 1.969" Dia (50.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
