Speakers
Browse available Speakers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CMS-181325-078SP-67SPEAKER 8OHM 700MW TOP PORT 93DB |
2,126 | - |
|
Datasheet | CMS | Bulk | Active | Magnetic | General Purpose | 500 Hz ~ 10 kHz | 800Hz | 8 Ohms | 93.00 | 700mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
SP-2415SPEAKER 8OHM 800MW TOP PORT 95DB |
2,313 | - |
|
Datasheet | SP | Tray | Active | Magnetic | General Purpose | 3 kHz ~ 5 kHz | 1kHz | 8 Ohms | 95.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | - |
|
SP-2014LSPEAKER 8OHM 700MW TOP PORT 90DB |
1,922 | - |
|
Datasheet | SP | Tray | Active | Magnetic | General Purpose | 3 kHz ~ 5 kHz | 1.05kHz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 700 mW | 1 W | Top | Oval | Polyethylene Naphthalate (PEN) | Nd-Fe-B | - | - | Wire Leads | 0.787" L x 0.551" W (20.00mm x 14.00mm) |
|

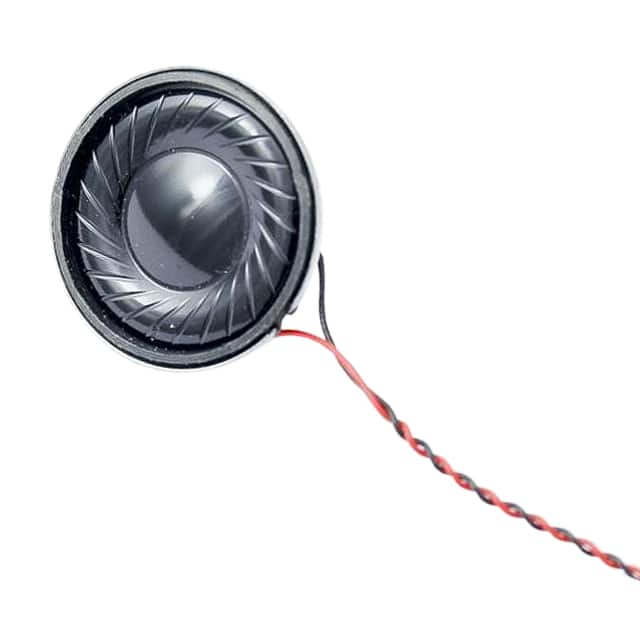

SP-2305WSPEAKER 8OHM 1W TOP PORT 87DB |
1,071 | - |
|
Datasheet | SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 8 kHz | 750Hz | 8 Ohms | 87.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Wire Leads | 0.906" Dia (23.00mm) |
|
SP-1609S-2SPEAKER 8OHM 500MW TOP PORT 82DB |
4,727 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | - | 8 Ohms | 82.00 | 500mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
SP-1813-2SPEAKER 8OHM 800MW TOP PORT 90DB |
100 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 4 kHz | 850Hz | 8 Ohms | 90.00 | 100mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1.1 W | Top | Oval | Polyethylene Naphthalate (PEN) | - | - | - | Wire Leads | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
AS01808MS-SC18-WP-RSPEAKER 8OHM 500MW TOP PORT 88DB |
4,574 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 8 Ohms | 88.00 | - | Sensitivity | 500 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
AS01516MR-2-RSPEAKR 16OHM 500MW TOP PORT 86DB |
4,406 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 800 Hz ~ 20 kHz | 850Hz | 16 Ohms | 86.00 | 100mW/100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 0.591" Dia (15.00mm) |
|
AS01608MS-SC16-WP-RSPEAKER 8OHM 700MW TOP PORT 90DB |
1,965 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 950Hz | 8 Ohms | 90.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
AS01608MS-SP9-WP-RSPEAKER 8OHM 700MW TOP PORT 89DB |
3,325 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
PSR30F64SKSPEAKR 64OHM 100MW TOP PORT 78DB |
1,796 | - |
|
Datasheet | PSR | Bulk | Active | Magnetic | General Purpose | 430 Hz ~ 20 kHz | 430Hz | 64 Ohms | 78.00 | 1W/1M | Sound Pressure Level (SPL) | 100 mW | 200 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | Solder Pads | 1.169" Dia (29.70mm) |
|
SP-2509SPEAKER 8OHM 1W TOP PORT 84DB |
4,353 | - |
|
Datasheet | SP | Tray | Active | Magnetic | General Purpose | 300 Hz ~ 5 kHz | 550Hz | 8 Ohms | 84.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.2 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Solder Pads | 0.984" L x 0.354" W (25.00mm x 9.00mm) |
|
AS01608MS-SC9-WP-RSPEAKER 8OHM 700MW TOP PORT 89DB |
3,082 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 8 Ohms | 89.00 | - | Sensitivity | 700 mW | 1 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|

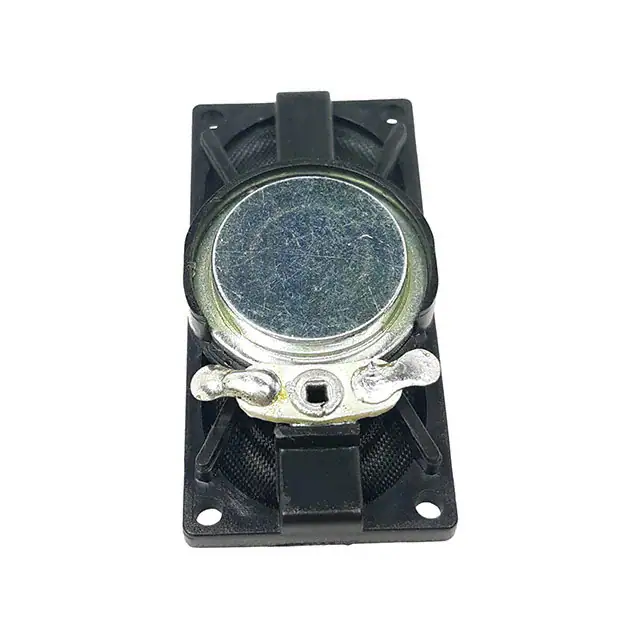

SP-4009YSPEAKER 8OHM 1W TOP PORT 88DB |
1,394 | - |
|
Datasheet | SP Micro Speaker | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 12 kHz | 600Hz | 8 Ohms | 88.00 | 100mW/100mm | Sound Pressure Level (SPL) | 1 W | 1.5 W | Top | Rectangular | - | Nd-Fe-B | - | - | Solder Eyelet(s) | 1.575" L x 0.787" W (40.00mm x 20.00mm) |
|
AS01308MR-5-RSPEAKR 8OHM 400MW SIDE PORT 89DB |
4,500 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 1.05 kHz ~ 20 kHz | 1.05kHz | 8 Ohms | 89.00 | 400mW/100mm | Sound Pressure Level (SPL) | 400 mW | 600 mW | Side | Round | Polyester, Polyethylene Terephthalate (PET) | Nd-Fe-B | - | - | PC Pins | 0.512" Dia (13.00mm) |
|
AS05008PR-6-RSPEAKER 8OHM 400MW TOP PORT 85DB |
2,071 | - |
|
Datasheet | AS | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 5 kHz | 500Hz | 8 Ohms | 85.00 | 1W/1M | Sound Pressure Level (SPL) | 400 mW | 700 mW | Top | Round | Paper | N35 | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
AS01606MS-SC16-WP-RSPEAKER 6OHM 940MW TOP PORT 91DB |
3,131 | - |
|
Datasheet | AS | Tray | Active | Magnetic | Receiver | 500 Hz ~ 20 kHz | 850Hz | 6 Ohms | 91.00 | - | Sensitivity | 940 mW | 1.2 W | Top | Rectangular | Polyimide (PI) | Nd-Fe-B | IP67 - Dust Tight, Waterproof | - | Spring Type | 0.630" L x 0.354" W (16.00mm x 9.00mm) |
|
SW121108-1SPEAKER 8OHM 250MW TOP PORT 81DB |
1,461 | - |
|
Datasheet | SW | Bulk | Active | Magnetic | General Purpose | 1.1 kHz ~ 10 kHz | 1.1kHz | 8 Ohms | 81.00 | 250mW/100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Rectangular | Polyetheretherketone (PEEK) | - | Waterproof | - | Spring Type | 0.472" L x 0.236" W (12.00mm x 6.00mm) |
|
WSP-5008-59SPEAKER 8OHM 2W TOP PORT 91DB |
3,877 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 720 Hz ~ 5 kHz | 720Hz | 8 Ohms | 91.00 | 1W/1M | Sound Pressure Level (SPL) | 2 W | 3 W | Top | Round | - | - | IP65 - Dust Tight, Water Resistant | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
CES-20134-088PMASPEAKER 8OHM 800MW TOP PORT 91DB |
3,918 | - |
|
Datasheet | CES | Tray | Active | Magnetic | General Purpose | 500 Hz ~ 20 kHz | 1.3kHz | 8 Ohms | 91.00 | 800mW/100mm | Sound Pressure Level (SPL) | 800 mW | 1 W | Top | Rectangular | Polyetheretherketone (PEEK) | Nd-Fe-B | - | - | Wire Leads with Connector | 0.787" L x 0.633" W (20.00mm x 16.09mm) |
Speakers FAQ
What Speakers components can I source from EGOO?
You can browse available Speakers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Speakers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
