Speakers
Compare the current Speakers Audio Products selection by manufacturer, stock status, datasheet and technical parameters. Use these details to narrow the list to parts that match your design, maintenance or purchasing requirements.
For a specific MPN, package, electrical rating or quantity requirement, send the details to EGOO. We can help confirm availability, quotation and alternative sourcing options.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Packaging | Product Status | Technology | Type | Frequency Range | Frequency - Self Resonant | Impedance | Efficiency - dBA | Efficiency - Testing | Efficiency - Type | Power - Rated | Power - Max | Port Location | Shape | Material - Cone | Material - Magnet | Ingress Protection | Ratings | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SM171008-1SPEAKER 8OHM 500MW TOP PORT 88DB |
987 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 1 kHz ~ 5 kHz | 1kHz | 8 Ohms | 88.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 0.669" Dia (17.00mm) |
|

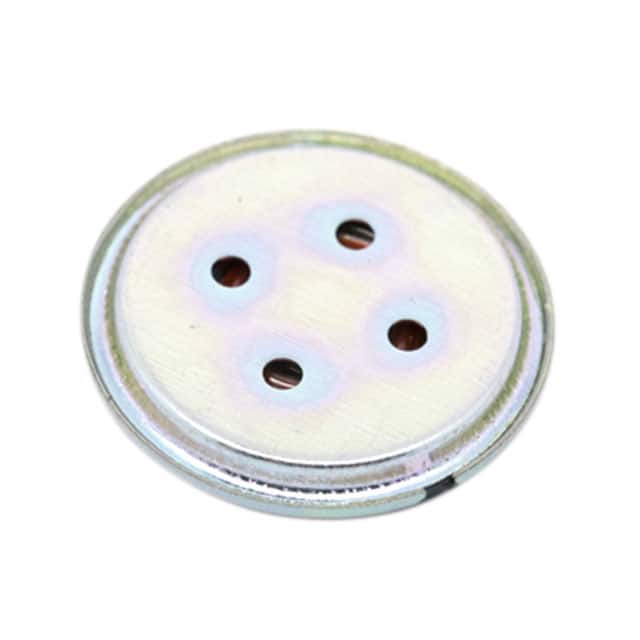

SM200707-1SPEAKER 7OHM 200MW TOP PORT 87DB |
994 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 780 Hz ~ 5 kHz | 780Hz | 7 Ohms | 87.00 | 100mm | Sound Pressure Level (SPL) | 200 mW | 400 mW | Top | Round | Polyethylenimine (PEI) | - | - | - | Solder Pads | 0.787" Dia (20.00mm) |
|
SM400608-2SPEAKER 8OHM 500MW TOP PORT 92DB |
723 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 6 kHz | 600Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 800 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.575" Dia (40.00mm) |
|
SM150508-7SPEAKER 8OHM 750MW TOP PORT 92DB |
620 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 550 Hz ~ 10 kHz | 550Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 750 mW | 1 W | Top | Rectangular | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Spring Type | 0.591" L x 0.433" W (15.00mm x 11.00mm) |
|
SM280632-1SPEAKR 32OHM 250MW TOP PORT 91DB |
591 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 6.5 kHz | 600Hz | 32 Ohms | 91.00 | 100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Polyester, Polyethylene Terephthalate (PET) | - | - | - | Solder Pads | 1.102" Dia (28.00mm) |
|

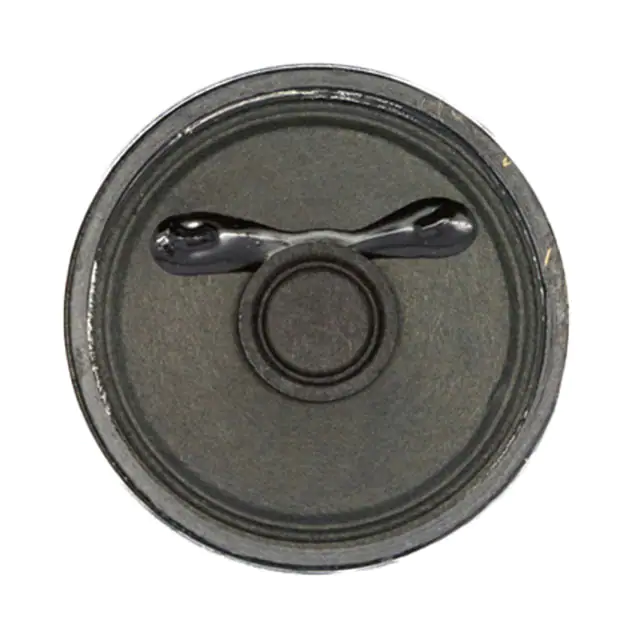

SP500408-2SPEAKER 8OHM 250MW TOP PORT 93DB |
955 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 450 Hz ~ 4 kHz | 450Hz | 8 Ohms | 93.00 | 100mm | Sound Pressure Level (SPL) | 250 mW | 500 mW | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 1.969" Dia (50.00mm) |
|
SM180808-5SPEAKER 8OHM 1W TOP PORT |
384 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | - | 100mm | Sound Pressure Level (SPL) | 1 W | 1.3 W | Top | Rectangular | - | - | - | - | - | 0.709" L x 0.512" W (18.00mm x 13.00mm) |
|
SM250508-2SPEAKER DYNAMIC |
430 | - |
|
Datasheet | - | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
SP400608-1SPEAKER 8OHM 500MW TOP PORT 92DB |
491 | - |
|
Datasheet | - | Tray | Active | Magnetic | General Purpose | 600 Hz ~ 5 kHz | 600Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Round | Paper | - | - | - | Solder Eyelet(s) | 1.575" Dia (40.00mm) |
|
SW250808-1SPEAKER 8OHM 500MW TOP PORT 92DB |
477 | - |
|
Datasheet | SW | Tray | Active | Magnetic | General Purpose | 850 Hz ~ 10 kHz | 850Hz | 8 Ohms | 92.00 | 100mm | Sound Pressure Level (SPL) | 500 mW | 1 W | Top | Oval | Polyester, Polyethylene Terephthalate (PET) | - | IP67 - Dust Tight, Waterproof | - | Solder Pads | 0.984" L x 0.630" W (25.00mm x 16.00mm) |
Speakers FAQ
How can I narrow the current Speakers selection?
Use the available manufacturer and technical filters to compare matching parts by specifications, stock status, pricing and datasheet information.
Can EGOO help source hard-to-find or obsolete Speakers parts?
Yes. Send the manufacturer part number and required quantity to our sourcing team for availability, lead-time and alternative sourcing support.
Can I request a quotation for a BOM or small-batch requirement?
Yes. EGOO supports BOM sourcing, prototype quantities and small-batch purchasing. Provide your part list and quantities for a quotation review.
What information should I provide when requesting a quote?
Please provide the target part number, manufacturer, quantity and any required date code, package or delivery requirements so our team can respond more accurately.
