Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM3604-200-RCINDUCT ARRAY 2 COIL 200UH SMD |
3,910 | - |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 200 µH | 800 µH | ±20% | 650 mA | 330 mA | - | - | 470mOhm Max | 1.88Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-50-RCINDUCT ARRAY 2 COIL 50UH SMD |
1,005 | - |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 50 µH | 200 µH | ±20% | 1.28 A | 640 mA | - | - | 120mOhm Max | 480mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-33-RCINDUCT ARRAY 2 COIL 33UH SMD |
583 | - |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±20% | 1.6 A | 800 mA | - | - | 78mOhm Max | 310mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
DRQ127-680-RINDUCT ARRAY 2 COIL 66.48UH SMD |
552 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 66.48 µH | 265.9 µH | ±20% | 2.44 A | 1.22 A | 4.44 A | 2.22 A | 105mOhm | 421mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PM3604-8-RCINDUCT ARRAY 2 COIL 8UH SMD |
396 | - |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 8 µH | 32 µH | ±20% | 3 A | 1.5 A | - | - | 24mOhm Max | 96mOhm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
|
PM3604-150-RCINDUCT ARRAY 2 COIL 150UH SMD |
378 | - |
|
Datasheet | PM3600 | Nonstandard | Tape & Reel (TR) | Active | 2 | 150 µH | 600 µH | ±20% | 780 mA | 390 mA | - | - | 320mOhm Max | 1.28Ohm Max | Unshielded | - | -55°C ~ 125°C | Surface Mount | 0.550" L x 0.452" W (13.97mm x 11.48mm) | 0.265" (6.73mm) |
|
74489440150INDUCT ARRAY 2 COIL 15UH SMD |
998 | - |
|
Datasheet | WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | 1.1 A | 550 mA | 2.2 A | 1.1 A | 185mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
74489440027INDUCT ARRAY 2 COIL 2.7UH SMD |
782 | - |
|
Datasheet | WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.7 µH | 10.8 µH | ±30% | 2.5 A | 1.25 A | 5.1 A | 2.55 A | 40mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
74489440220INDUCT ARRAY 2 COIL 22UH SMD |
376 | - |
|
Datasheet | WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | 1 A | 500 mA | 1.8 A | 900 mA | 228mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
|
74489440018INDUCT ARRAY 2 COIL 1.8UH SMD |
350 | - |
|
Datasheet | WE-TDC | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.8 µH | 7.2 µH | ±30% | 2.85 A | 1.425 A | 5.8 A | 2.9 A | 31mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.150" (3.80mm) |
|
DRQ74-221-RINDUCT ARRAY 2 COIL 227UH SMD |
1,192 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 227 µH | 908 µH | ±20% | 560 mA | 279 mA | 660 mA | 330 mA | 907mOhm | 3.63Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
B82477D4683M900FIXED IND 68UH 1.89A 215 MOHM |
6,997 | - |
|
Datasheet | B82477D4*M900 | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | - | 1.89 A | 2.5 A | 1.25 A | 107.5mOhm Max | 430mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
76889440330INDUCTOR ARRAY 2 COIL 33UH SMD |
3,642 | - |
|
Datasheet | WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | - | ±20% | 0.85 A | - | 1.85 A | - | 640mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.161" (4.10mm) |
|

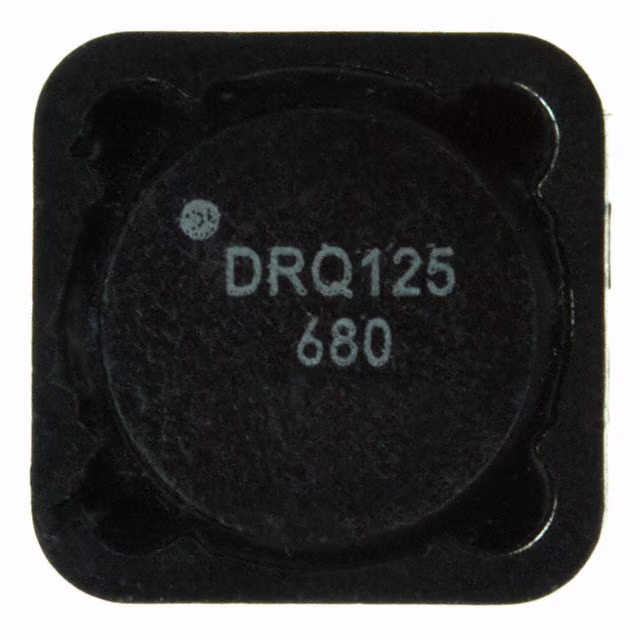

DRQ125-680-RINDUCT ARRAY 2 COIL 67.91UH SMD |
832 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.91 µH | 271.6 µH | ±20% | 2.22 A | 1.11 A | 2.7 A | 1.35 A | 101mOhm | 440mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRF1280A-6R8YINDUCT ARRAY 2 COIL 6.8UH SMD |
3,026 | - |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±30% | 7.34 A | 3.67 A | 13.3 A | 6.67 A | 18.3mOhm Max | 65.6mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280A-3R3YINDUCT ARRAY 2 COIL 3.3UH SMD |
134 |
1+：$2.07000 10+：$1.87400 25+：$1.79960 50+：$1.74540 100+：$1.69240 |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.3 µH | 13.2 µH | ±30% | 10.4 A | 5.23 A | 21.5 A | 10.8 A | 11mOhm Max | 40mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280A-101MINDUCT ARRAY 2 COIL 100UH SMD |
2,273 | - |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 100 µH | 400 µH | ±20% | 1.96 A | 980 mA | 3.64 A | 1.82 A | 175mOhm Max | 701mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280A-150MINDUCT ARRAY 2 COIL 15UH SMD |
1,958 | - |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | 5.03 A | 2.51 A | 9.66 A | 4.83 A | 33.3mOhm Max | 129mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280A-331MINDUCT ARRAY 2 COIL 330UH SMD |
1,325 | - |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 330 µH | 1.32 mH | ±20% | 1.04 A | 522 mA | 2.01 A | 1.01 A | 540mOhm Max | 2.172Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
SRF1280A-220MINDUCT ARRAY 2 COIL 22UH SMD |
1,313 | - |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | 4 A | 2 A | 7.57 A | 3.78 A | 50.3mOhm Max | 192mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
Arrays, Signal Transformers FAQ
What Arrays, Signal Transformers components can I source from EGOO?
You can browse available Arrays, Signal Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Arrays, Signal Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
