Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX25-4A-RINDUCT ARRAY 2 COIL 25.14UH SMD |
1,142 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 25.14 µH | 100.51 µH | ±25% | 3.02 A | 1.51 A | 2.65 A | 1.32 A | 48mOhm Max | 193mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

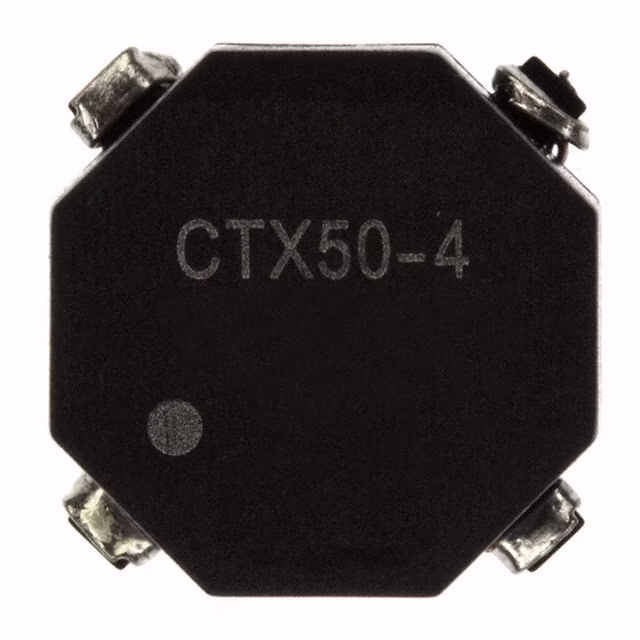

CTX50-4-RINDUCT ARRAY 2 COIL 50.18UH SMD |
987 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.18 µH | 200.7 µH | ±20% | 1.5 A | 750 mA | - | - | 111mOhm Max | 443mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX33-4-RINDUCT ARRAY 2 COIL 33.12UH SMD |
1,118 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 33.12 µH | 132.5 µH | ±20% | 1.8 A | 900 mA | - | - | 72mOhm Max | 287mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX200-4-RINDUCT ARRAY 2 COIL 200.7UH SMD |
393 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 200.7 µH | 802.82 µH | ±20% | 640 mA | 320 mA | - | - | 545mOhm Max | 2.18Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
ERUC23-1R4KSMT FLAT WIRE COUPLED INDUCTOR, |
617 | - |
|
Datasheet | ERUC23 | Nonstandard, 4 Lead | Tape & Reel (TR) | Active | 2 | 2.6 µH | 10.4 µH | ±10% | - | - | 88 A | 44 A | - | - | Unshielded | - | -40°C ~ 150°C | Surface Mount | 1.055" L x 0.543" W (26.80mm x 13.80mm) | 0.563" (14.30mm) |
|
CL-25-50INDUCT ARRAY 2COIL 300UH CHA MNT |
4,652 | - |
|
Datasheet | CL | Nonstandard | Box | Active | 2 | 300 µH | 1.2 mH | - | 50 A | 25 A | - | - | 3mOhm | 12mOhm | Unshielded | - | - | Chassis Mount | 3.870" L x 3.374" W (98.30mm x 85.70mm) | 3.374" (85.70mm) |
|
SRF0703-1R0MINDUCT ARRAY 2 COIL 1UH SMD |
13,613 | - |
|
Datasheet | SRF0703 | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 µH | 4 µH | ±20% | 5.25 A | 2.63 A | 7.97 A | 3.99 A | 13.5mOhm Max | 72mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703-821MINDUCT ARRAY 2 COIL 820UH SMD |
9,221 | - |
|
Datasheet | SRF0703 | Nonstandard | Tape & Reel (TR) | Active | 2 | 820 µH | 3.28 mH | ±20% | 270 mA | 134 mA | 280 mA | 140 mA | 5.01Ohm Max | 20.07Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703-681MINDUCT ARRAY 2 COIL 680UH SMD |
5,291 | - |
|
Datasheet | SRF0703 | Nonstandard | Tape & Reel (TR) | Active | 2 | 680 µH | 2.72 mH | ±20% | 290 mA | 143 mA | 310 mA | 150 mA | 3.96Ohm Max | 16.17Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703-680MINDUCT ARRAY 2 COIL 68UH SMD |
5,176 | - |
|
Datasheet | SRF0703 | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | 890 mA | 444 mA | 960 mA | 480 mA | 507mOhm Max | 1.92Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703-6R8MINDUCT ARRAY 2 COIL 6.8UH SMD |
3,589 | - |
|
Datasheet | SRF0703 | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±20% | 2.55 A | 1.28 A | 3.12 A | 1.56 A | 65.8mOhm Max | 285mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703-331MINDUCT ARRAY 2 COIL 330UH SMD |
3,460 | - |
|
Datasheet | SRF0703 | Nonstandard | Tape & Reel (TR) | Active | 2 | 330 µH | 1.32 mH | ±20% | 420 mA | 211 mA | 440 mA | 220 mA | 2.16Ohm Max | 8.25Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
SRF0703A-100MINDUCT ARRAY 2 COIL 10UH SMD |
11,592 | - |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 39.6 µH | ±20% | 2.08 A | 1.04 A | 2.47 A | 1.24 A | 82.6mOhm Max | 342mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-101MINDUCT ARRAY 2 COIL 100UH SMD |
5,881 | - |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 100 µH | 397.6 µH | ±20% | 730 mA | 367 mA | 790 mA | 390 mA | 715mOhm Max | 2.64Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-330MINDUCT ARRAY 2 COIL 33UH SMD |
5,734 | - |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 140.5 µH | ±20% | 1.31 A | 653 mA | 1.35 A | 680 mA | 240mOhm Max | 1Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-220MINDUCT ARRAY 2 COIL 22UH SMD |
3,293 | - |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 89.5 µH | ±20% | 1.62 A | 811 mA | 1.67 A | 830 mA | 150mOhm Max | 620mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703-R33MINDUCT ARRAY 2 COIL 330NH SMD |
1,413 | - |
|
Datasheet | SRF0703 | Nonstandard | Tape & Reel (TR) | Active | 2 | 330 nH | 1.32 µH | ±20% | 6.19 A | 3.1 A | 14.4 A | 7.18 A | 9.2mOhm Max | 40mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
B82472D6333M000INDUCT ARRAY 2 COIL 33UH SMD |
10,485 | - |
|
Datasheet | B82472D6 | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±20% | - | - | 2 A | 1 A | 145mOhm Max | 580mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.287" L x 0.287" W (7.30mm x 7.30mm) | 0.189" (4.80mm) |
|

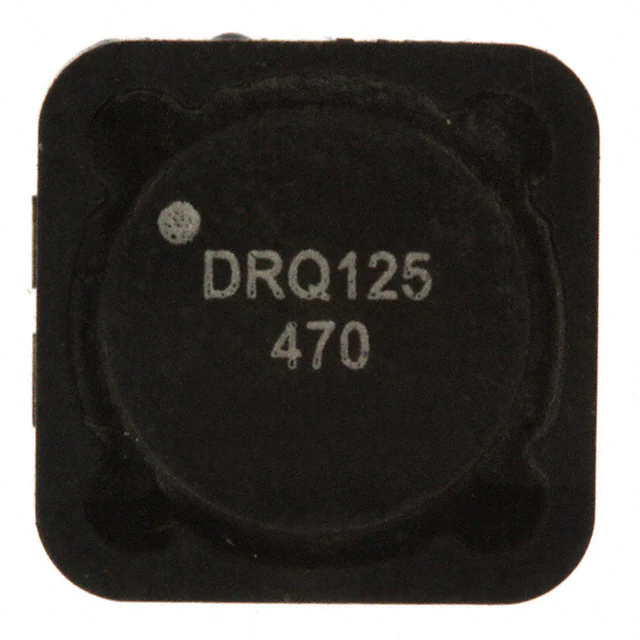

DRQ125-470-RINDUCT ARRAY 2 COIL 47.47UH SMD |
2,292 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 47.47 µH | 189.9 µH | ±20% | 2.71 A | 1.35 A | 3.24 A | 1.62 A | 74mOhm | 297mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

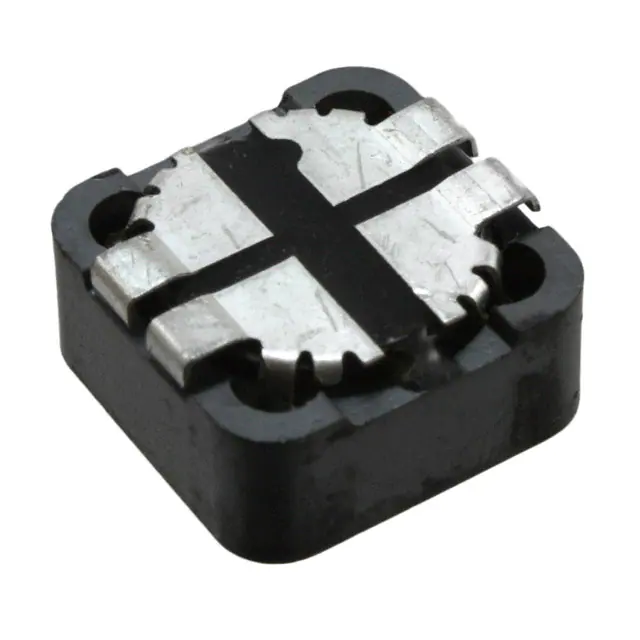

DRQ125-3R3-RINDUCT ARRAY 2 COIL 3.084UH SMD |
572 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.084 µH | 12.34 µH | ±20% | 9.26 A | 4.63 A | 12.7 A | 6.35 A | 6.3mOhm | 25.3mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
