Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744870006INDUCT ARRAY 2 COIL 6.8UH SMD |
459 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.4 µH | 13.6 µH | ±20% | 3.2 A | 1.6 A | 8 A | 4 A | 35mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744870004INDUCT ARRAY 2 COIL 4.7UH SMD |
390 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.35 µH | 9.4 µH | ±20% | 3.6 A | 1.8 A | 8 A | 4 A | 30mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744870470INDUCT ARRAY 2 COIL 47UH SMD |
353 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 23.5 µH | 94 µH | ±20% | 1.45 A | 725 mA | 3.1 A | 1.55 A | 150mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873220INDUCT ARRAY 2 COIL 22UH SMD |
267 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | ±20% | 2.79 A | 1.395 A | 5 A | 2.5 A | 70mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873470INDUCT ARRAY 2 COIL 47UH SMD |
257 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 23.5 µH | 94 µH | ±20% | 2.02 A | 1.01 A | 3.1 A | 1.55 A | 120mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873330INDUCT ARRAY 2 COIL 33UH SMD |
246 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 16.5 µH | 66 µH | ±20% | 2.25 A | 1.125 A | 3.9 A | 1.95 A | 105mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873221INDUCT ARRAY 2 COIL 220UH SMD |
156 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 110 µH | 440 µH | ±20% | 910 mA | 455 mA | 1.6 A | 800 mA | 580mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
B82477D6473M603FIXED IND 47UH 2.83A 94MOHM SMD |
525 | - |
|
Datasheet | B82477D6 | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | - | 2.83 A | 4.7 A | 2.35 A | 47mOhm Max | 188mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
7448991068SMT MOLDED COUPLED INDUCTOR SIZE |
733 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | - | ±20% | 5 A | - | 12 A | - | 44mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
P0395NLINDUCT ARRAY 2 COIL 2.2UH SMD |
1,145 | - |
|
Datasheet | Tomcat | Nonstandard | Tube | Active | 2 | 2.2 µH | 9 µH | ±20% | 14.4 A | 7.2 A | - | - | 4.41mOhm | 17.6mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
|
P0401NLINDUCT ARRAY 2 COIL 27.4UH SMD |
1,008 | - |
|
Datasheet | Tomcat | Nonstandard | Tube | Active | 2 | 27.4 µH | 109.8 µH | ±20% | 4.4 A | 2.2 A | - | - | 38.15mOhm | 152.6mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
B82477C6473M603INDUCT ARRAY 2 COIL 47UH SMD |
449 | - |
|
Datasheet | B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | - | 3.02 A | 4.8 A | 2.4 A | 42.5mOhm Max | 170mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
7448709330INDUCT ARRAY 2 COIL 33UH SMD |
569 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 16.5 µH | 66 µH | ±20% | 2 A | 1 A | 4.4 A | 2.2 A | 100mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
7448709470INDUCT ARRAY 2 COIL 47UH SMD |
212 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 23.5 µH | 94 µH | ±20% | 1.9 A | 950 mA | 3.6 A | 1.8 A | 130mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
7448991220SMT MOLDED COUPLED INDUCTOR SIZE |
834 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | - | ±20% | 2.2 A | - | 6.1 A | - | 160mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|

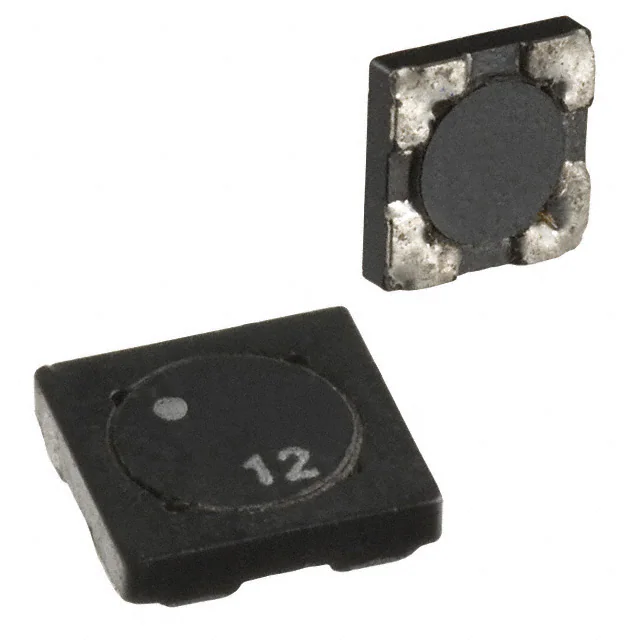

SDQ12-150-RINDUCT ARRAY 2 COIL 15.21UH SMD |
3,776 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 15.21 µH | 60.84 µH | ±20% | 658 mA | 329 mA | 779 mA | 390 mA | 576.6mOhm | 2.31Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
|
SDQ12-8R2-RINDUCT ARRAY 2 COIL 8.41UH SMD |
750 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.41 µH | 33.64 µH | ±20% | 868 mA | 434 mA | 1.05 A | 524 mA | 331.8mOhm | 1.33Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.047" (1.19mm) |
|
CTX10-3P-RINDUCT ARRAY 2 COIL 9.79UH SMD |
3,200 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.79 µH | 39.15 µH | ±20% | 2.7 A | 1.35 A | - | - | 33mOhm Max | 131mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX10-1P-RINDUCT ARRAY 2 COIL 9.62UH SMD |
1,296 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.62 µH | 38.48 µH | ±20% | 1.7 A | 850 mA | - | - | 57mOhm Max | 227mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
7448990047INDUCT ARRAY 2 COIL 4.7UH SMD |
474 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | - | ±20% | 5.9 A | - | 24.2 A | - | 40mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
