Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

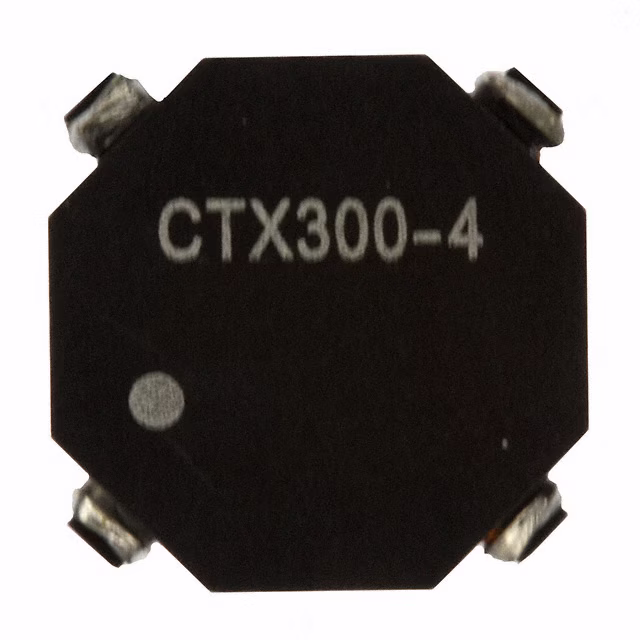

CTX300-4-RINDUCT ARRAY 2 COIL 298.12UH SMD |
1,402 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 298.12 µH | 1.2 mH | ±20% | 620 mA | 310 mA | - | - | 672mOhm Max | 2.687Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

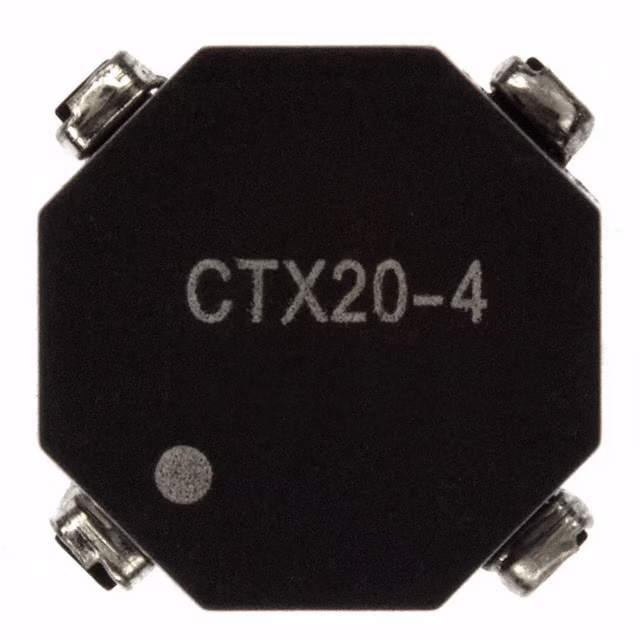

CTX20-4-RINDUCT ARRAY 2 COIL 19.6UH SMD |
2,652 |
1+：$6.95000 10+：$6.27400 25+：$6.02040 50+：$5.83400 100+：$5.65250 250+：$5.41996 |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.6 µH | 78.4 µH | ±20% | 2.1 A | 1.05 A | - | - | 55mOhm Max | 220mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
DRQ73-680-RINDUCT ARRAY 2 COIL 68.91UH SMD |
1,155 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 68.91 µH | 275.6 µH | ±20% | 890 mA | 444 mA | 960 mA | 480 mA | 358mOhm | 1.43Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|

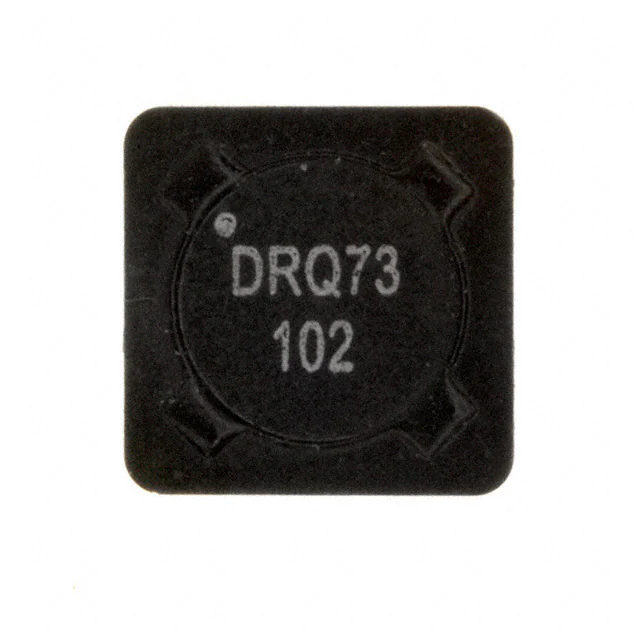

DRQ73-102-RINDUCT ARRAY 2 COIL 995UH SMD |
1,985 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 995 µH | 3.98 mH | ±20% | 260 mA | 128 mA | 250 mA | 130 mA | 4.34Ohm | 17.36Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
SRF0703-820MINDUCT ARRAY 2 COIL 82UH SMD |
2,337 | - |
|
Datasheet | SRF0703 | Nonstandard | Tape & Reel (TR) | Active | 2 | 82 µH | 328 µH | ±20% | 860 mA | 430 mA | 890 mA | 440 mA | 610mOhm Max | 2.28Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
SRF0703A-151MINDUCT ARRAY 2 COIL 150UH SMD |
2,930 | - |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 150 µH | 608.2 µH | ±20% | 580 mA | 289 mA | 650 mA | 320 mA | 986mOhm Max | 3.63Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-470MINDUCT ARRAY 2 COIL 47UH SMD |
2,728 | - |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 194.2 µH | ±20% | 1.08 A | 542 mA | 1.14 A | 570 mA | 338mOhm Max | 1.28Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
|
SRF0703A-150MINDUCT ARRAY 2 COIL 15UH SMD |
2,395 | - |
|
Datasheet | SRF0703A | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 59.6 µH | ±20% | 1.83 A | 916 mA | 2.05 A | 1.03 A | 119mOhm Max | 470mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.142" (3.60mm) |
|
PF0553.472NLINDUCT ARRAY 2 COIL 4.8UH SMD |
1,550 | - |
|
Datasheet | PF0553NL | Nonstandard | Tray | Active | 2 | 4.8 µH | 19 µH | ±20% | 8.1 A | 4.1 A | 16 A | 8.2 A | 9.2mOhm Max | 37mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
|
PF0553.683NLINDUCT ARRAY 2 COIL 66UH SMD |
1,550 | - |
|
Datasheet | PF0553NL | Nonstandard | Tray | Active | 2 | 66 µH | 270 µH | ±20% | 2.4 A | 1.2 A | 4.4 A | 2.2 A | 110mOhm Max | 420mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
|
PF0553.153NLINDUCT ARRAY 2 COIL 14UH SMD |
1,545 | - |
|
Datasheet | PF0553NL | Nonstandard | Tray | Active | 2 | 14 µH | 56 µH | ±20% | 5 A | 2.5 A | 9.6 A | 4.8 A | 24mOhm Max | 96mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|
DRQ74-102-RINDUCT ARRAY 2 COIL 1.009MH SMD |
2,157 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.009 mH | 4.036 mH | ±20% | 270 mA | 135 mA | 310 mA | 160 mA | 3.89Ohm | 15.6Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
SRF1260-3R3YINDUCT ARRAY 2 COIL 3.3UH SMD |
1,188 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.3 µH | 13.2 µH | ±30% | 9.26 A | 4.63 A | 12.7 A | 6.35 A | 10.1mOhm Max | 37.2mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260-8R2YINDUCT ARRAY 2 COIL 8.2UH SMD |
1,057 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.2 µH | 32.8 µH | ±30% | 5.54 A | 2.77 A | 7.89 A | 3.93 A | 19.4mOhm Max | 73.7mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
DRAQ127-330-RINDUCT ARRAY 2 COIL 32UH SMD |
508 | - |
|
Datasheet | DRAQ127 | Nonstandard | Tape & Reel (TR) | Active | 2 | 32 µH | 128 µH | ±25% | 3.22 A | 1.61 A | 4.98 A | 2.49 A | 72mOhm Max | 288mOhm Max | Shielded | AEC-Q200 | -40°C ~ 165°C | Surface Mount | 0.480" L x 0.480" W (12.20mm x 12.20mm) | 0.315" (8.00mm) |
|
SRF1260A-220MINDUCT ARRAY 2 COIL 22UH SMD |
2,773 |
1+：$1.66000 10+：$1.50800 25+：$1.44880 50+：$1.40540 100+：$1.36300 |
|
Datasheet | SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | 3.7 A | 1.84 A | 4.71 A | 2.36 A | 45.1mOhm Max | 172mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260A-470MINDUCT ARRAY 2 COIL 47UH SMD |
1,838 | - |
|
Datasheet | SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | 188 µH | ±20% | 2.71 A | 1.35 A | 3.24 A | 1.62 A | 86mOhm Max | 340mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260A-820MINDUCT ARRAY 2 COIL 82UH SMD |
1,595 | - |
|
Datasheet | SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 82 µH | 328 µH | ±20% | 2.05 A | 1.03 A | 2.39 A | 1.2 A | 150mOhm Max | 568mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260A-6R8YINDUCT ARRAY 2 COIL 6.8UH SMD |
1,558 | - |
|
Datasheet | SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.8 µH | 27.2 µH | ±30% | 6.64 A | 3.32 A | 8.68 A | 4.34 A | 18.6mOhm Max | 67.2mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
PA3142AHLINDUCT ARRAY 2 COIL SMD |
1,200 | - |
|
Datasheet | PA314xAHL | 4-SMD, No Lead | Tray | Active | 2 | - | 100 nH | ±15% | - | 40 A | - | - | - | 0.3mOhm Max | Shielded | - | -40°C ~ 130°C | Surface Mount | 0.669" L x 0.413" W (17.00mm x 10.50mm) | 0.315" (8.00mm) |
Arrays, Signal Transformers FAQ
What Arrays, Signal Transformers components can I source from EGOO?
You can browse available Arrays, Signal Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Arrays, Signal Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
