Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448990100INDUCT ARRAY 2 COIL 10UH SMD |
273 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 4.5 A | - | 17 A | - | 69mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
CTX25-2P-RINDUCT ARRAY 2 COIL 24.79UH SMD |
853 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 24.79 µH | 99.14 µH | ±20% | 1.4 A | 700 mA | - | - | 109mOhm Max | 436mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX100-2P-RINDUCT ARRAY 2 COIL 99.14UH SMD |
1,962 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.14 µH | 396.58 µH | ±20% | 620 mA | 310 mA | - | - | 541mOhm Max | 2.162Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|

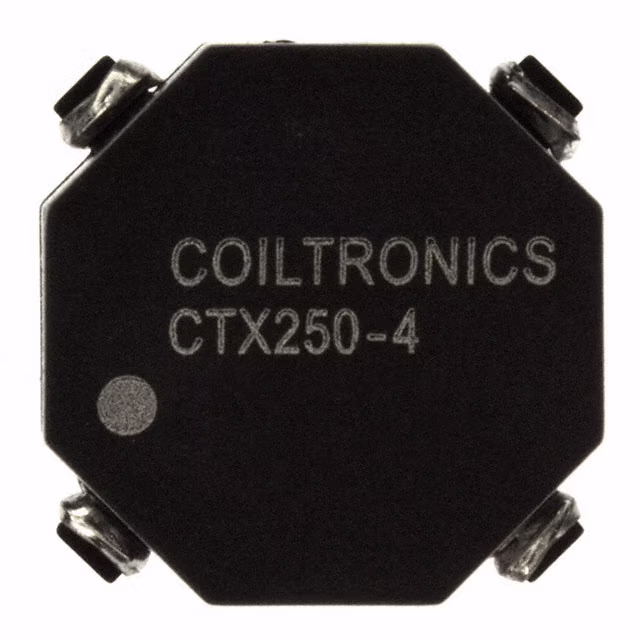

CTX250-4-RINDUCT ARRAY 2 COIL 250UH SMD |
1,503 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 250 µH | 1 mH | ±20% | 650 mA | 330 mA | - | - | - | - | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
74485540820INDUCT ARRAY 2 COIL 8.2UH SMD |
314 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 8.2 µH | - | ±20% | 13.5 A | - | 14 A | - | 13mOhm | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.492" (12.50mm) |
|
P0174NLINDUCT ARRAY 2 COIL 2.2UH SMD |
230 | - |
|
Datasheet | Polecat | Nonstandard | Tube | Active | 2 | 2.2 µH | 8.75 µH | ±10% | 8.3 A | 4.16 A | - | - | 7.6mOhm Max | 32mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
CTX100-1P-RINDUCT ARRAY 2 COIL 99.01UH SMD |
1,505 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.01 µH | 396.06 µH | ±20% | 540 mA | 270 mA | - | - | 557mOhm Max | 2.227Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
744851101INDUCT ARRAY 2 COIL 10UH SMD |
416 | - |
|
Datasheet | WE-DCT | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±10% | 5.3 A | 2.65 A | 8 A | 4 A | 22mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.906" L x 0.728" W (23.00mm x 18.50mm) | 0.453" (11.50mm) |
|
|
744851039INDUCT ARRAY 2 COIL 390NH SMD |
349 | - |
|
Datasheet | WE-DCT | Nonstandard | Tape & Reel (TR) | Active | 2 | 390 nH | 1.56 µH | ±20% | 10.6 A | 5.3 A | 50 A | 25 A | 6mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.906" L x 0.728" W (23.00mm x 18.50mm) | 0.453" (11.50mm) |
|
|
744851470INDUCT ARRAY 2 COIL 4.7UH SMD |
147 | - |
|
Datasheet | WE-DCT | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±10% | 7.2 A | 3.6 A | 11 A | 5.5 A | 14mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.906" L x 0.728" W (23.00mm x 18.50mm) | 0.453" (11.50mm) |
|
74485540080INDUCT ARRAY 2 COIL 800NH SMD |
569 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 800 nH | 3.2 µH | ±20% | 28 A | 14 A | 62 A | 31 A | 2.56mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
|
P0181NLINDUCT ARRAY 2 COIL 47.6UH SMD |
537 | - |
|
Datasheet | Polecat | Nonstandard | Tube | Active | 2 | 47.6 µH | 190.3 µH | ±10% | 1.8 A | 890 mA | - | - | 151mOhm Max | 604mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
CTX200-2P-RINDUCT ARRAY 2 COIL 201.59UH SMD |
2,780 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 201.59 µH | 806.34 µH | ±20% | 460 mA | 230 mA | - | - | 951mOhm Max | 3.804Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|

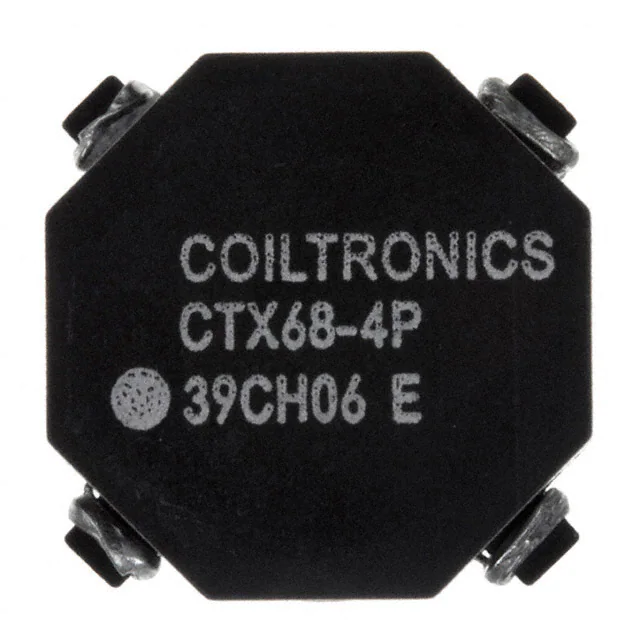

CTX68-4P-RINDUCT ARRAY 2 COIL 67.37UH SMD |
600 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 67.37 µH | 269.5 µH | ±20% | 1.1 A | 550 mA | - | - | 238mOhm Max | 952mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

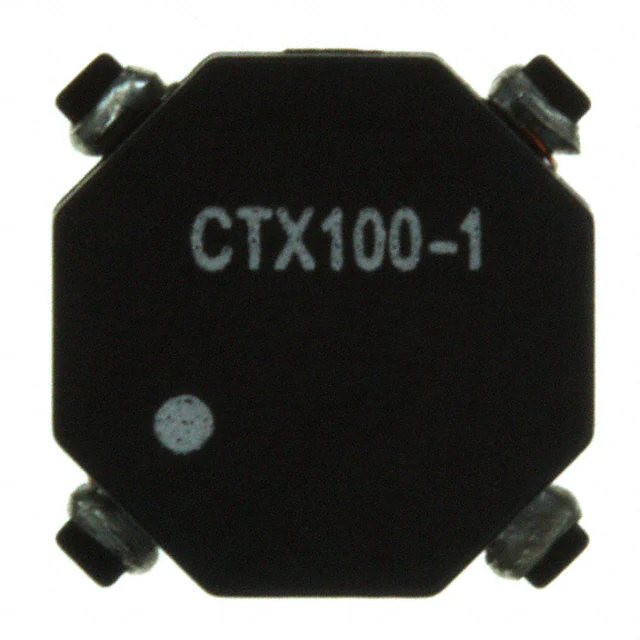

CTX100-1-RINDUCT ARRAY 2 COIL 99.23UH SMD |
1,362 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.23 µH | 396.9 µH | ±20% | 440 mA | 220 mA | - | - | 784mOhm Max | 3.137Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

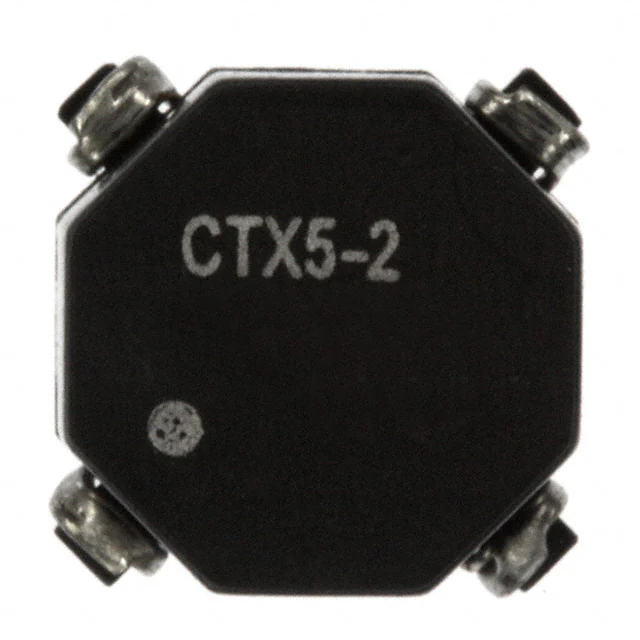

CTX5-2-RINDUCT ARRAY 2 COIL 4.7UH SMD |
565 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±20% | 3 A | 1.5 A | - | - | 21mOhm Max | 84mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|

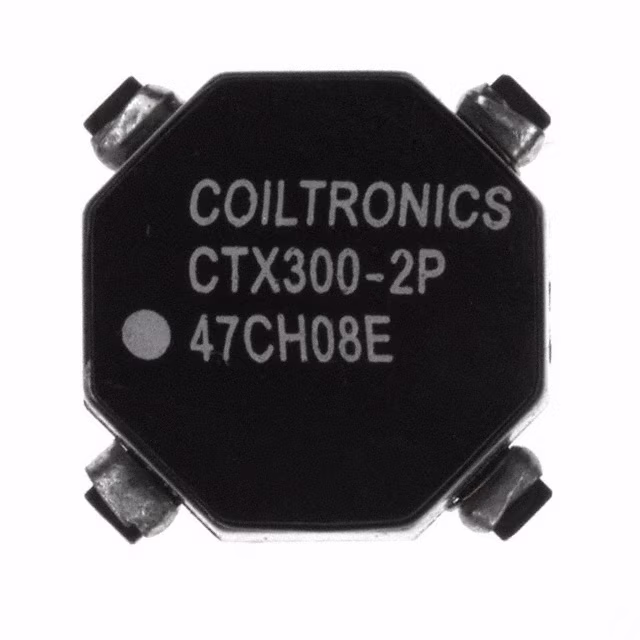

CTX300-2P-RINDUCT ARRAY 2 COIL 300.42UH SMD |
2,410 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 300.42 µH | 1.2 mH | ±20% | 420 mA | 210 mA | - | - | 1.176Ohm Max | 4.703Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX100-4A-RINDUCT ARRAY 2 COIL 100.57UH SMD |
900 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 100.57 µH | 402.3 µH | ±25% | 1.37 A | 690 mA | 1.32 A | 660 mA | 235mOhm Max | 939mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX20-4A-RINDUCT ARRAY 2 COIL 19.58UH SMD |
124 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.58 µH | 78.3 µH | ±25% | 3.62 A | 1.81 A | 3 A | 1.5 A | 34mOhm Max | 135mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX15-4A-RINDUCT ARRAY 2 COIL 14.7UH SMD |
894 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.7 µH | 58.81 µH | ±25% | 3.87 A | 1.94 A | 3.46 A | 1.73 A | 29mOhm Max | 117mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
