Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
744870003INDUCT ARRAY 2 COIL 3.3UH SMD |
406 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.65 µH | 6.6 µH | ±30% | 7.1 A | 3.55 A | 12 A | 6 A | 21mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
|
744873001INDUCT ARRAY 2 COIL 1.5UH SMD |
265 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 0.75 µH | 3 µH | ±30% | 6.25 A | 3.125 A | 18 A | 9 A | 15mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
B82477C6103M603INDUCT ARRAY 2 COIL 10UH SMD |
484 | - |
|
Datasheet | B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | 40 µH | ±20% | - | 5.65 A | 9.6 A | 4.8 A | 13.5mOhm Max | 54mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
B82477C6223M603INDUCT ARRAY 2 COIL 22UH SMD |
283 | - |
|
Datasheet | B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 22 µH | 88 µH | ±20% | - | 3.85 A | 6.4 A | 3.2 A | 24mOhm Max | 96mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
B82477C6472M603INDUCT ARRAY 2 COIL 4.7UH SMD |
251 | - |
|
Datasheet | B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | 18.8 µH | ±20% | - | 7.05 A | 15.3 A | 7.65 A | 9mOhm Max | 36mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
B82477C6153M603INDUCT ARRAY 2 COIL 15UH SMD |
465 | - |
|
Datasheet | B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | 60 µH | ±20% | - | 4.92 A | 8.3 A | 4.15 A | 17.5mOhm Max | 70mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
|
B82477C6333M603INDUCT ARRAY 2 COIL 33UH SMD |
315 | - |
|
Datasheet | B82477C6xxxM603 | Nonstandard | Tape & Reel (TR) | Active | 2 | 33 µH | 132 µH | ±20% | - | 3.3 A | 5.2 A | 2.6 A | 34.5mOhm Max | 138mOhm Max | Shielded | AEC-Q200 | -55°C ~ 150°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
P0396NLINDUCT ARRAY 2 COIL 3.5UH SMD |
945 | - |
|
Datasheet | Tomcat | Nonstandard | Tube | Active | 2 | 3.5 µH | 14 µH | ±20% | 11.2 A | 5.6 A | - | - | 6.54mOhm | 26.2mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
|
P0403NLINDUCT ARRAY 2 COIL 50.5UH SMD |
115 | - |
|
Datasheet | Tomcat | Nonstandard | Tube | Active | 2 | 50.5 µH | 202.2 µH | ±20% | 3 A | 1.5 A | - | - | 73.89mOhm | 295.6mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|

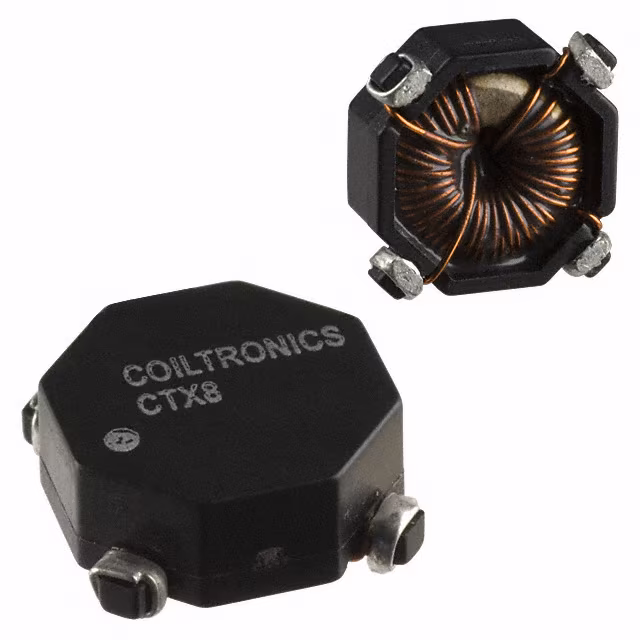

CTX8-1P-RINDUCT ARRAY 2 COIL 8.08UH SMD |
740 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.08 µH | 32.33 µH | ±20% | 1.8 A | 900 mA | - | - | 52mOhm Max | 207mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
7448991470SMT MOLDED COUPLED INDUCTOR SIZE |
1,446 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | - | ±20% | 1.5 A | - | 4.4 A | - | 340mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
7448991047SMT MOLDED COUPLED INDUCTOR SIZE |
769 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.7 µH | - | ±20% | 6.2 A | - | 13.8 A | - | 29mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
7448991033SMT MOLDED COUPLED INDUCTOR SIZE |
755 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.3 µH | - | ±20% | 6.8 A | - | 14.3 A | - | 23.5mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
7448991150SMT MOLDED COUPLED INDUCTOR SIZE |
651 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | - | ±20% | 3.25 A | - | 7.8 A | - | 95mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
7448991010SMT MOLDED COUPLED INDUCTOR SIZE |
350 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 µH | - | ±20% | 12 A | - | 30.2 A | - | 7.5mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.161" (4.10mm) |
|
P0598NLINDUCT ARRAY 2 COIL 3.9UH SMD |
368 | - |
|
Datasheet | HCCI-80 | Nonstandard | Tube | Active | 2 | 3.9 µH | 15.6 µH | ±15% | 34 A | 17 A | - | - | 1.6mOhm Max | 6.4mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
|
CTX20-1P-RINDUCT ARRAY 2 COIL 20.46UH SMD |
214 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.46 µH | 81.83 µH | ±20% | 1 A | 500 mA | - | - | 158mOhm Max | 634mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

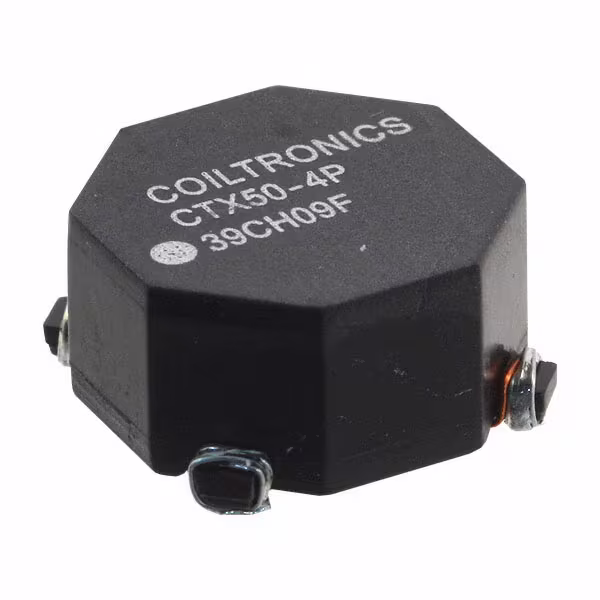

CTX50-4P-RINDUCT ARRAY 2 COIL 48.8UH SMD |
149 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 48.8 µH | 195.2 µH | ±20% | 1.2 A | 600 mA | - | - | 201mOhm Max | 805mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
7448990470INDUCT ARRAY 2 COIL 47UH SMD |
246 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | - | ±20% | 2.3 A | - | 6 A | - | 240mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
|
|
7448990150INDUCT ARRAY 2 COIL 15UH SMD |
140 | - |
|
Datasheet | WE-MCRI | Nonstandard | Tape & Reel (TR) | Active | 2 | 15 µH | - | ±20% | 3.9 A | - | 9.5 A | - | 87mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.453" L x 0.394" W (11.50mm x 10.00mm) | 0.354" (9.00mm) |
