Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX15-1-RINDUCT ARRAY 2 COIL 14.4UH SMD |
1,100 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.4 µH | 57.6 µH | ±20% | 1.1 A | 550 mA | - | - | 80mOhm Max | 319mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
CTX100-4P-RINDUCT ARRAY 2 COIL 99.09UH SMD |
637 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 99.09 µH | 396.38 µH | ±20% | 720 mA | 360 mA | - | - | 565mOhm Max | 2.259Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX2-4A-RINDUCT ARRAY 2 COIL 2.18UH SMD |
2,312 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.18 µH | 8.7 µH | ±25% | 8.38 A | 4.19 A | 9 A | 4.5 A | 6.3mOhm Max | 25.1mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX300-1P-RINDUCT ARRAY 2 COIL 299.87UH SMD |
1,025 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 299.87 µH | 1.199 mH | ±20% | 320 mA | 160 mA | - | - | 1.525Ohm Max | 6.1Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|

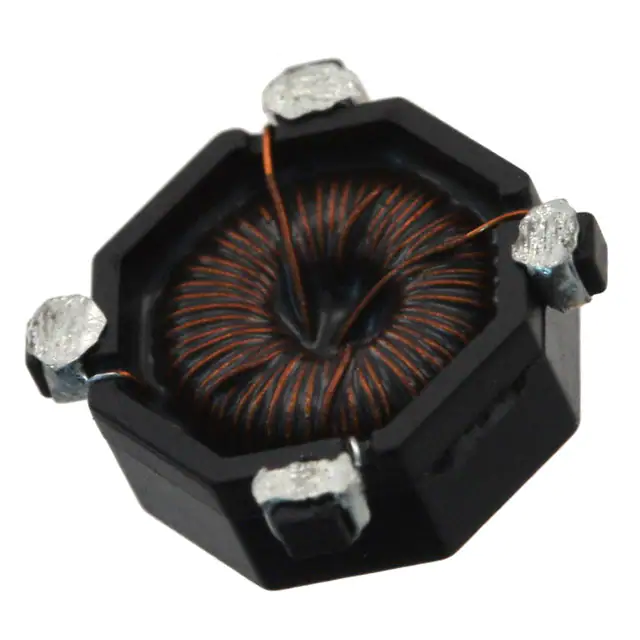

CTX20-1-RINDUCT ARRAY 2 COIL 19.6UH SMD |
1,678 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.6 µH | 78.4 µH | ±20% | 1 A | 500 mA | - | - | 146mOhm Max | 583mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
CTX5-4A-RINDUCT ARRAY 2 COIL 4.26UH SMD |
120 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.26 µH | 17.05 µH | ±25% | 7.21 A | 3.61 A | 6.43 A | 3.21 A | 8.5mOhm Max | 33.9mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX150-1-RINDUCT ARRAY 2 COIL 148.23UH SMD |
2,277 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 148.23 µH | 592.9 µH | ±20% | 380 mA | 190 mA | - | - | 965mOhm Max | 3.861Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
74485540350INDUCT ARRAY 2 COIL 3.5UH SMD |
474 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 3.5 µH | 14 µH | ±20% | 14 A | 7 A | 27 A | 13.5 A | 12mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
|
74485540290INDUCT ARRAY 2 COIL 2.9UH SMD |
244 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 2.9 µH | 11.6 µH | ±20% | 17 A | 8.5 A | 29 A | 14.5 A | 8.96mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|

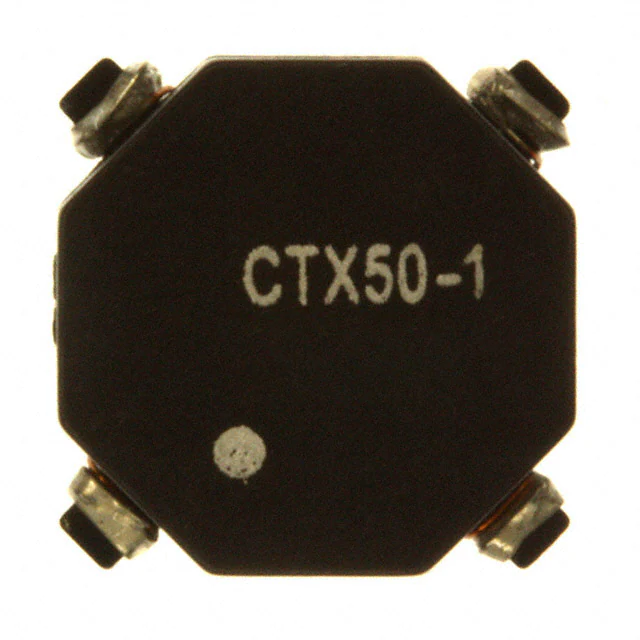

CTX50-1-RINDUCT ARRAY 2 COIL 50.63UH SMD |
865 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.63 µH | 202.5 µH | ±20% | 640 mA | 320 mA | - | - | 365mOhm Max | 1.461Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX300-2-RINDUCT ARRAY 2 COIL 300.8UH SMD |
720 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 300.8 µH | 1.2 mH | ±20% | 380 mA | 190 mA | - | - | 1.231Ohm Max | 4.929Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX50-2-RINDUCT ARRAY 2 COIL 51.18UH SMD |
460 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 51.18 µH | 204.73 µH | ±20% | 920 mA | 460 mA | - | - | 210mOhm Max | 839mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|

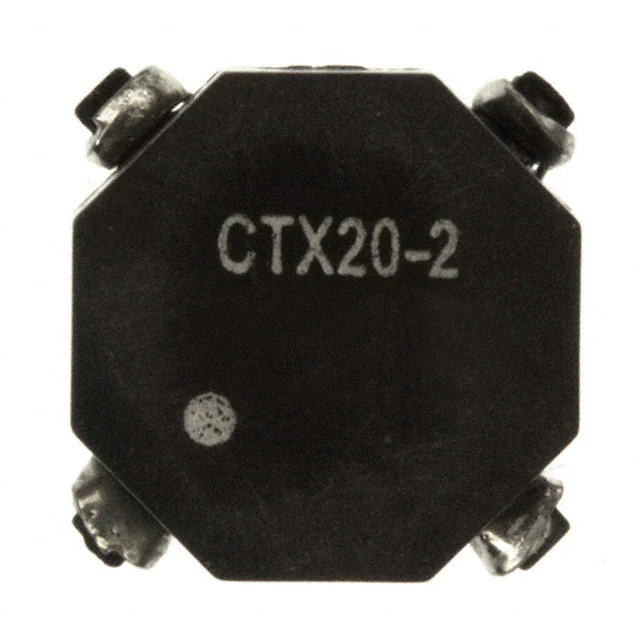

CTX20-2-RINDUCT ARRAY 2 COIL 20.73UH SMD |
1,188 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.73 µH | 82.91 µH | ±20% | 1.3 A | 650 mA | - | - | 107mOhm Max | 426mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX150-4A-RINDUCT ARRAY 2 COIL 153.5UH SMD |
600 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 153.5 µH | 613.9 µH | ±25% | 1.1 A | 550 mA | 1.07 A | 540 mA | 365mOhm Max | 1.462Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX200-1P-RINDUCT ARRAY 2 COIL 198.41UH SMD |
590 |
1+：$6.05000 10+：$5.46000 25+：$5.24000 50+：$5.07820 100+：$4.92060 250+：$4.71864 500+：$4.57060 |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 198.41 µH | 793.65 µH | ±20% | 360 mA | 180 mA | - | - | 1.208Ohm Max | 4.831Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
CTX300-4P-RINDUCT ARRAY 2 COIL 298.93UH SMD |
600 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 298.93 µH | 1.2 mH | ±20% | 540 mA | 270 mA | - | - | 1.003Ohm Max | 4.011Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|

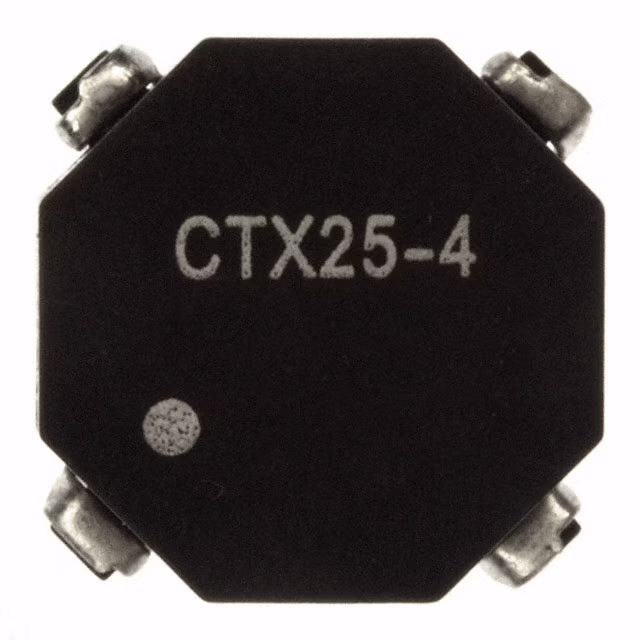

CTX25-4-RINDUCT ARRAY 2 COIL 25.92UH SMD |
693 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 25.92 µH | 103.68 µH | ±20% | 2 A | 1 A | - | - | 63mOhm Max | 253mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
CTX15-4-RINDUCT ARRAY 2 COIL 14.16UH SMD |
1,266 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.16 µH | 56.64 µH | ±20% | 3 A | 1.5 A | - | - | 24mOhm Max | 96mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
74485542820INDUCT ARRAY 2 COIL 8.2UH SMD |
142 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 8.2 µH | - | ±20% | 13 A | - | 24 A | - | 8.4mOhm | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.827" L x 0.728" W (21.00mm x 18.50mm) | 0.531" (13.50mm) |
|
|
74485542680INDUCT ARRAY 2 COIL 6.8UH SMD |
113 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 6.8 µH | - | ±20% | 13.5 A | - | 26 A | - | 6.1mOhm | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.827" L x 0.728" W (21.00mm x 18.50mm) | 0.531" (13.50mm) |
Arrays, Signal Transformers FAQ
What Arrays, Signal Transformers components can I source from EGOO?
You can browse available Arrays, Signal Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Arrays, Signal Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
