Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CL-12-24INDUCT ARRAY 2COIL 1.2MH CHA MNT |
3,698 | - |
|
Datasheet | CL | Nonstandard | Box | Active | 2 | 1.2 mH | 4.8 mH | - | 24 A | 12 A | - | - | 13mOhm | 52mOhm | Unshielded | - | - | Chassis Mount | 3.374" L x 3.563" W (85.70mm x 90.50mm) | 2.811" (71.40mm) |
|

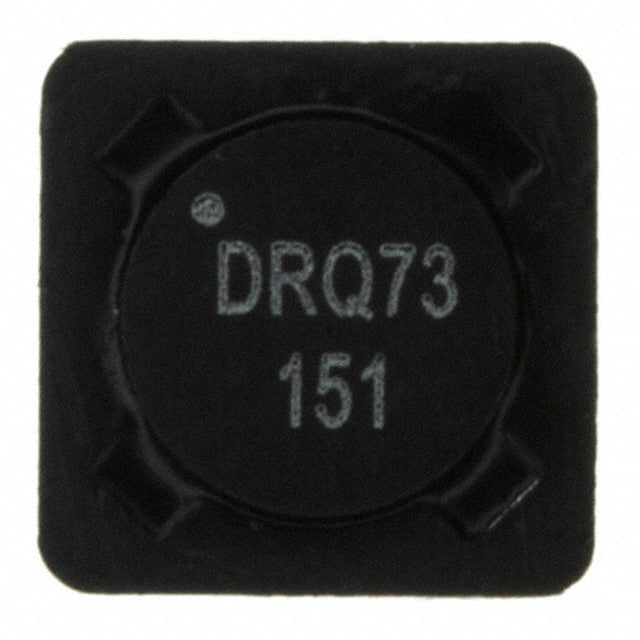

DRQ73-151-RINDUCT ARRAY 2 COIL 150.9UH SMD |
1,350 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 150.9 µH | 603.6 µH | ±20% | 580 mA | 289 mA | 650 mA | 320 mA | 851mOhm | 3.41Ohm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.140" (3.55mm) |
|
PF0552.334NLINDUCT ARRAY 2 COIL 340UH SMD |
1,490 | - |
|
Datasheet | PF0552NL | Nonstandard | Tray | Active | 2 | 340 µH | 1.3 mH | ±20% | 1.2 A | 610 mA | 1.2 A | 620 mA | 470mOhm Max | 1.9Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.472NLINDUCT ARRAY 2 COIL 5.3UH SMD |
1,417 | - |
|
Datasheet | PF0552NL | Nonstandard | Tray | Active | 2 | 5.3 µH | 21 µH | ±20% | 8.5 A | 4.3 A | 9.8 A | 4.9 A | 9.2mOhm Max | 37mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.103NLINDUCT ARRAY 2 COIL 9.7UH SMD |
1,485 | - |
|
Datasheet | PF0552NL | Nonstandard | Tray | Active | 2 | 9.7 µH | 39 µH | ±20% | 6 A | 3 A | 7.2 A | 3.6 A | 19mOhm Max | 73mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
SRF1260-R47YINDUCT ARRAY 2 COIL 470NH SMD |
750 | - |
|
Datasheet | SRF1260 | Nonstandard | Tape & Reel (TR) | Active | 2 | 470 nH | 1.88 µH | ±30% | 17.6 A | 8.8 A | 33 A | 16.5 A | 5.3mOhm Max | 21.2mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
SRF1260A-102MINDUCT ARRAY 2 COIL 1MH SMD |
1,333 | - |
|
Datasheet | SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 mH | 4 mH | ±20% | 570 mA | 283 mA | 700 mA | 350 mA | 1.854Ohm Max | 6.782Ohm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260A-101MINDUCT ARRAY 2 COIL 100UH SMD |
1,280 | - |
|
Datasheet | SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 100 µH | 400 µH | ±20% | 1.78 A | 892 mA | 2.2 A | 1.1 A | 171mOhm Max | 656mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
|
SRF1260A-680MINDUCT ARRAY 2 COIL 68UH SMD |
1,165 | - |
|
Datasheet | SRF1260A | Nonstandard | Tape & Reel (TR) | Active | 2 | 68 µH | 272 µH | ±20% | 2.22 A | 1.11 A | 2.7 A | 1.35 A | 117mOhm Max | 444mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.244" (6.20mm) |
|
SRF1280A-2R2YINDUCT ARRAY 2 COIL 2.2UH SMD |
912 | - |
|
Datasheet | SRF1280A | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±30% | 12.5 A | 6.23 A | 25.5 A | 12.7 A | 9.2mOhm Max | 33.8mOhm Max | Shielded | AEC-Q200 | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
DRQ74-8R2-RINDUCT ARRAY 2 COIL 8.566UH SMD |
637 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.566 µH | 34.26 µH | ±20% | 2.53 A | 1.27 A | 3.4 A | 1.7 A | 44.1mOhm | 177mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
PA3143AHLINDUCT ARRAY 3 COIL SMD |
830 | - |
|
Datasheet | PA314xAHL | 6-SMD, No Lead | Tray | Active | 3 | - | 150 nH | ±15% | - | 40 A | - | - | - | 0.3mOhm Max | Shielded | - | -40°C ~ 130°C | Surface Mount | 1.043" L x 0.413" W (26.50mm x 10.50mm) | 0.315" (8.00mm) |
|
|
PF0552.472NLTINDUCT ARRAY 2 COIL 5.3UH SMD |
1,984 | - |
|
Datasheet | PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 5.3 µH | 21 µH | ±20% | 8.5 A | 4.3 A | 9.8 A | 4.9 A | 9.2mOhm Max | 37mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
DRQ125-1R5-RINDUCT ARRAY 2 COIL 1.478UH SMD |
1,050 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.478 µH | 5.912 µH | ±20% | 13.8 A | 6.89 A | 18.3 A | 9.15 A | 2.9mOhm | 11.4mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
PF0553.333NLTINDUCT ARRAY 2 COIL 34UH SMD |
800 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 34 µH | 135 µH | ±20% | 3.2 A | 1.6 A | 6.2 A | 3.1 A | 59mOhm Max | 240mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PF0553.472NLTINDUCT ARRAY 2 COIL 4.8UH SMD |
790 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.8 µH | 19 µH | ±20% | 8.1 A | 4.1 A | 16 A | 8.2 A | 9.2mOhm Max | 37mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
76889440100INDUCTOR ARRAY 2 COIL 10UH SMD |
245 | - |
|
Datasheet | WE-TDC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 1.6 A | - | 3 A | - | 200mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.315" L x 0.315" W (8.00mm x 8.00mm) | 0.161" (4.10mm) |
|
744889030100INDUCT ARRAY 2 COIL 10UH SMD |
2,000 | - |
|
Datasheet | WE-MTCI | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 0.95 A | - | 1.5 A | - | 1.1Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
7448841033INDUCT ARRAY 2 COIL 3.3UH SMD |
2,000 | - |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.3 µH | - | ±30% | 1.9 A | - | 2.6 A | - | 120mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
7448841010INDUCT ARRAY 2 COIL 1UH SMD |
1,740 | - |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 µH | - | ±30% | 2.9 A | - | 5 A | - | 45mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
Arrays, Signal Transformers FAQ
What Arrays, Signal Transformers components can I source from EGOO?
You can browse available Arrays, Signal Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Arrays, Signal Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
