Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7448841100INDUCT ARRAY 2 COIL 10UH SMD |
7,768 | - |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 1.2 A | - | 1.5 A | - | 300mOhm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
|
7448841470INDUCT ARRAY 2 COIL 47UH SMD |
1,584 | - |
|
Datasheet | WE-DPC HV | Nonstandard | Tape & Reel (TR) | Active | 2 | 47 µH | - | ±20% | 600 mA | - | 700 mA | - | 1.2Ohm | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.122" (3.10mm) |
|
744870680INDUCT ARRAY 2 COIL 68UH SMD |
1,782 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 34 µH | 136 µH | ±20% | 1.35 A | 675 mA | 3 A | 1.5 A | 215mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.335" (8.50mm) |
|
CTX33-1P-RINDUCT ARRAY 2 COIL 32.33UH SMD |
3,187 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 32.33 µH | 129.32 µH | ±20% | 800 mA | 400 mA | - | - | 250mOhm Max | 1.001Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
|
7448709220INDUCT ARRAY 2 COIL 22UH SMD |
423 | - |
|
Datasheet | WE-DD | Nonstandard | Tape & Reel (TR) | Active | 2 | 11 µH | 44 µH | ±20% | 2.5 A | 1.25 A | 5 A | 2.5 A | 80mOhm Max | - | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.413" (10.50mm) |
|
CTX10-4P-RINDUCT ARRAY 2 COIL 9.88UH SMD |
5,108 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.88 µH | 39.53 µH | ±20% | 2.5 A | 1.25 A | - | - | 47mOhm Max | 187mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX10-3-RINDUCT ARRAY 2 COIL 9.6UH SMD |
13,643 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 9.6 µH | 38.4 µH | ±20% | 2.7 A | 1.35 A | - | - | 28mOhm Max | 111mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
74488540250INDUCT ARRAY 2 COIL 25UH SMD |
1,558 | - |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
|
74488540070INDUCT ARRAY 2 COIL 7.5UH SMD |
364 | - |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | ±20% | 1.9 A | - | - | - | - | - | Unshielded | - | -40°C ~ 125°C | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|
|
74488540120INDUCT ARRAY 2 COIL 13UH SMD |
287 | - |
|
Datasheet | WE-EHPI | Nonstandard | Tape & Reel (TR) | Active | 2 | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 0.236" L x 0.236" W (6.00mm x 6.00mm) | 0.161" (4.10mm) |
|

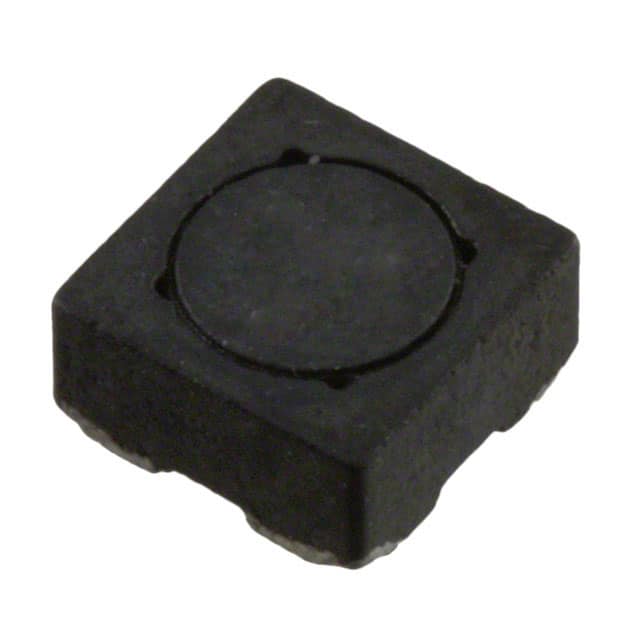

SDQ25-150-RINDUCT ARRAY 2 COIL 14.79UH SMD |
2,302 | - |
|
Datasheet | SDQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 14.79 µH | 59.17 µH | ±20% | 1.24 A | 619 mA | 1.05 A | 523 mA | 163.2mOhm | 652.6mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.205" L x 0.205" W (5.20mm x 5.20mm) | 0.098" (2.50mm) |
|
CTX20-2P-RINDUCT ARRAY 2 COIL 19.58UH SMD |
917 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 19.58 µH | 78.34 µH | ±20% | 1.5 A | 750 mA | - | - | 97mOhm Max | 387mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
74485540101INDUCT ARRAY 2 COIL 10UH SMD |
782 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 10 µH | - | ±20% | 13 A | - | 13.5 A | - | 13.9mOhm | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.492" (12.50mm) |
|
CTX20-4P-RINDUCT ARRAY 2 COIL 20.62UH SMD |
579 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 20.62 µH | 82.47 µH | ±20% | 1.9 A | 950 mA | - | - | 84mOhm Max | 337mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
CTX50-3P-RINDUCT ARRAY 2 COIL 50.02UH SMD |
1,788 | - |
|
Datasheet | Econo-Pac™ | Nonstandard | Tape & Reel (TR) | Active | 2 | 50.02 µH | 200.1 µH | ±20% | 920 mA | 460 mA | - | - | 277mOhm Max | 1.108Ohm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX5-1-RINDUCT ARRAY 2 COIL 4.9UH SMD |
1,179 | - |
|
Datasheet | OCTA-PAC® | Nonstandard | Tape & Reel (TR) | Active | 2 | 4.9 µH | 19.6 µH | ±20% | 2.3 A | 1.15 A | - | - | 30mOhm Max | 122mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.165" (4.19mm) |
|
74485540220INDUCT ARRAY 2 COIL 2.2UH SMD |
3,499 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±20% | 18 A | 9 A | 35 A | 17.5 A | 6.72mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
CTX33-4A-RINDUCT ARRAY 2 COIL 34.8UH SMD |
2,492 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Active | 2 | 34.8 µH | 139.2 µH | ±25% | 2.49 A | 1.25 A | 2.25 A | 1.13 A | 71mOhm Max | 283mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.250" (6.35mm) |
|
|
74485540170INDUCT ARRAY 2 COIL 1.7UH SMD |
303 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 1.7 µH | 6.8 µH | ±20% | 21 A | 10.5 A | 39 A | 19.5 A | 5.28mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
|
|
74485540440INDUCT ARRAY 2 COIL 4.4UH SMD |
300 | - |
|
Datasheet | WE-CFWI | 4-SMD | Tape & Reel (TR) | Active | 2 | 4.4 µH | 17.6 µH | ±20% | 12 A | 6 A | 24 A | 12 A | 15.36mOhm Max | - | Shielded | - | -40°C ~ 150°C | Surface Mount | 0.610" L x 0.520" W (15.50mm x 13.20mm) | 0.413" (10.50mm) |
Arrays, Signal Transformers FAQ
What Arrays, Signal Transformers components can I source from EGOO?
You can browse available Arrays, Signal Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Arrays, Signal Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
