Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX5-2A-RINDUCT ARRAY 2 COIL 5.06UH SMD |
4,874 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 5.06 µH | 20.22 µH | ±25% | 4.34 A | 2.17 A | 4.69 A | 2.34 A | 21mOhm Max | 84mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
|
CTX8-2A-RINDUCT ARRAY 2 COIL 7.9UH SMD |
1,602 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 7.9 µH | 31.6 µH | ±25% | 3.5 A | 1.75 A | 3.75 A | 1.88 A | 32mOhm Max | 129mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.235" (5.97mm) |
|
CTX10-3A-RINDUCT ARRAY 2 COIL 9.68UH SMD |
4,390 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 9.68 µH | 38.7 µH | ±25% | 3.64 A | 1.82 A | 3 A | 1.5 A | 32mOhm Max | 126mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX33-3A-RINDUCT ARRAY 2 COIL 33.71UH SMD |
4,145 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 33.71 µH | 134.8 µH | ±25% | 1.93 A | 960 mA | 1.61 A | 800 mA | 112mOhm Max | 449mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX50-3A-RINDUCT ARRAY 2 COIL 49.71UH SMD |
2,556 | - |
|
Datasheet | OCTA-PAC® PLUS | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 49.71 µH | 198.8 µH | ±25% | 1.56 A | 780 mA | 1.32 A | 660 mA | 171mOhm Max | 686mOhm Max | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.550" L x 0.550" W (13.97mm x 13.97mm) | 0.190" (4.83mm) |
|
CTX02-13665INDUCT ARRAY 2 COIL SMD |
3,347 | - |
|
Datasheet | OCTA-PAC® | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 2 | - | 1.254 mH | ±20% | - | - | - | - | - | - | Unshielded | - | -40°C ~ 85°C | Surface Mount | 0.634" L x 0.661" W (16.10mm x 16.80mm) | 0.291" (7.40mm) |
|
PF0553.682NLTINDUCT ARRAY 2 COIL 7.4UH SMD |
4,064 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 7.4 µH | 30 µH | ±20% | 7.2 A | 3.6 A | 13 A | 6.6 A | 12mOhm Max | 46mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
PF0552.222NLTINDUCT ARRAY 2 COIL 2.2UH SMD |
1,281 | - |
|
Datasheet | PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.2 µH | 8.8 µH | ±20% | 11.1 A | 5.6 A | 15 A | 7.5 A | 3.9mOhm Max | 16mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0553.471NLTINDUCT ARRAY 2 COIL 430NH SMD |
1,214 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 430 nH | 1.7 µH | ±20% | 17 A | 9 A | 56 A | 28 A | 1.6mOhm Max | 6.4mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

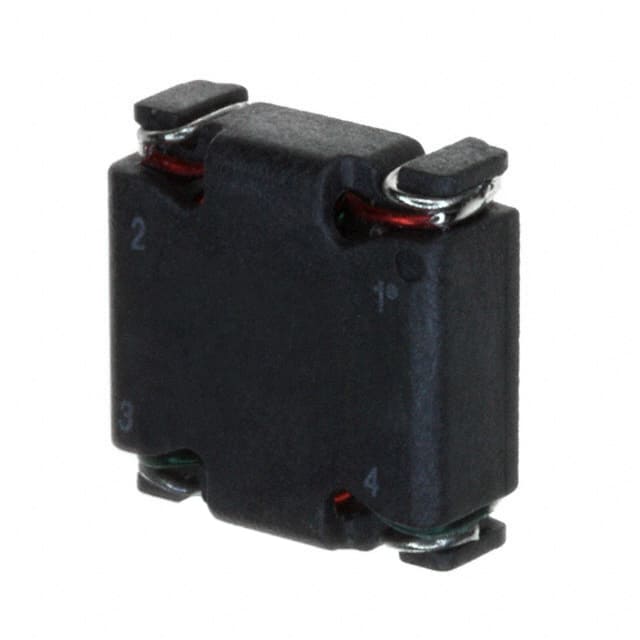

P0179NLTINDUCT ARRAY 2 COIL 22.1UH SMD |
1,228 | - |
|
Datasheet | Polecat | Nonstandard | Tape & Reel (TR) | Active | 2 | 22.1 µH | 88.2 µH | ±10% | 2.6 A | 1.3 A | - | - | 66.3mOhm Max | 266mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.500" L x 0.500" W (12.70mm x 12.70mm) | 0.215" (5.46mm) |
|
P0106NLINDUCT ARRAY 2 COIL 17.3UH SMD |
1,498 | - |
|
Datasheet | Polecat | 6-SMD, Gull Wing | Tube | Obsolete | 2 | 17.3 µH | 69.1 µH | ±20% | 800 mA | 400 mA | - | - | 180mOhm Max | 720mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.380" L x 0.430" W (9.65mm x 10.92mm) | 0.098" (2.49mm) |
|
|
PF0552.682NLTINDUCT ARRAY 2 COIL 6.6UH SMD |
2,808 | - |
|
Datasheet | PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 6.6 µH | 27 µH | ±20% | 7.3 A | 3.7 A | 8.8 A | 4.4 A | 12mOhm Max | 48mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.822NLTINDUCT ARRAY 2 COIL 8.1UH SMD |
4,546 | - |
|
Datasheet | PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.1 µH | 32 µH | ±20% | 6.5 A | 3.3 A | 7.8 A | 3.9 A | 18mOhm Max | 66mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.102NLTINDUCT ARRAY 2 COIL 910NH SMD |
1,304 | - |
|
Datasheet | PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 910 nH | 3.6 µH | ±20% | 12.9 A | 6.5 A | 24 A | 11.8 A | 2.4mOhm Max | 9.6mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.332NLTINDUCT ARRAY 2 COIL 3.1UH SMD |
3,886 | - |
|
Datasheet | PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 3.1 µH | 12 µH | ±20% | 10.1 A | 5 A | 12.8 A | 6.4 A | 5.8mOhm Max | 23mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.152NLTINDUCT ARRAY 2 COIL 1.5UH SMD |
2,517 | - |
|
Datasheet | PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 1.5 µH | 5.9 µH | ±20% | 12.4 A | 6.2 A | 18.4 A | 9.2 A | 2.9mOhm Max | 12mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.684NLTINDUCT ARRAY 2 COIL 680UH SMD |
3,928 | - |
|
Datasheet | PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 680 µH | 2.7 mH | ±20% | 810 mA | 400 mA | 860 mA | 430 mA | 1Ohm Max | 4.1Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.224NLTINDUCT ARRAY 2 COIL 220UH SMD |
3,090 | - |
|
Datasheet | PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 220 µH | 870 µH | ±20% | 1.4 A | 710 mA | 1.5 A | 760 mA | 350mOhm Max | 1.4Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|
|
PF0552.104NLTINDUCT ARRAY 2 COIL 100UH SMD |
2,666 | - |
|
Datasheet | PF0552NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 100 µH | 410 µH | ±20% | 2.2 A | 1.1 A | 2.2 A | 1.1 A | 160mOhm Max | 640mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.236" (6.00mm) |
|

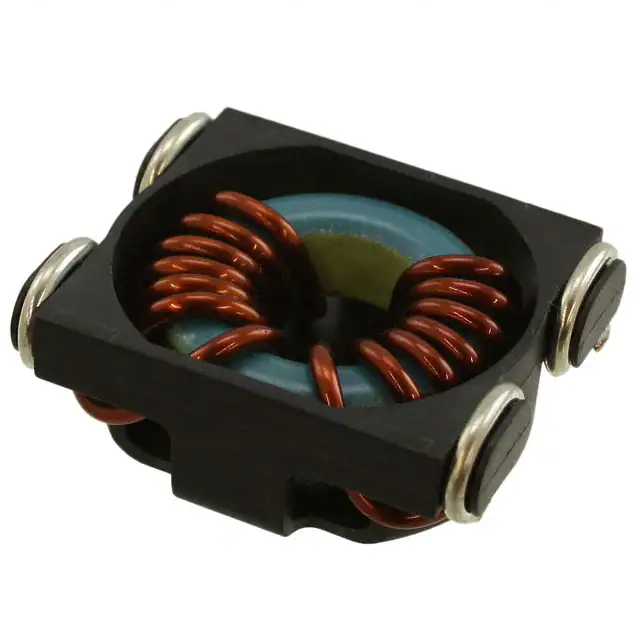

P0599NLTINDUCT ARRAY 2 COIL 2.1UH SMD |
3,061 | - |
|
Datasheet | HCCI-80 | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.1 µH | 8.4 µH | ±15% | 38 A | 19 A | - | - | 1.3mOhm Max | 5.1mOhm Max | Unshielded | - | -40°C ~ 130°C | Surface Mount | 1.220" L x 1.000" W (30.99mm x 25.40mm) | 0.500" (12.70mm) |
