Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PM620-04-RCINDUCT ARRAY 6 COIL 63.2UH SMD |
2,973 | - |
|
Datasheet | PM620 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 63.2 µH | 2.27 mH | ±20% | 9.24 A | 1.54 A | 720 mA | 120 mA | 11mOhm | 390mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.669" L x 0.843" W (17.00mm x 21.40mm) | 0.331" (8.40mm) |
|
|
PM620-08-RCINDUCT ARRAY 6 COIL 6.8UH SMD |
2,034 | - |
|
Datasheet | PM620 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 6.8 µH | 244.8 µH | ±10% | 9.24 A | 1.54 A | 6.6 A | 1.1 A | 11mOhm | 390mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.669" L x 0.843" W (17.00mm x 21.40mm) | 0.331" (8.40mm) |
|
|
PM620-10-RCINDUCT ARRAY 6 COIL 4.5UH SMD |
4,249 | - |
|
Datasheet | PM620 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 4.5 µH | 162 µH | ±10% | 9.24 A | 1.54 A | 9.6 A | 1.6 A | 11mOhm | 390mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.669" L x 0.843" W (17.00mm x 21.40mm) | 0.331" (8.40mm) |
|
|
PM620-11-RCINDUCT ARRAY 6 COIL 7.9UH SMD |
2,143 | - |
|
Datasheet | PM620 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 7.9 µH | 284.4 µH | ±10% | 7.68 A | 1.28 A | 8.4 A | 1.4 A | 16mOhm | 564mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.669" L x 0.843" W (17.00mm x 21.40mm) | 0.331" (8.40mm) |
|
|
7001-RCINDUCT ARRAY 2 COIL T/H |
4,971 | - |
|
Datasheet | 7000 | Radial, Vertical, 4 Leads | Bulk | Obsolete | 2 | - | 2.5 µH | ±15% | - | 11 A | - | - | - | 4mOhm Max | Unshielded | - | -55°C ~ 105°C | Through Hole | 0.875" L x 0.425" W (22.22mm x 10.80mm) | 1.000" (25.40mm) |
|
SDF-0.63-500INDUCT ARRAY 2 COIL T/H |
1,427 | - |
|
Datasheet | SD | Radial | Tray | Active | 2 | - | - | - | - | - | - | - | - | - | Unshielded | - | -40°C ~ 125°C | Through Hole | 0.689" L x 0.610" W (17.50mm x 15.50mm) | 0.433" (11.00mm) |
|
|
CMT4545-02MINDUCT ARRAY 2 COIL 870NH SMD |
3,221 | - |
|
Datasheet | CMT4545 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 870 nH | 3.5 µH | ±20% | 7.8 A | 3.9 A | - | - | 5mOhm | 20mOhm | Unshielded | - | - | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.250" (6.35mm) |
|
|
CMT4545-18MINDUCT ARRAY 2 COIL 27UH SMD |
2,824 | - |
|
Datasheet | CMT4545 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 27 µH | 105 µH | ±20% | 2.5 A | 1.2 A | - | - | 49mOhm | 196mOhm | Unshielded | - | - | Surface Mount | 0.594" L x 0.594" W (15.09mm x 15.09mm) | 0.250" (6.35mm) |
|
|
CMT4545-22MINDUCT ARRAY 2 COIL 50UH SMD |
3,458 | - |
|
Datasheet | CMT4545 | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | 50 µH | 208 µH | ±20% | 1.9 A | 940 mA | - | - | 86mOhm | 344mOhm | Unshielded | - | - | Surface Mount | 0.450" L x 0.450" W (11.43mm x 11.43mm) | 0.250" (6.35mm) |
|
IHCL4040DZER330M5AINDUCT ARRAY 2 COIL 33UH SMD |
3,818 | - |
|
Datasheet | IHCL | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.420" L x 0.400" W (10.67mm x 10.16mm) | 0.157" (4.00mm) |
|
|
IHCL4040DZER470M5AINDUCT ARRAY 2 COIL 47UH SMD |
3,716 | - |
|
Datasheet | IHCL | Nonstandard | Tape & Reel (TR) | Obsolete | 2 | - | - | ±20% | - | - | - | - | - | - | Shielded | AEC-Q200 | -55°C ~ 155°C | Surface Mount | 0.420" L x 0.400" W (10.67mm x 10.16mm) | 0.157" (4.00mm) |
|
|
PM600-08-RCFIXED IND 4.9UH 710MA 137MOHM SM |
2,125 | - |
|
Datasheet | PM600 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 4.9 µH | 176.4 µH | ±10% | 4.26 A | 710 mA | 3.48 A | 580 mA | 23mOhm | 822mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.500" L x 0.480" W (12.70mm x 12.20mm) | 0.244" (6.20mm) |
|
|
PA2493HLINDUCT ARRAY 3 COIL SMD |
2,481 | - |
|
Datasheet | PA249XHL | Nonstandard | Tray | Active | 3 | - | - | - | - | - | - | - | - | - | Unshielded | - | -40°C ~ 130°C | Surface Mount | 1.339" L x 0.433" W (34.00mm x 11.00mm) | 0.197" (5.00mm) |
|
PA2494HLINDUCT ARRAY 4 COIL SMD |
1,027 | - |
|
Datasheet | PA249HL | Nonstandard | Tray | Active | 4 | - | - | - | - | - | - | - | - | - | Shielded | - | -40°C ~ 130°C | Surface Mount | 0.925" L x 0.492" W (23.50mm x 12.50mm) | 0.197" (5.00mm) |
|
PA3144HLINDUCT ARRAY 4 COIL SMD |
4,696 | - |
|
Datasheet | PA314HL | 8-SMD, No Lead | Tray | Obsolete | 4 | - | - | - | - | - | - | - | - | - | Shielded | - | -40°C ~ 130°C | Surface Mount | 1.417" L x 0.433" W (36.00mm x 11.00mm) | 0.315" (8.00mm) |
|
PF0553.103NLINDUCT ARRAY 2 COIL 10.5UH SMD |
3,398 | - |
|
Datasheet | PF0553NL | Nonstandard | Tray | Active | 2 | 10.5 µH | 42 µH | ±20% | 6 A | 3 A | 11 A | 5.6 A | 17mOhm Max | 67mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.343" (8.71mm) |
|

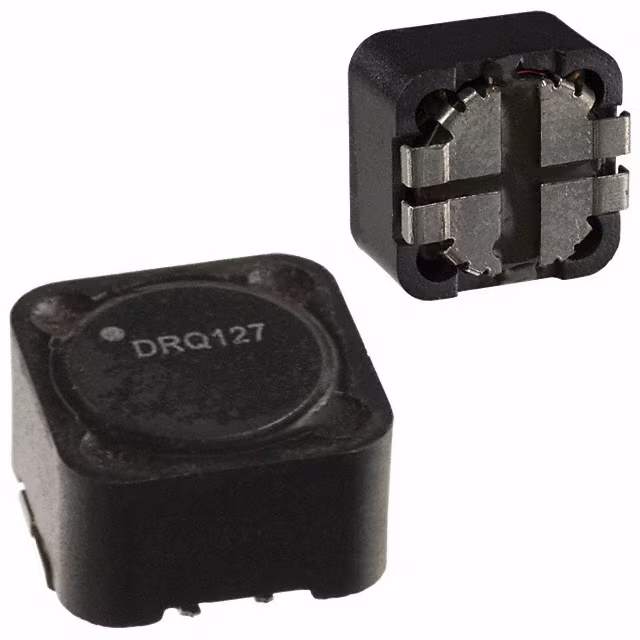

DRQ127-2R2-GINDUCT ARRAY 2 COIL 2.027UH SMD |
1,903 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.027 µH | 8.108 µH | ±20% | 12.5 A | 6.23 A | 25.5 A | 12.7 A | 3.73mOhm | 16.1mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

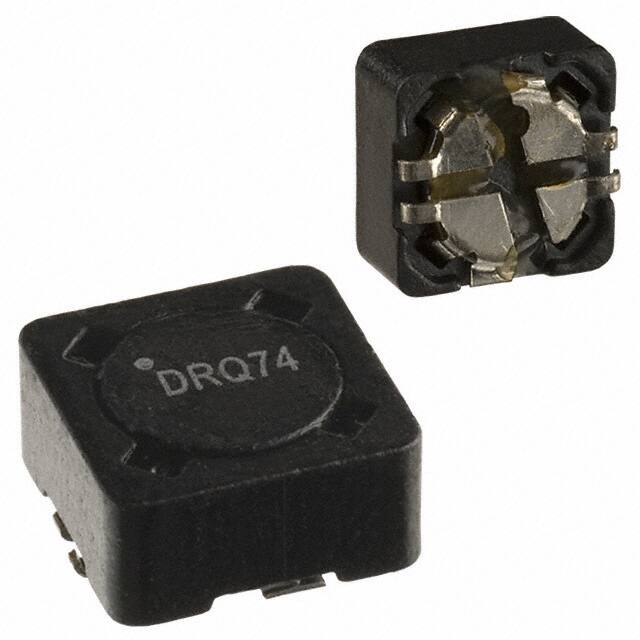

DRQ74-470-TRWINDUCT ARRAY 2 COIL 49.64UH SMD |
2,320 | - |
|
Datasheet | DRQ | Nonstandard | Tape & Reel (TR) | Active | 2 | 49.64 µH | 198.6 µH | ±20% | 1.15 A | 573 mA | 1.41 A | 710 mA | 216mOhm | 865mOhm | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.299" L x 0.299" W (7.60mm x 7.60mm) | 0.175" (4.45mm) |
|
|
IHCL4040DZEB2R7M5AINDUCT ARRAY 2 COIL 2.7UH SMD |
4,894 | - |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IHCL4040DZEB4R7M5AINDUCT ARRAY 2 COIL 4.7UH SMD |
4,509 | - |
|
Datasheet | - | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Arrays, Signal Transformers FAQ
What Arrays, Signal Transformers components can I source from EGOO?
You can browse available Arrays, Signal Transformers product families, manufacturers and part numbers on this page, then review stock, datasheets and technical information for suitable options.
Can EGOO help with hard-to-source or obsolete Arrays, Signal Transformers parts?
Yes. EGOO provides sourcing support for shortage, obsolete and hard-to-find electronic components. Send us the target manufacturer part number and quantity for checking.
Does EGOO support BOM and small-batch sourcing?
Yes. We support BOM sourcing, prototype requirements and small-batch supply, together with stock, lead-time and quotation assistance.
How do I request pricing and availability?
Submit the manufacturer part number, required quantity and any package, date-code or delivery requirements through the RFQ form, and our team will review available sourcing options.
