Arrays, Signal Transformers
Browse available Arrays, Signal Transformers components by manufacturer and part number. Review stock status, datasheets and key technical parameters to compare suitable options for design, maintenance, replacement or purchasing.
If you already have a target MPN or BOM, send it to EGOO with the required quantity. Our sourcing team can check availability, lead time and quotation options, including hard-to-find and obsolete parts.
| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Number of Coils | Inductance - Connected In Parallel | Inductance - Connected In Series | Tolerance | Current Rating - Parallel | Current Rating - Series | Current Saturation - Parallel | Current Saturation - Series | DC Resistance (DCR) - Parallel | DC Resistance (DCR) - Series | Shielding | Ratings | Operating Temperature | Mounting Type | Size / Dimension | Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF0553.334NLTINDUCT ARRAY 2 COIL 330UH SMD |
2,307 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 330 µH | 1.3 mH | ±20% | 1 A | 510 mA | 2 A | 1 A | 570mOhm Max | 2.3mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PF0553.105NLTINDUCT ARRAY 2 COIL 1MH SMD |
1,354 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 1 mH | 4 mH | ±20% | 610 mA | 310 mA | 1.1 A | 570 mA | 1.6Ohm Max | 6.5Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PF0553.332NLTINDUCT ARRAY 2 COIL 2.8UH SMD |
2,849 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 2.8 µH | 11.3 µH | ±20% | 10 A | 5.2 A | 21 A | 11 A | 5.4mOhm Max | 22mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PF0553.104NLTINDUCT ARRAY 2 COIL 100UH SMD |
1,183 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 100 µH | 400 µH | ±20% | 1.9 A | 970 mA | 3.6 A | 1.8 A | 160mOhm Max | 650mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PF0553.474NLTINDUCT ARRAY 2 COIL 470UH SMD |
4,367 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 470 µH | 1.9 mH | ±20% | 830 mA | 420 mA | 1.7 A | 840 mA | 860mOhm Max | 3.4Ohm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PF0553.154NLTINDUCT ARRAY 2 COIL 150UH SMD |
1,287 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 150 µH | 600 µH | ±20% | 1.6 A | 780 mA | 3 A | 1.5 A | 250mOhm Max | 990mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|

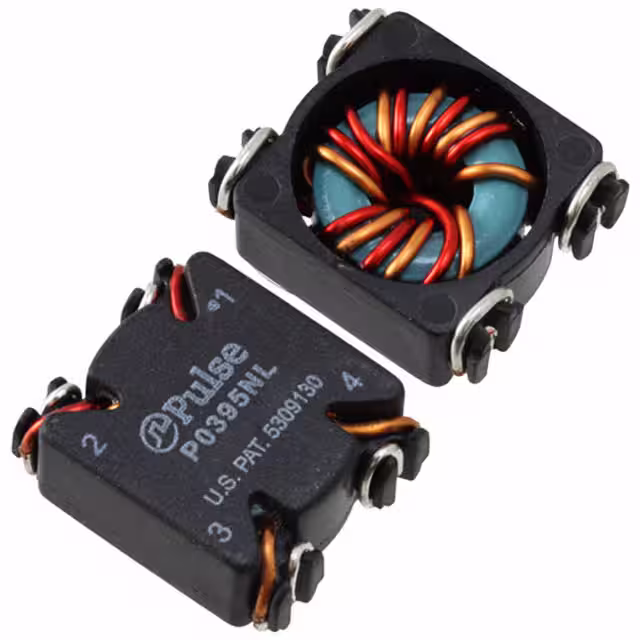

P0398NLTINDUCT ARRAY 2 COIL 7.9UH SMD |
4,336 | - |
|
Datasheet | Tomcat | Nonstandard | Tape & Reel (TR) | Active | 2 | 7.9 µH | 31.5 µH | ±20% | 6.8 A | 3.4 A | - | - | 14.94mOhm | 59.7mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
|
PF0553.822NLTINDUCT ARRAY 2 COIL 8.9UH SMD |
4,819 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 8.9 µH | 35 µH | ±20% | 6.2 A | 3.1 A | 12 A | 6.1 A | 15mOhm Max | 62mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
|
PF0553.823NLTINDUCT ARRAY 2 COIL 80UH SMD |
2,089 | - |
|
Datasheet | PF0553NL | Nonstandard | Tape & Reel (TR) | Active | 2 | 80 µH | 320 µH | ±20% | 2 A | 1 A | 4.1 A | 2 A | 140mOhm Max | 570mOhm Max | Shielded | - | -40°C ~ 125°C | Surface Mount | 0.492" L x 0.492" W (12.50mm x 12.50mm) | 0.315" (8.00mm) |
|
P0402INDUCT ARRAY 2 COIL 40.5UH SMD |
2,986 | - |
|
Datasheet | Tomcat | Nonstandard | Tube | Obsolete | 2 | 40.5 µH | 161.8 µH | ±20% | 3.54 A | 1.77 A | - | - | 53.21mOhm | 212.8mOhm | Unshielded | - | -40°C ~ 130°C | Surface Mount | 0.715" L x 0.590" W (18.16mm x 14.99mm) | 0.310" (7.87mm) |
|
PM600-01-RCINDUCT ARRAY 6 COIL 201.6UH SMD |
3,665 | - |
|
Datasheet | PM600 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 201.6 µH | 7.25 mH | ±30% | 2.76 A | 460 mA | 120 mA | 20 mA | 54mOhm | 1.944Ohm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.500" L x 0.480" W (12.70mm x 12.20mm) | 0.244" (6.20mm) |
|
|
PM600-02-RCINDUCT ARRAY 6 COIL 89.6UH SMD |
4,369 | - |
|
Datasheet | PM600 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 89.6 µH | 3.23 mH | ±30% | 4.26 A | 710 mA | 180 mA | 30 mA | 23mOhm | 822mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.500" L x 0.480" W (12.70mm x 12.20mm) | 0.244" (6.20mm) |
|
|
PM600-03-RCINDUCT ARRAY 6 COIL 27.4UH SMD |
1,849 | - |
|
Datasheet | PM600 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 27.4 µH | 986.4 µH | ±10% | 2.76 A | 460 mA | 1.86 A | 310 mA | 54mOhm | 1.944Ohm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.500" L x 0.480" W (12.70mm x 12.20mm) | 0.244" (6.20mm) |
|
|
PM600-04-RCINDUCT ARRAY 6 COIL 12.2UH SMD |
3,138 | - |
|
Datasheet | PM600 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 12.2 µH | 439.2 µH | ±10% | 4.26 A | 710 mA | 2.82 A | 470 mA | 23mOhm | 822mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.500" L x 0.480" W (12.70mm x 12.20mm) | 0.244" (6.20mm) |
|
|
PM600-10-RCINDUCT ARRAY 6 COIL 3.8UH SMD |
1,143 | - |
|
Datasheet | PM600 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 3.8 µH | 136.8 µH | ±10% | 4.26 A | 710 mA | 11.1 A | 1.85 A | 23mOhm | 822mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.500" L x 0.480" W (12.70mm x 12.20mm) | 0.244" (6.20mm) |
|
|
PM610-01-RCINDUCT ARRAY 6 COIL 160UH SMD |
0 | - |
|
Datasheet | PM610 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 160 µH | 5.76 mH | ±30% | 4.08 A | 680 mA | 240 mA | 40 mA | 34mOhm | 1.212Ohm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.591" L x 0.630" W (15.00mm x 16.00mm) | 0.307" (7.80mm) |
|
PM610-05-RCINDUCT ARRAY 6 COIL 11.6UH SMD |
0 | - |
|
Datasheet | PM610 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 11.6 µH | 417.6 µH | ±10% | 4.08 A | 680 mA | 7.8 A | 1.3 A | 34mOhm | 1.212Ohm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.591" L x 0.630" W (15.00mm x 16.00mm) | 0.307" (7.80mm) |
|
|
PM610-10-RCINDUCT ARRAY 6 COIL 3.2UH SMD |
0 | - |
|
Datasheet | PM610 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 3.2 µH | 115.2 µH | ±10% | 6 A | 1 A | 19.74 A | 3.29 A | 16mOhm | 564mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.591" L x 0.630" W (15.00mm x 16.00mm) | 0.307" (7.80mm) |
|
|
PM620-01-RCINDUCT ARRAY 6 COIL 160.6UH SMD |
2,139 | - |
|
Datasheet | PM620 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 160.6 µH | 5.78 mH | ±30% | 7.68 A | 1.28 A | 180 mA | 30 mA | 16mOhm | 564mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.669" L x 0.843" W (17.00mm x 21.40mm) | 0.331" (8.40mm) |
|
|
PM620-03-RCINDUCT ARRAY 6 COIL 131.8UH SMD |
1,278 | - |
|
Datasheet | PM620 | 12-SMD, Gull Wing | Tape & Reel (TR) | Obsolete | 6 | 131.8 µH | 4.74 mH | ±20% | 7.68 A | 1.28 A | 480 mA | 80 mA | 16mOhm | 564mOhm | Unshielded | - | -40°C ~ 105°C | Surface Mount | 0.669" L x 0.843" W (17.00mm x 21.40mm) | 0.331" (8.40mm) |
